神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (HC820-01-1) - VALVE ASSY, PILOT (PROPELLING) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
155 次

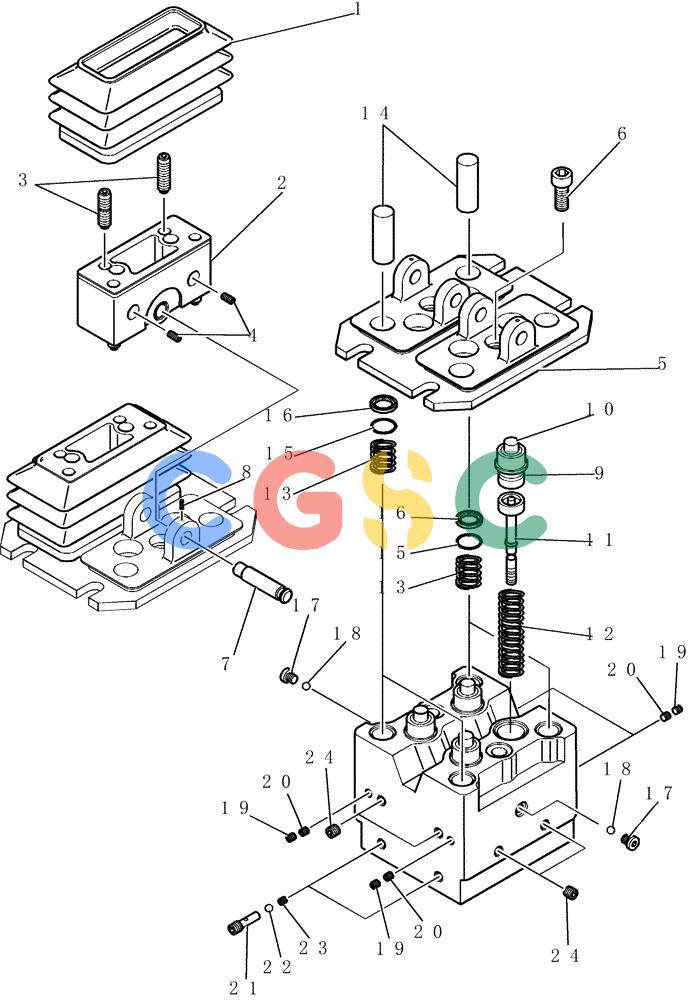

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN30V00105F1 | [1] | VALVE | KOBAssy, Pilot (propelling) Superseded by part number: YN30V00105F2 |
| 1. | YN30V00105S005 | [2] | COVER | SM |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONPlate |
| 3. | NSS | [2] | NOT SOLD SEPARAT | CONCapscrew |
| 4. | NSS | [2] | NOT SOLD SEPARAT | CONCapscrew |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONPlate |
| 6. | NSS | [2] | NOT SOLD SEPARAT | CONCapscrew |
| 7. | NSS | [2] | NOT SOLD SEPARAT | CONPin |
| 8. | NSS | [2] | NOT SOLD SEPARAT | CONCapscrew |
| 9. | NSS | [4] | NOT SOLD SEPARAT | CONPlug |
| 10. | NSS | [4] | NOT SOLD SEPARAT | CONRod, Push |
| 11. | YN30V00105S010 | [4] | ROD | SMSpool |
| 12. | NSS | [4] | NOT SOLD SEPARAT | CONSpring |
| 13. | NSS | [4] | NOT SOLD SEPARAT | CONSpring |
| 14. | NSS | [4] | NOT SOLD SEPARAT | CONRod |
| 15. | NSS | [6] | NOT SOLD SEPARAT | CONSeal |
| 16. | NSS | [6] | NOT SOLD SEPARAT | CONSeal |
| 17. | NSS | [2] | NOT SOLD SEPARAT | CONPlug |
| 18. | NSS | [2] | NOT SOLD SEPARAT | CONBall |
| 19. | NSS | [4] | NOT SOLD SEPARAT | CONPlug |
| 20. | NSS | [4] | NOT SOLD SEPARAT | CONOrifice |
| 21. | NSS | [3] | NOT SOLD SEPARAT | CONOrifice |
| 22. | NSS | [3] | NOT SOLD SEPARAT | CONBall |
| 23. | NSS | [3] | NOT SOLD SEPARAT | CONOrifice |
| 24. | NSS | [10] | NOT SOLD SEPARAT | CONPlug |
| . . | YN30V00105R100 | [1] | KIT | SMRepair Consists Of Ref. 2x1, 3x2, 4x2 |
| . . | YN30V00105R110 | [1] | KIT | SMRepair Consists Of Ref. 5x1, 6x2, 7x2, 8x2 |
| . . | YN30V00105R120 | [1] | KIT | SMRepair Consists Of Ref. 9x4, 10x4 |
| . . | YN30V00105R130 | [1] | KIT | SMRepair Consists Of Ref. 12x4 |
| . . | YN30V00105R140 | [1] | KIT | SMRepair Consists Of Ref. 13x4 |
| . . | YN30V00105R150 | [1] | KIT | SMRepair Consists Of Ref. 14x4, 15x6, 16x6 |
| . . | YN30V00105R160 | [1] | KIT | SMRepair Consists Of Ref. 17x2, 18x2 |
| . . | YN30V00105R170 | [1] | KIT | SMRepair Consists Of Ref. 19x4, 20x4 |
| . . | YN30V00105R180 | [1] | KIT | SMRepair Consists Of Ref. 21x3, 22x3, 23x3 |
