神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (HC800-01-1) - VALVE ASSY, PILOT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
344 次

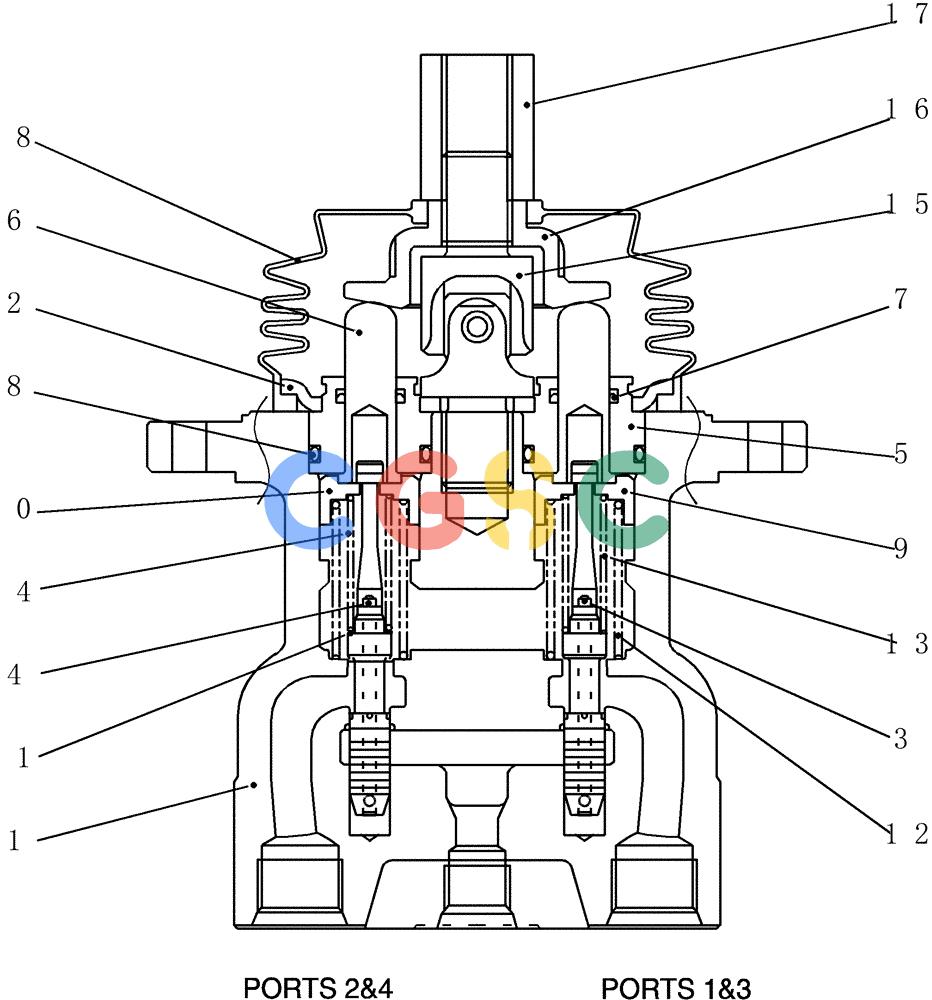

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN30V00111F1 | [1] | HYDRAULIC VALVE | SMAssy, Pilot |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONBody |
| 3. | NSS | [2] | NOT SOLD SEPARAT | CONSpool |
| 4. | NSS | [2] | NOT SOLD SEPARAT | CONSpool |
| 5. | 2436U1277S211 | [4] | PLUG | KOB |
| 6. | 2436U2938S212 | [4] | ROD | KOBRod |
| 7. | 2436U1277S213 | [4] | SEAL | KOBSeal |
| 8. | ZD12P02000 | [4] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOB |
| 9. | YT30V00008S216 | [2] | SEAT | KOBSpring |
| 10. | YT30V00008S10 | [2] | SEAT | KOB Superseded by part number: YT30V00008S010 |
| 11. | 2436U1277S217 | [4] | WASHER | KOB |
| 12. | PX30V00043S221 | [4] | SPRING | KOB |
| 13. | YN30V00069S241 | [2] | SPRING | KOB |
| 14. | YN30V00069S242 | [2] | SPRING | KOB |
| 15. | 2436U2581S301 | [1] | FLEXIBLE JOINT | KOB |
| 16. | YT30V00008S302 | [1] | PLATE | KOB |
| 17. | YT30V00008S312 | [1] | NUT | KOB |
| 18. | YT30V00008S501 | [1] | BOOT | KOBCover |
