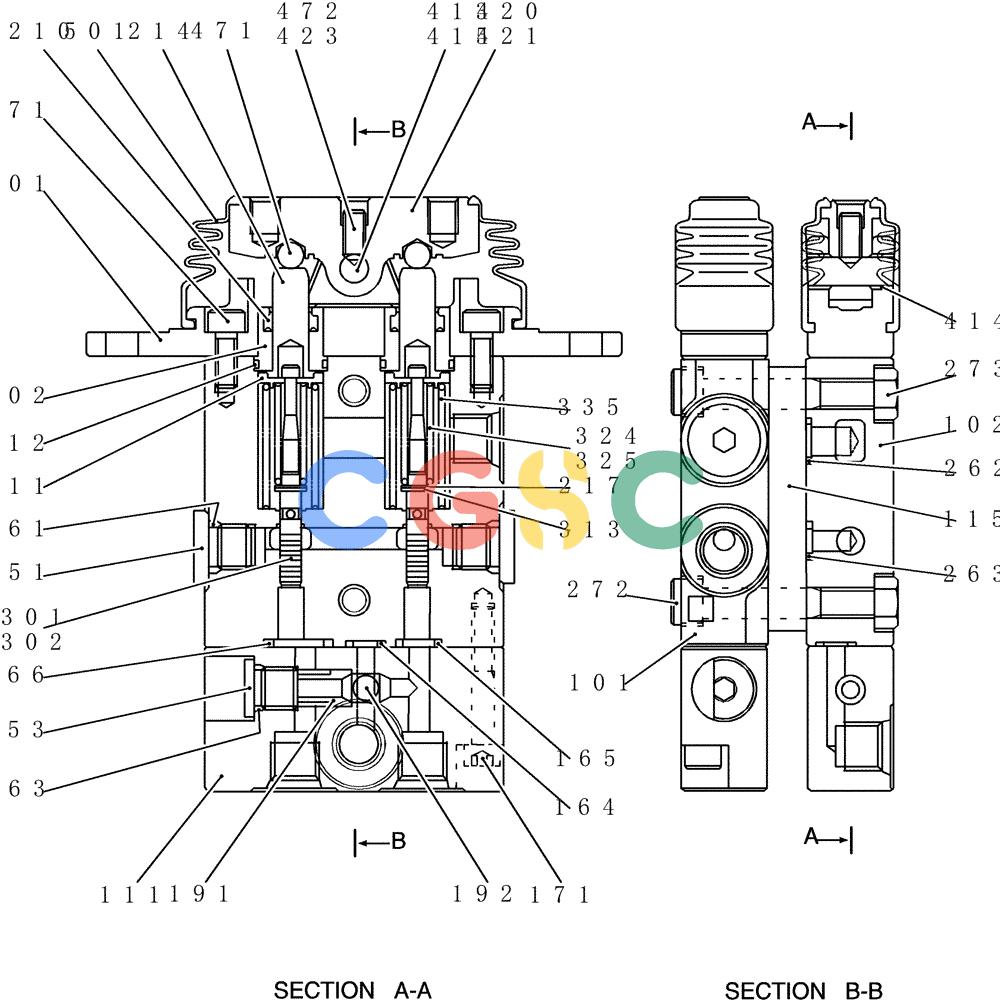

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (HC827-01-1) - VALVE ASSY, PILOT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
701 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT30V00031F1 | [1] | PILOT VALVE | KOBPilot |
| . . | YT30V00031F2 | [1] | PILOT VALVE | KOBPilot |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONCase |
| 102. | NSS | [1] | NOT SOLD SEPARAT | CONCase |
| 111. | YT30V00031S111 | [2] | | |
| 115. | EN30V00024S115 | [1] | | |
| 153. | NSS | [2] | NOT SOLD SEPARAT | CONPlug |
| 163. | NSS | [2] | NOT SOLD SEPARAT | CONO-Ring |
| 164. | NSS | [2] | NOT SOLD SEPARAT | CONO-Ring |
| 165. | NSS | [2] | NOT SOLD SEPARAT | CONO-Ring |
| 166. | NSS | [2] | NOT SOLD SEPARAT | CONO-Ring |
| 171. | NSS | [4] | NOT SOLD SEPARAT | CONCapscrew |
| 191. | YT30V00031S191 | [2] | | |
| 192. | NSS | [2] | NOT SOLD SEPARAT | CONBall |
| 201. | NSS | [2] | NOT SOLD SEPARAT | CONCover |
| 202. | NSS | [4] | NOT SOLD SEPARAT | CONPlug |
| 210. | NSS | [4] | NOT SOLD SEPARAT | CONPacking |
| 212. | NSS | [4] | NOT SOLD SEPARAT | CONO-Ring |
| 214. | NSS | [4] | NOT SOLD SEPARAT | CONRod, Push |
| 217. | NSS | [4] | NOT SOLD SEPARAT | CONShim |
| 251. | NSS | [4] | NOT SOLD SEPARAT | CONPlug |
| 261. | NSS | [4] | NOT SOLD SEPARAT | CONO-Ring |
| 262. | ZD12P01000 | [2] | O-RING | KOB |
| 263. | ZD12P00800 | [2] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOBID 7.8mm x OD 9.7mm |
| 271. | NSS | [4] | NOT SOLD SEPARAT | CONCapscrew |
| 272. | ZS23C08055 | [2] | CAPSCREW,Hex Socket Head, M8 x 55mm | KOBSCREW Cap |
| 273. | ZN18C08007 | [2] | NUT | KOBM08x1.25mm |
| 301. | NSS | [4] | NOT SOLD SEPARAT | CONSpool (F1 ONLY) |
| 302. | NSS | [4] | NOT SOLD SEPARAT | CONSpool (F2 ONLY) |
| 311. | NSS | [4] | NOT SOLD SEPARAT | CONSeat, Spring |
| 313. | NSS | [4] | NOT SOLD SEPARAT | CONWasher |
| 324. | NSS | [4] | NOT SOLD SEPARAT | CONSpring (F1 ONLY) |
| 325. | NSS | [4] | NOT SOLD SEPARAT | CONSpring (F2 ONLY) |
| 335. | NSS | [4] | NOT SOLD SEPARAT | CONSpring |
| 413. | NSS | [2] | NOT SOLD SEPARAT | CONShaft, Cam (F1 ONLY) |
| 414. | NSS | [4] | NOT SOLD SEPARAT | CONBushing |
| 415. | NSS | [2] | NOT SOLD SEPARAT | CONShaft, Cam (F2 ONLY) |
| 420. | NSS | [2] | NOT SOLD SEPARAT | CONCam (F1 ONLY) |
| 421. | NSS | [2] | NOT SOLD SEPARAT | CONCam (F2 ONLY) |
| 471. | NSS | [4] | NOT SOLD SEPARAT | CONBall |
| 472. | NSS | [2] | NOT SOLD SEPARAT | CONSetscrew (F1 ONLY) |
| 473. | NSS | [2] | NOT SOLD SEPARAT | CONSetscrew (F2 ONLY) |
| 501. | EN30V00024S501 | [2] | BOOT | KOB |
