神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (HC850-01-1) - VALVE ASSY, SOLENOID Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
452 次

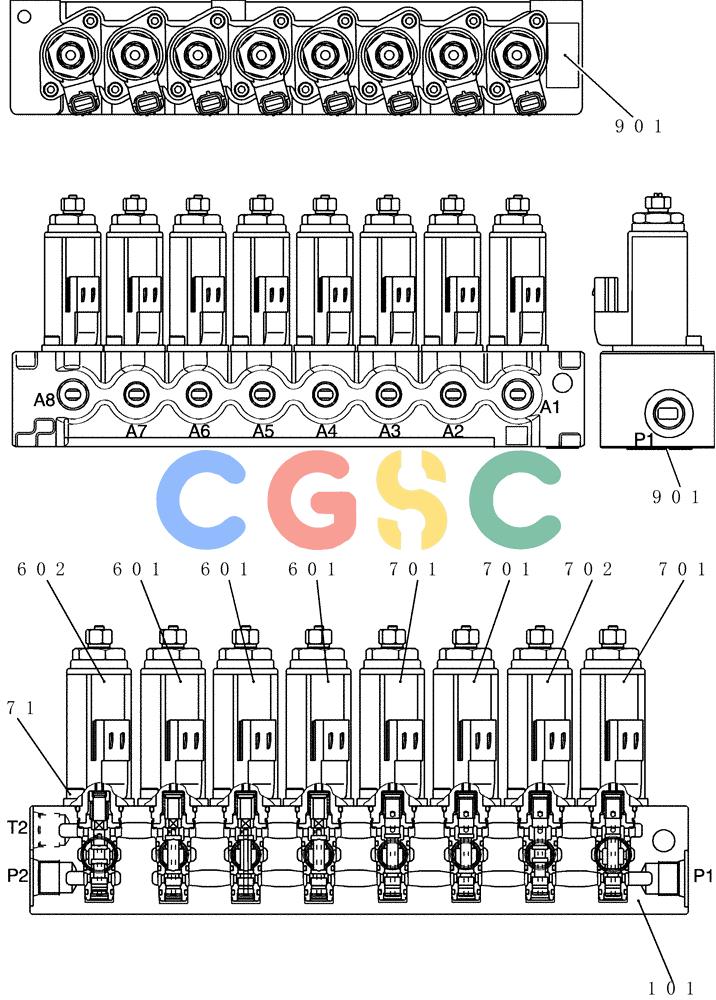

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN35V00047F1 | [1] | HYDRAULIC VALVE | SMValve Assy, Solenoid Superseded by part number: YN35V00047F3 |
| 101. | YN35V00047S101 | [1] | CASE | KOB |
| 171. | YN35V00047S171 | [16] | SCREW,Hex Socket Head, M5 x 12mm | SMCap Superseded by part number: ZS23C05012 |
| 601. | YN35V00048F1 | [3] | SOLENOID VALVE | KOBP1 Unload, P2 Unload, Travel Straight Solenoid (See HC851) |
| 602. | YN35V00049F1 | [1] | SOLENOID VALVE | KOBArm 2 Speed Solenoid ( See HC852) |
| 701. | YN35V00050F1 | [3] | SOLENOID VALVE,Cartridge W/Coil | KOBAttachment Boost, Travel 1, 2 Speed, Lever Lock Solenoid ( See HC853) Superseded by part number: YN35V00061F1 |
| 702. | YN35V00051F1 | [1] | SOLENOID VALVE | KOBSwing Parking Solenoid ( See HC854) |
| 901. | YY35V00007S901 | [1] | Name Plate | |
