神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (HC860-82-1) - VALVE ASSY SOLENOID Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
229 次

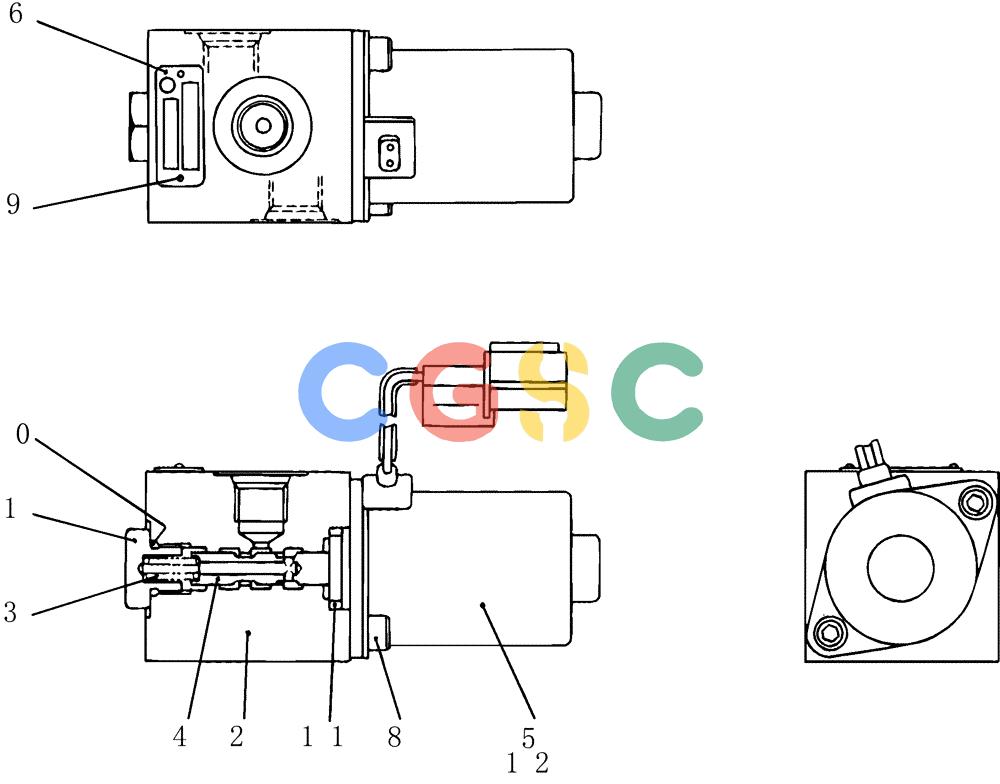

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LE35V00001F1 | [1] | VALVE | KOBAssy Solenoid |
| . . | LE35V00001F2 | [1] | VALVE | KOBAssy Solenoid |
| 2. | YN35V00010S002 | [1] | BODY | KOB |
| 3. | 2436U2802S3 | [2] | SPRING | KOB |
| 4. | EN35V00020S005 | [2] | SPOOL | KOB |
| 5. | YN35V00010S005 | [1] | SOLENOID VALVE | KOBAssy Solenoid (For F1 Only) |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONName Plate |
| 8. | EN35V00004S010 | [1] | BOLT | KOBBolt |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONScrew |
| 10. | ZD11P01000 | [1] | O-RING | KOB |
| 11. | ZD11P01600 | [1] | O-RING | KOB |
| 12. | EZ35V00004S015 | [1] | SOLENOID VALVE | KOBAssy Solenoid (For F2 Only) |
