神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (HC861-01-1) - VALVE ASSY, SOLENOID Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
481 次

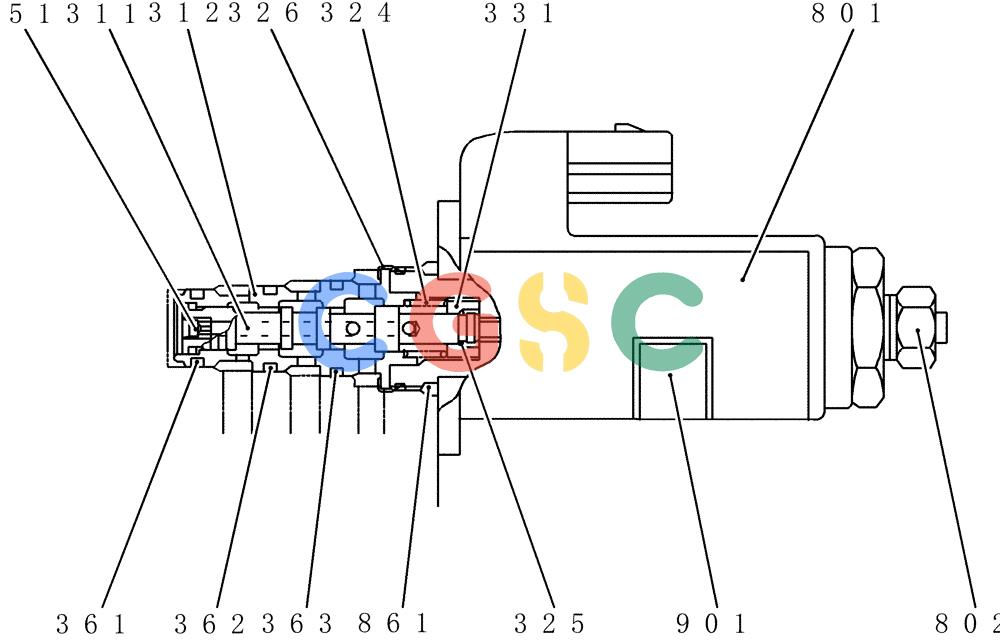

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LS35V00004F1 | [1] | VALVE | KOBAssy, Solenoid |
| 311. | NSS | [1] | NOT SOLD SEPARAT | CONSpool |
| 312. | NSS | [1] | NOT SOLD SEPARAT | CONSleeve |
| 324. | NSS | [1] | NOT SOLD SEPARAT | CONSpring |
| 325. | NSS | [1] | NOT SOLD SEPARAT | CONRing |
| 326. | NSS | [1] | NOT SOLD SEPARAT | CONRing |
| 331. | NSS | [1] | NOT SOLD SEPARAT | CONSeat, Spring |
| 351. | LS35V00004S351 | [1] | ORIFICE | KOB |
| 361. | YN35V00004S361 | [1] | O-RING | KOB |
| 362. | YN35V00004S362 | [1] | O-RING | KOB |
| 363. | YN35V00004S362 | [1] | O-RING | KOB |
| 801. | NSS | [1] | NOT SOLD SEPARAT | CONSolenoid |
| 802. | YN35V00018S802 | [1] | NUT | KOB |
| 861. | ZD12P02000 | [1] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOB |
| 901. | NSS | [1] | NOT SOLD SEPARAT | CONName Plate |
