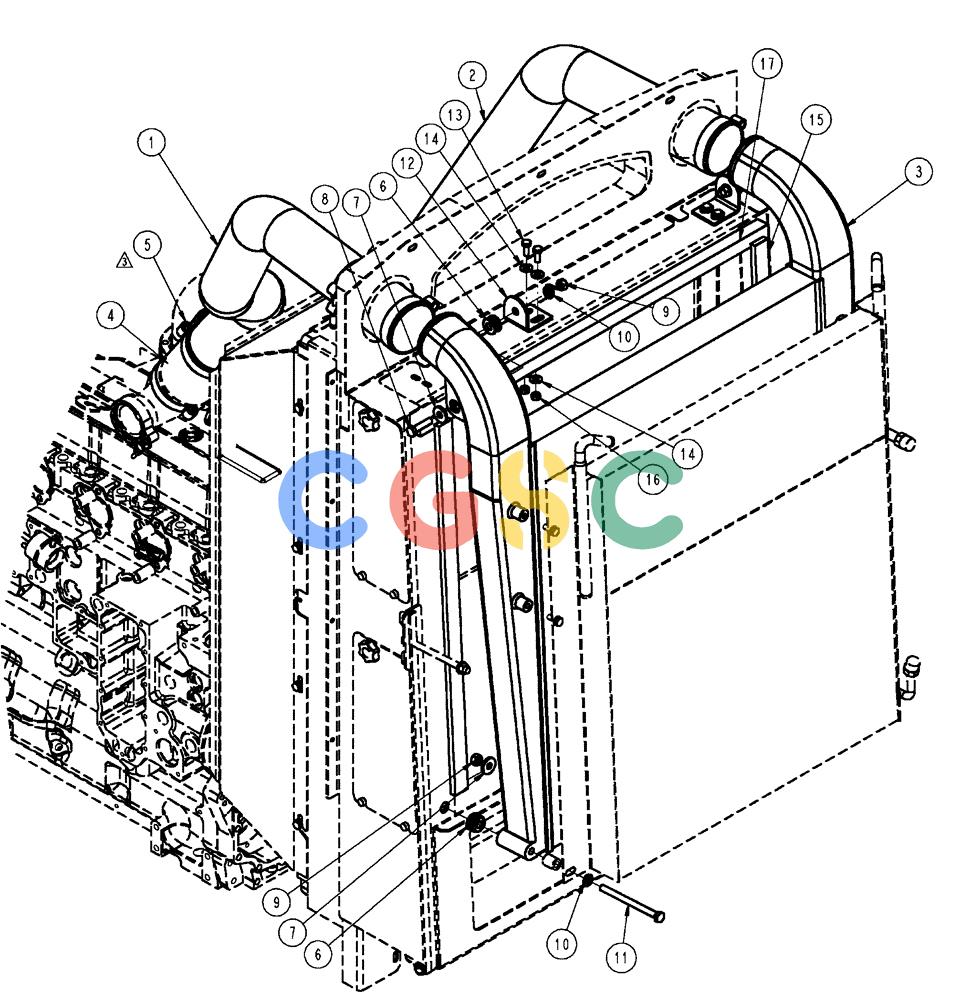

凯斯零件查询(FLX3010) - FLOATER (8/04-8/06) (02-014) - CHARGE AIR SYSTEM Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
360 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN323786
|
[1] |
TUBE
|
BN
CAC Pressure
|
| 2. |
BN323593
|
[1] |
TUBE
|
BN
CAC Return Tube
|
| 3. |
259332A4
|
[1] |
AFTERCOOLER
|
CAS
Charge Air
|
| 4. |
87271031
|
[4] |
INTAKE AIR HOSE,88.90 mm ID x 152.40
|
BN
|
| 5. |
87270795
|
[8] |
CLAMP
|
BN
T-Bolt 3.56" Spring
|
| 6. |
60-6650T1
|
[4] |
RUBBER BUSHING
|
L
Mount Superseded by part number: 86630020
|
| 7. |
86624186
|
[4] |
WASHER,0.41" ID x 1.12" OD x 0.13" Thk
|
FOR
|
| 8. |
120112
|
[2] |
BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd
|
NH
|
| 9. |
100037
|
[4] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 10. |
86639325
|
[4] |
WASHER,10.8mm ID x 24.5mm OD x 3mm Thk
|
FAR
|
| 11. |
86508575
|
[2] |
BOLT,Hex, M10 x 130mm, Cl 8.8
|
NH
|
| 12. |
BN324064
|
[2] |
ANGLE
|
BN
mount, top CAC
|
| 13. |
120104
|
[4] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 14. |
87015284
|
[8] |
WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk
|
WIC
|
| 15. |
336686A1
|
[2] |
SEAL
|
CAS
seal foam
|
| 16. |
86528579
|
[4] |
NUT,M8 x 1.25
|
WIN
|
| 17. |
336684A1
|
[1] |
SEAL
|
CAS
foam
|
