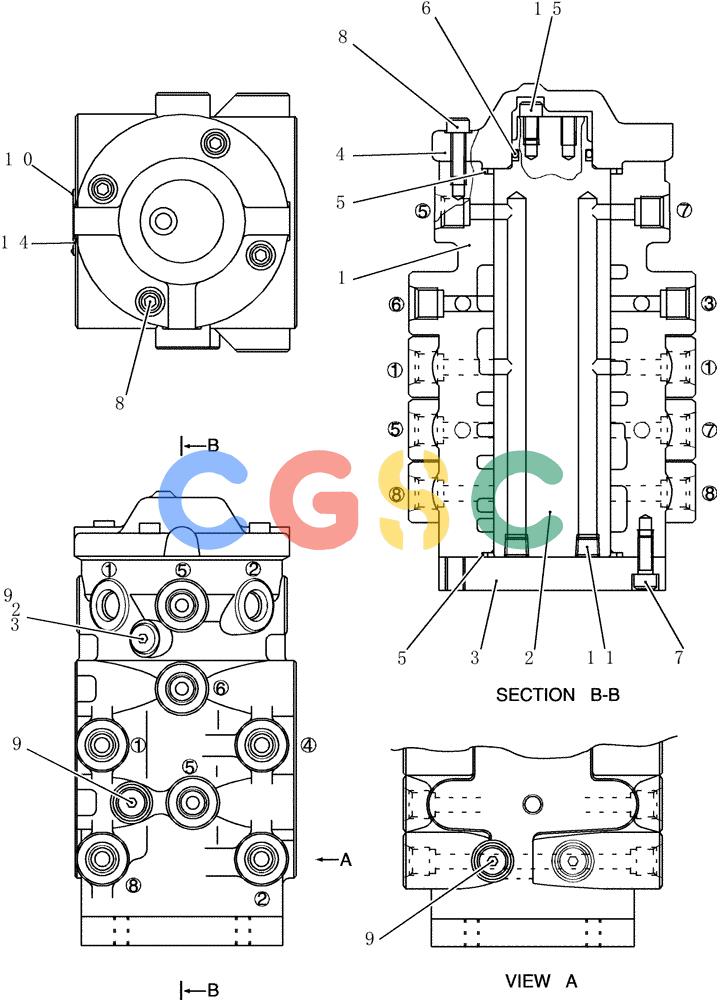

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (HC881-01-1) - VALVE ASSY, SELECTOR Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
786 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN30V00113F1 | [1] | VALVE | KOBAssy, Selector |
| 1. | YN30V01033P1 | [1] | HOUSING | KOB |
| 2. | YN30V01037P1 | [1] | | |
| 3. | YN30V01040P1 | [1] | COVER | KOB |
| 4. | YN30V01064P1 | [1] | COVER | KOB |
| 5. | ZD12G05500 | [2] | O-RING,3.1mm Thk x 54.4mm ID, 90 Duro | KOBO |
| 6. | ZD11P02800 | [1] | O-RING | KOB |
| 7. | ZS28C06016 | [4] | SCREW,Hex Socket Head, M6 x 16mm | KOBCap |
| 8. | ZS28C06020 | [4] | SCREW,Hex Socket Head, M6 x 20mm | KOBCap |
| 9. | YN30V01027P1 | [4] | PLUG | KOB |
| 10. | 2420Z1036D3 | [2] | CLEVIS | KOB |
| 11. | ZE82T02000 | [8] | PLUG | KOB |
| 12. | YN30V01015P1 | [1] | BALL | KOB |
| 13. | YN30V01028P1 | [1] | SPRING | KOB |
| 14. | YN22T00264P1 | [1] | Name Plate | |
| 15. | ZS23C06010 | [1] | SCREW,Hex Socket Head, M6 x 10mm | KOBCap |
