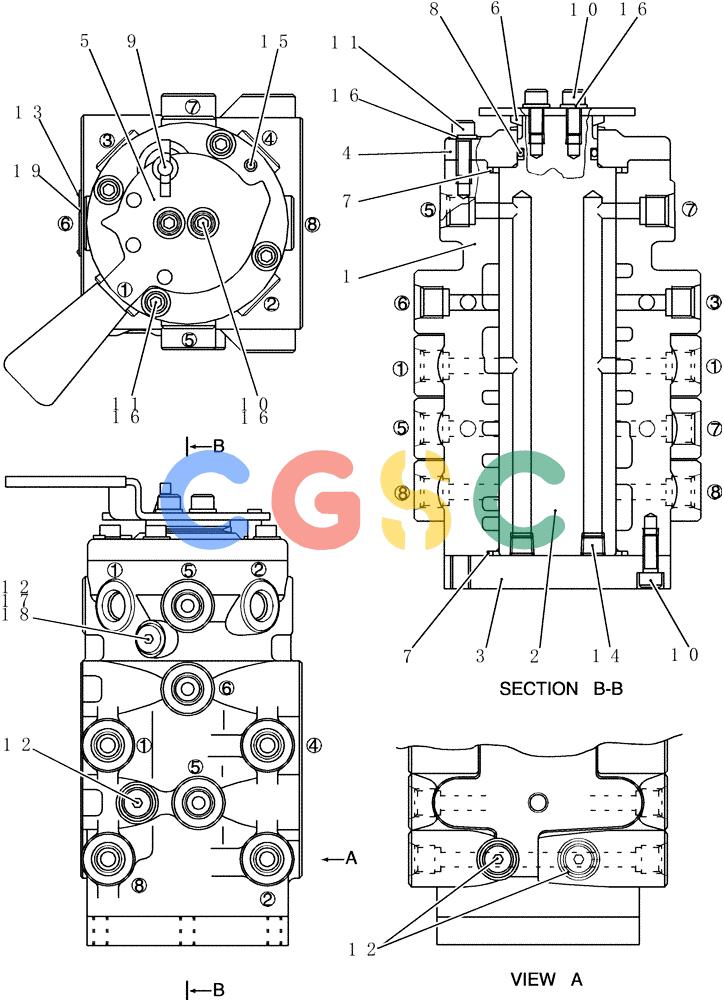

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (HC880-01-1) - VALVE ASSY, SELECTOR Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
664 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN30V00117F1 | [1] | VALVE | KOBAssy, Selector Superseded by part number: YN30V00117F2 |
| 2. | YN30V01037P1 | [1] | | |
| 3. | YN30V01040P1 | [1] | COVER | KOB |
| 4. | YN30V01057P1 | [1] | COVER | KOB |
| 5. | YN30V01059P1 | [1] | LEVER | KOB |
| 6. | YN30V01036P1 | [1] | SEAL | KOBDust |
| 7. | ZD12G05500 | [2] | O-RING,3.1mm Thk x 54.4mm ID, 90 Duro | KOBO |
| 8. | ZD11P02800 | [1] | O-RING | KOB |
| 9. | YN30V01039P1 | [1] | BOLT | KOB Superseded by part number: YN30V01074P1 |
| 10. | ZS28C06016 | [6] | SCREW,Hex Socket Head, M6 x 16mm | KOBCap |
| 11. | ZS28C06020 | [4] | SCREW,Hex Socket Head, M6 x 20mm | KOBCap |
| 12. | YN30V01027P1 | [4] | PLUG | KOB |
| 13. | 2420Z1036D3 | [2] | CLEVIS | KOB |
| 14. | ZE82T02000 | [8] | PLUG | KOB |
| 15. | ZP26D06020 | [1] | PIN | KOBSpring |
| 16. | ZW16X06000 | [6] | WASHER | KOB Superseded by part number: 86588450 |
| 17. | YN30V01015P1 | [1] | BALL | KOB |
| 18. | YN30V01028P1 | [1] | SPRING | KOB |
| 19. | YN22T00264P1 | [1] | Name Plate | |
