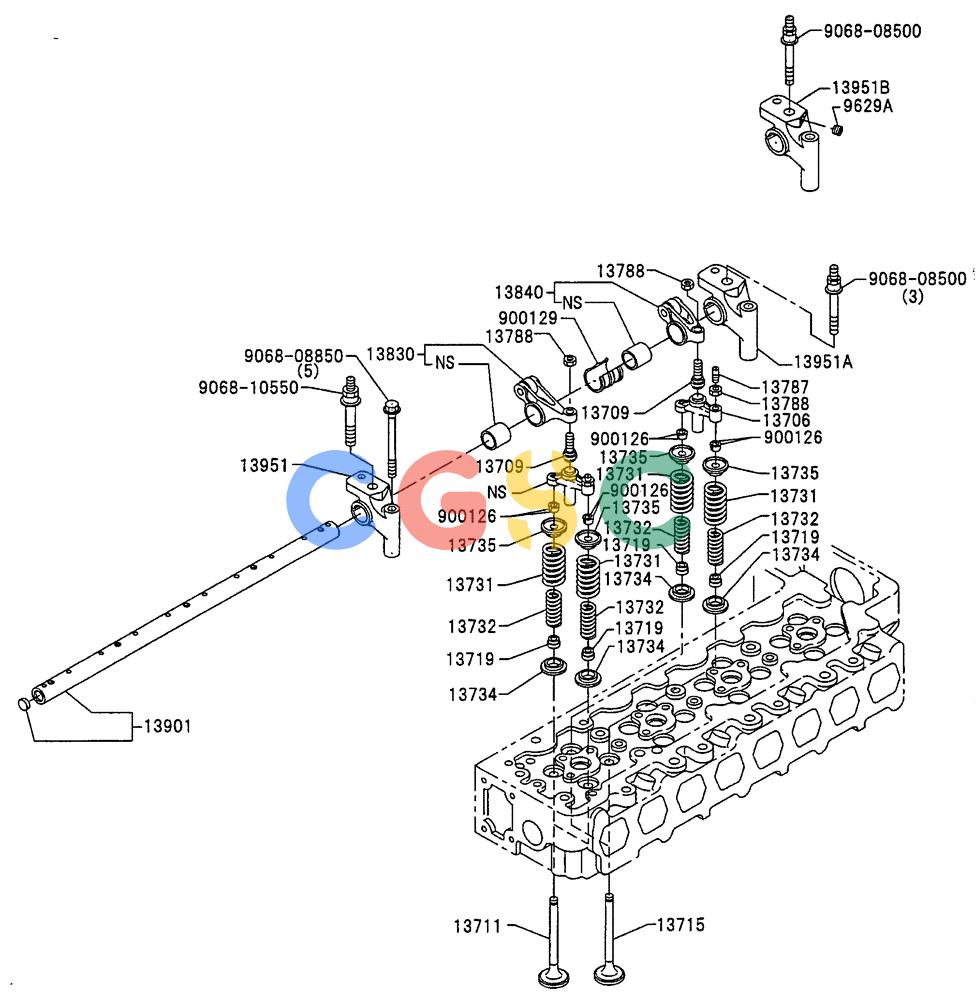

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (ENG-05-1) - VALVE SYSTEM Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
302 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 13706. | VH137061080A | [8] | CROSS | KOBHead Sub Assy Superseded by part number: VHS137061080 |
| 13709. | VH137091030A | [8] | SCREW | KOBSub Assy, Valve Adj Superseded by part number: VHS137091030 |
| 13711. | VH137111632A | [8] | VALVE | KOBIntake, Std Superseded by part number: VHS137111632 |
| 13715. | VH137151733A | [8] | VALVE | KOBExh, Std Superseded by part number: VHS137151733 |
| 13719. | VH137191470A | [16] | SEAL | KOBValve Stem Oil Superseded by part number: VHS137191470 |
| 13731. | VH137311610A | [16] | SPRING | KOBValve, Outer Superseded by part number: VHS137311610 |
| 13732. | VH137321500A | [16] | SPRING | KOBValve, Inner Superseded by part number: VHS137321500 |
| 13734. | VH137341280A | [16] | SEAT | KOBValve Spg, Lower Superseded by part number: VH13734E0020 |
| 13735. | VH137351470A | [16] | SEAT | KOBValve Spg, Upper Superseded by part number: VHS137351470 |
| 13787. | VH137871210A | [8] | SCREW | KOBValve Adj Superseded by part number: VHS137871210 |
| 13788. | VH137881030A | [16] | NUT | KOBValve Adj Screw Superseded by part number: VHS137881030 |
| 13830. | VH138301560A | [4] | ARM | KOBAssy, Valve Rocker Superseded by part number: VH13801E0070 |
| 13840. | VH138401430A | [4] | ARM | KOBAssy, Valve Rocker Exh Superseded by part number: VH13802E0010 |
| 13901. | VH139011410A | [1] | SHAFT | KOBValve Rocker Superseded by part number: VHS139011410 |
| 13951. | VH139512211A | [1] | SUPPORT | KOBValve Rocker Superseded by part number: VHS139512211 |
| 13951A. | VH139512221A | [3] | SUPPORT | KOBValve Rocker Superseded by part number: VHS139512221 |
| 13951B. | VH139512231A | [1] | SUPPORT | KOBValve Rocker Superseded by part number: VHS139512231 |
| 900126. | VH900126122A | [32] | LOCK | KOBValve Spring Retainer Superseded by part number: VHSZ91026013 |
| 900129. | VH900129267A | [4] | COLLAR | KOB Superseded by part number: VHSZ91029116 |
| 9068-08500. | VH906808500A | [4] | BOLT | KOBFlange Superseded by part number: VHSH55210850 |
| 9068-08850. | VH906808850A | [5] | FLANGE BOLT | KOBFlange Superseded by part number: VHSH55210885 |
| 9068-10550. | VH906810550A | [1] | BOLT | KOBFlange Superseded by part number: VHSH55211055 |
| 9629A. | VH962910117A | [1] | PLUG | KOB Superseded by part number: VHSZ34410003 |
