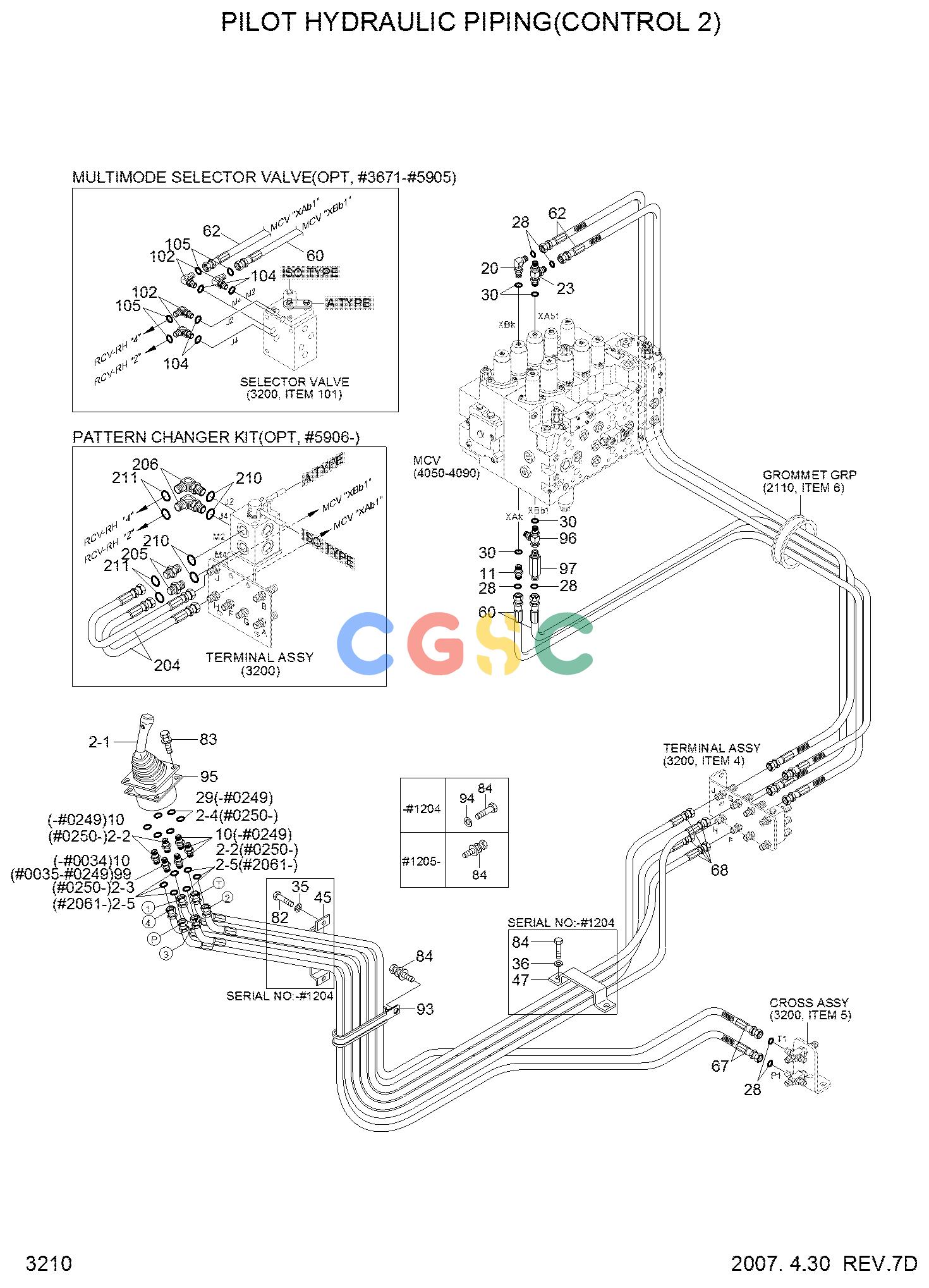

现代零件查询R210LC-7H(#9001-) PILOT HYDRAULIC PIPING(CONTROL 2)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
626 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2. |
31N6-25210
|
[1] |
RCV SUB ASSY-RH
|
|
| 2. |
31N6-26210
|
[1] |
RCV LEVER SUB ASSY-RH
|
|
| 2-1. |
@
|
[1] |
RCV LEVER-RH
|
|
| 2-2. |
X500-110001
|
[5] |
CONNECTOR
|
|
| 2-3. |
S631-011004
|
[6] |
O-RING
|
|
| 2-4. |
31N6-25060
|
[1] |
FILTER-LAST GUARD
|
|
| 2-5. |
S621-011001
|
[6] |
O-RING
|
|
| 11. |
X500-110013
|
[1] |
CONNECTOR-ORFS
|
|
| 20. |
X520-110012
|
[1] |
ELBOW-90,ORFS
|
|
| 23. |
X820-065104
|
[1] |
TEE-R/TYPE,ORFS
|
|
| 29. |
S631-014004
|
[4] |
O-RING
|
|
| 33. |
S621-011001
|
[12] |
O-RING
|
|
| 34. |
S621-012001
|
[3] |
O-RING
|
|
| 35. |
31M6-51061
|
[1] |
SHIM(3.2T)
|
|
| 44. |
31N6-22360
|
[1] |
VALVE-SHOCKLESS
|
|
| 47. |
X840-525151
|
[1] |
TEE-R/TYPE,SWIVEL,ORFS
|
|
| 60. |
X400-042024
|
[2] |
HOSE ASSY-SYNFLEX,ORFS
|
|
| 62. |
X400-042034
|
[2] |
HOSE ASSY-SYNFLEX,ORFS
|
|
| 67. |
X410-042028
|
[2] |
HOSE ASSY-ORFS 0X45
|
|
| 68. |
X410-042036
|
[4] |
HOSE ASSY-ORFS 0X45
|
|
| 77. |
31E7-0312
|
[1] |
CLAMP-HOSE
|
|
| 83. |
S035-062546
|
[4] |
HOSE
|
|
| 84. |
S037-102026
|
[1] |
BOLT-W/WASHER
|
|
