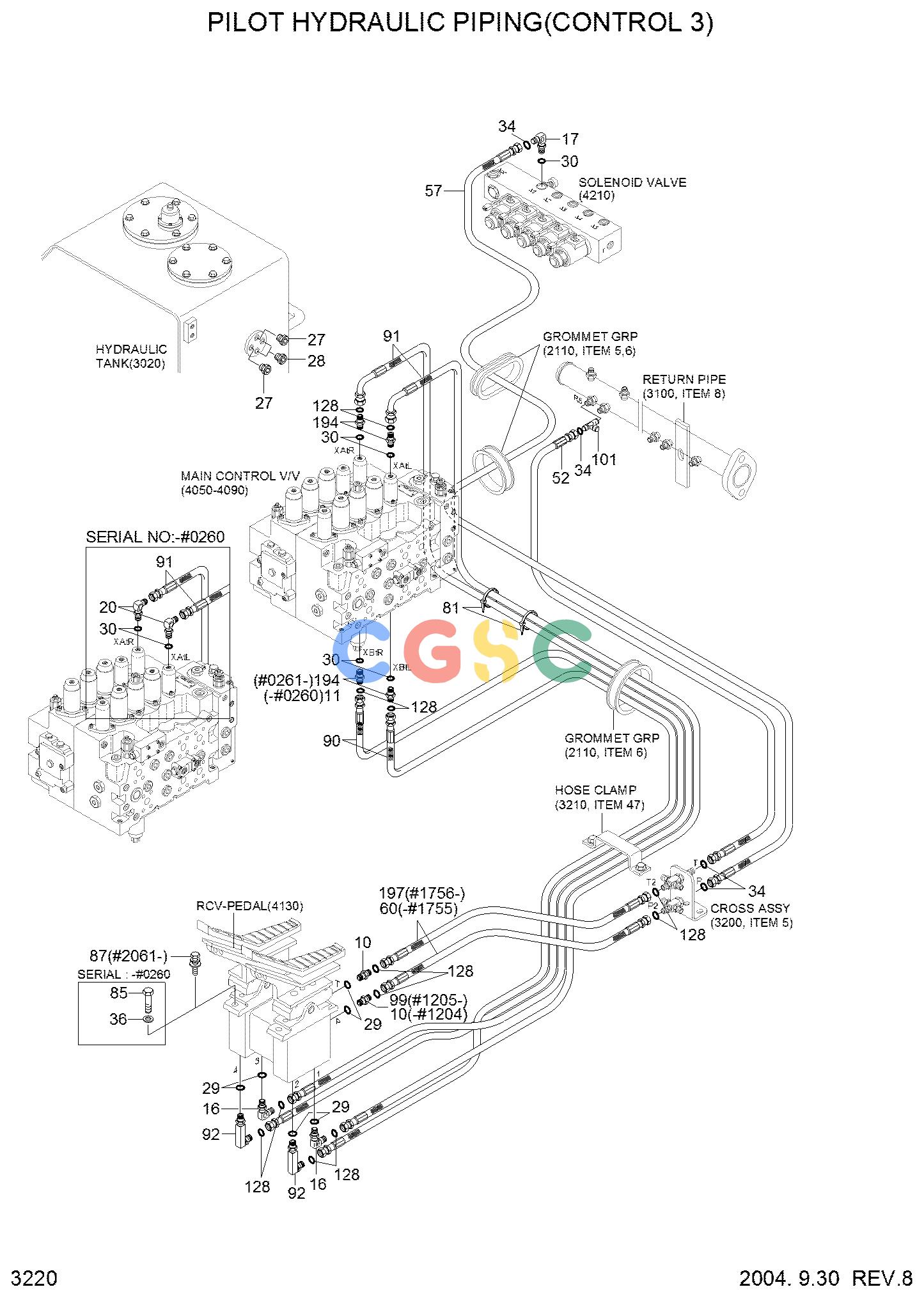

现代零件查询R210LC-7H(#9001-) PILOT HYDRAULIC PIPING(CONTROL 3)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
924 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
X500-110001
|
[1] |
CONNECTOR-ORFS
|
|
| 16. |
P020-110001
|
[2] |
ELBOW-90
|
|
| 16. |
X520-110001
|
[2] |
ELBOW-90,ORFS
|
|
| 17. |
X520-110002
|
[1] |
ELBOW-90,ORFS
|
|
| 28. |
S631-011004
|
[6] |
O-RING
|
|
| 29. |
S631-014004
|
[4] |
O-RING
|
|
| 33. |
S621-011001
|
[12] |
O-RING,ORFS
|
|
| 34. |
S621-012001
|
[4] |
O-RING,ORFS
|
|
| 52. |
X420-062042
|
[1] |
HOSE ASSY-SYNFLEX,ORFS
|
|
| 57. |
X400-062064
|
[1] |
HOSE ASSY-SYNFLEX,ORFS
|
|
| 80. |
31N6-25060
|
[1] |
FILTER-LAST GUARD
|
|
| 87. |
31N6-22340
|
[4] |
VALVE-SHOCKLESS
|
|
| 90. |
X400-042062
|
[2] |
HOSE ASSY-SYNFLEX,ORFS
|
|
| 91. |
X420-042072
|
[2] |
HOSE ASSY-SYNFLEX,ORFS
|
|
| 92. |
31N6-25110
|
[2] |
ELBOW-90,ORFS,LONG
|
|
| 93. |
S037-103026
|
[4] |
BOLT-W/WASHER
|
|
| 99. |
X400-042019
|
[2] |
HOSE ASSY-SYNFLEX,ORFS
|
|
