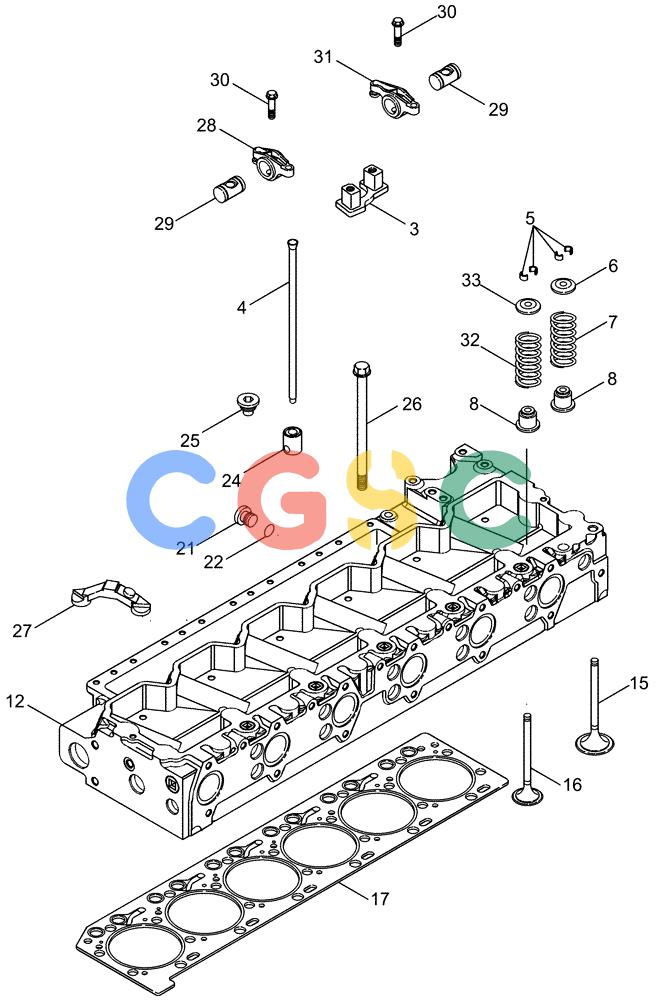

凯斯零件查询(FLX3020) - FLOATER (6/06-1/12) (02-09) - CYLINDER HEAD - VALVE MECHANISM Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
982 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
87397977
|
[1] |
KNIFE HEAD
|
CUR
HEAD ASSY With Valves, Inc. 5 - 8, 12, 15, 16, 32, 33 Superseded by part number: 84283167R
|
| 3. |
J941140
|
[6] |
SUPPORT
|
CAS
|
| 4. |
87435955
|
[12] |
PUSH ROD
|
CAS
|
| 5. |
J900250
|
[48] |
SCREW
|
CAS
Collet Superseded by part number: CASJ900250
|
| 6. |
J944452
|
[12] |
RETAINER
|
CAS
Valve Spring
|
| 7. |
J944711
|
[12] |
VALVE SPRING
|
CAS
Intake Valve Superseded by part number: 87666321
|
| 8. |
87352235
|
[12] |
SEAL
|
CAS
|
| 8. |
J943888
|
[12] |
SEAL
|
CAS
Superseded by part number: 87352235
|
| 12. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
HEAD ASSY, Stripped
|
| 15. |
87343688
|
[12] |
STD INLET VALVE
|
CAS
STD ENGINE INLET VALVE Inlet
|
| 16. |
87343693
|
[12] |
STD EXHAUST VALVE
|
CAS
STD ENGINE EXHAUST VALVE Exhaust
|
| 17. |
87344132
|
[1] |
CYLINDER HEAD GASKET
|
CAS
Superseded by part number: 87737237
|
| 21. |
J678923
|
[1] |
PLUG,M10 x 1
|
CAS
10 mm, Inc. 22
|
| 22. |
637-72081
|
[1] |
O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro
|
CAS
Superseded by part number: 86625087
|
| 24. |
87435851
|
[12] |
TAPPET
|
CAS
|
| 25. |
87435854
|
[12] |
GUIDE
|
CAS
Superseded by part number: 87644763
|
| 26. |
87344126
|
[26] |
BOLT
|
CAS
M14 x 160
|
| 27. |
J943445
|
[12] |
CROSSBAR
|
CAS
|
| 28. |
87435953
|
[6] |
ROCKER ARM
|
CAS
Superseded by part number: 84282647AM
|
| 29. |
87435951
|
[6] |
SHAFT
|
CAS
|
| 30. |
J943933
|
[12] |
SCREW,Hex Flg, M10 x 1.5 x 68mm, Cl 10.9
|
CAS
Superseded by part number: J943933AM
|
| 31. |
87435952
|
[6] |
ROCKER ARM
|
CAS
Superseded by part number: 84286199AM
|
| 32. |
87351063
|
[12] |
VALVE SPRING
|
CAS
Exhaust Superseded by part number: 87666324
|
| 33. |
87351062
|
[12] |
VALVE
|
CAS
Rotator
|
