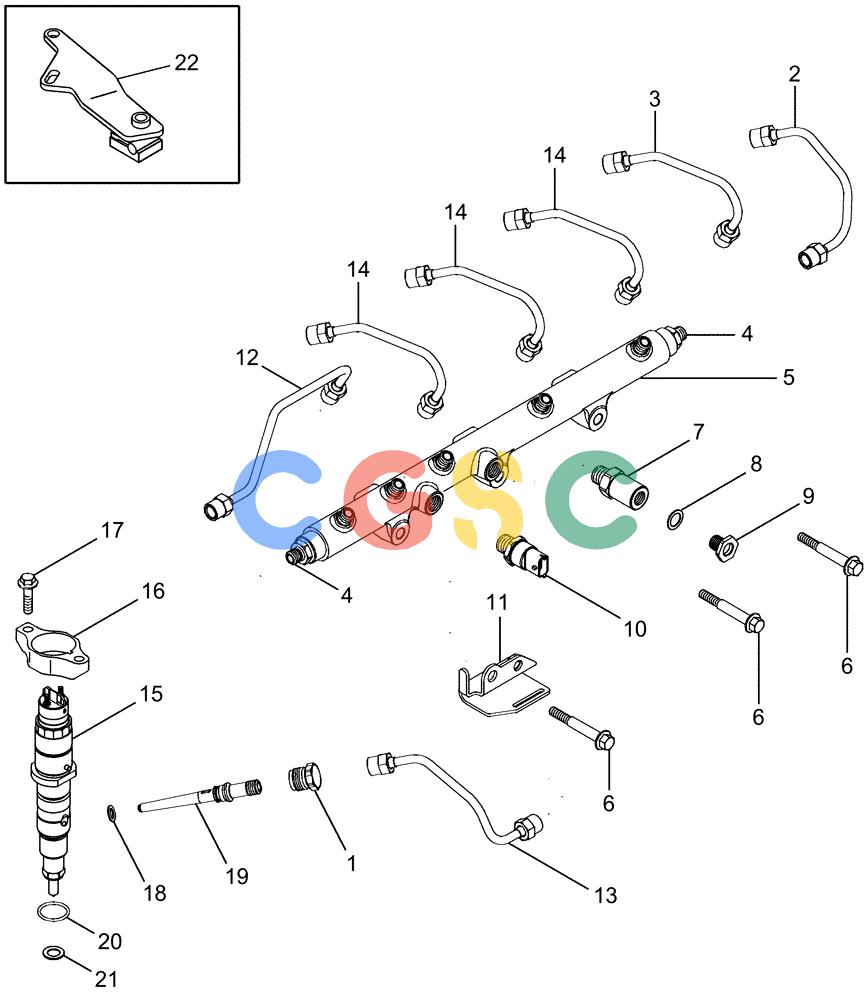

凯斯零件查询(FLX3020) - FLOATER (6/06-1/12) (03-01) - FUEL INJECTION SYSTEM Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
702 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87347221
|
[6] |
RETAINER
|
CAS
|
| 2. |
87348184
|
[1] |
FUEL TUBE,3 mm ID x 8 mm OD x 217.70 mm L
|
CAS
|
| 3. |
87348175
|
[1] |
TUBE,3 mm ID x 8 mm OD x 217.50 mm L
|
CAS
|
| 4. |
87348150
|
[2] |
FITTING
|
CAS
High Pressure Fuel Superseded by part number: 87376171
|
| 5. |
87347257
|
[1] |
KIT
|
CAS
Manifold Superseded by part number: 84243089
|
| 6. |
854-10070
|
[3] |
BOLT,Hvy Hex, M10 x 70mm, Cl 10.9
|
CAS
|
| 7. |
87347275
|
[1] |
VALVE PRESSURE RELIE
|
CAS
|
| 8. |
87348161
|
[1] |
SEALING WASHER
|
CAS
Superseded by part number: 87347275
|
| 9. |
87348154
|
[1] |
ADAPTER
|
CAS
Superseded by part number: 87347260
|
| 10. |
87347273
|
[1] |
SENSOR
|
CAS
Superseded by part number: 87727942
|
| 11. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
BRACE, Tube
|
| 12. |
87348190
|
[1] |
FUEL TUBE,3 mm ID x 8 mm OD x 394.10 mm L
|
CAS
|
| 13. |
87348171
|
[1] |
FUEL TUBE,3 mm ID x 8 mm OD x 217.60 mm L
|
CAS
|
| 14. |
87348283
|
[3] |
FUEL TUBE,3 mm ID x 8 mm OD x 217.50 mm L
|
CAS
|
| 15. |
87538119
|
[6] |
FUEL SYSTEM INJECTOR
|
CAS
Superseded by part number: 84346812
|
| 15. |
84346812R
|
[6] |
REMAN-FUEL INJECTOR
|
MKT
Reman for new P/N 87538119
|
| 15. |
84346812C
|
[6] |
CORE-FUEL INJECTOR
|
MKT
Return Number
|
| 16. |
87343005
|
[6] |
CLAMP
|
CAS
|
| 17. |
87343006
|
[12] |
BOLT
|
CAS
|
| 18. |
87348322
|
[6] |
SEAL,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro
|
CAS
|
| 19. |
87348301
|
[6] |
FITTING
|
CAS
Inc. 18 Superseded by part number: 84403334
|
| 21. |
J923261
|
[6] |
WASHER,7.2mm ID x 15mm OD x 2.5mm Thk
|
CAS
|
