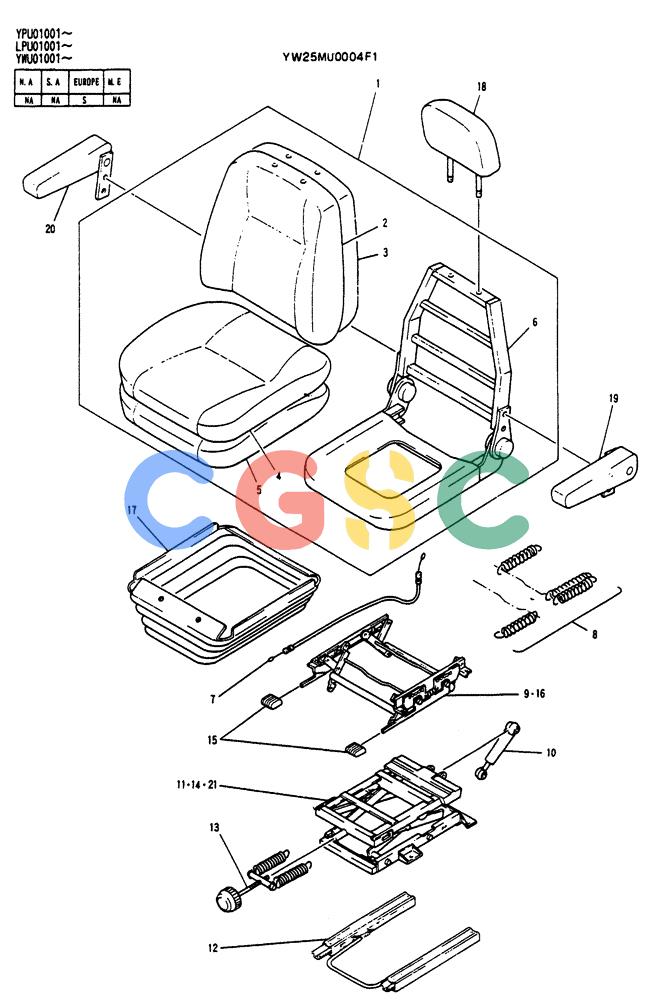

神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (02-011) - SEAT ASSEMBLY, P/N 24100J17304F3 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
753 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YW25MU0004F1 | [1] | SEAT | KOBASSY, INCL 1 - 21 |
| 1. | YN25MU0001S001 | [1] | SEAT | KOBACCESSORY SEAT ASSY |
| 2. | YN25MU0001S002 | [1] | BACKREST COVER | KOBBACK COVER |
| 3. | YN25MU0001S003 | [1] | SEAT CUSHION | KOBBACK FORM |
| 4. | YN25MU0001S004 | [1] | SEAT COVER | KOBSEAT, COVER Superseded by part number: YN25M00008S004 |
| 5. | 2448U246S7 | [1] | SEAT CUSHION | KOBFORM |
| 6. | YN25MU0001S006 | [1] | FRAME | KOB |
| 7. | YN25MU0001S007 | [1] | CABLE | KOBCABLE ADJUSTMENT Superseded by part number: GG25M00001S007 |
| 8. | 2448U246S11 | [1] | SPRING | KOBHEIGHT RISER |
| 9. | YN25MU0001S009 | [1] | LATCH, HEIGHT RISER | LATCH, HEIGHT RISER |
| 10. | 2448U167S15 | [1] | DAMPER | KOB |
| 11. | 2448U167S14 | [1] | SUSPENSION | KOB |
| 12. | 2448U167S13 | [1] | RAIL ASSY. | KOB |
| 13. | 2448U167S12 | [1] | ADJUSTER | KOBWEIGHT ADJUSTER |
| 14. | 2448U167S16 | [1] | STOP | KOBUP STOP |
| 15. | YN25MU0001S014 | [1] | HANDLE | KOBGREY |
| 16. | YN25MU0001S015 | [1] | ADJUSTER | KOBHEIGHT RISER |
| 17. | YN25MU0002S017 | [1] | COVER | KOBSUSPENSION |
| 18. | YN25MU0001S017 | [1] | SUPPORT | KOBHEAD REST |
| 19. | YW25MU0004S019 | [1] | ARMREST | KOBARMREST (L.H) Superseded by part number: YW25MU0004S020 |
| 20. | YW25MU0004S019 | [1] | ARMREST | KOBARMREST (R.H) Superseded by part number: YW25MU0004S020 |
| .. | YW25MU0004S020 | [1] | ARMREST | KOBBoth LH & RH ARMREST |
| 21. | 2448U167S18 | [1] | KIT | KOB |
