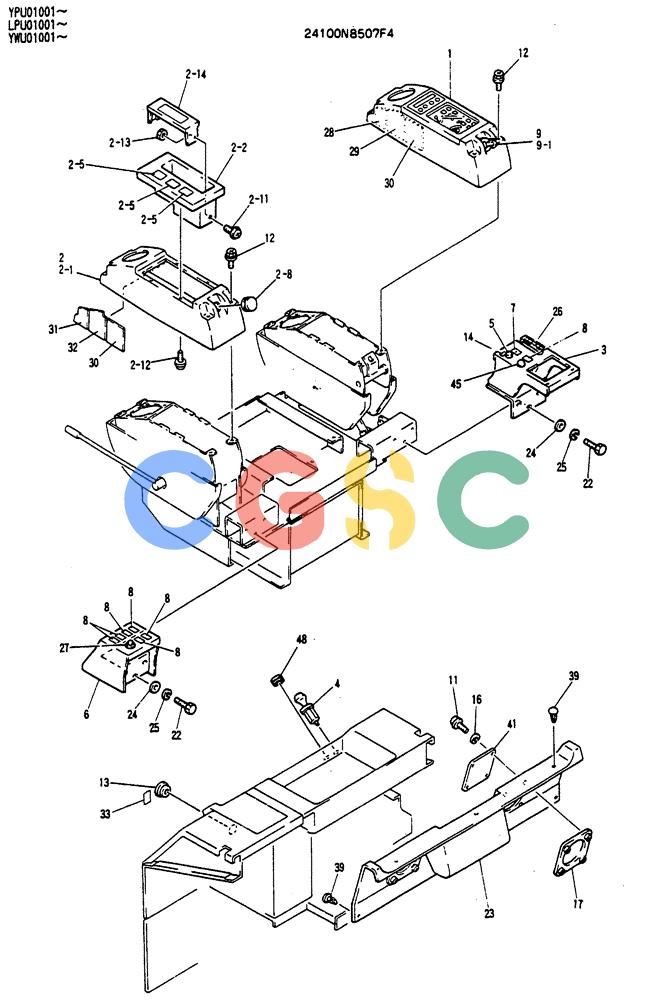

神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (05-011) - INSTRUMENT PANEL ASSY (24100J8507F4) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
772 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N8507F4 | [1] | PANEL ASSY, INSTRUMENT | |
| 1. | 24100J17059F1 | [1] | PANEL | KOB Superseded by part number: 24100J17059F2 |
| 2. | PY17M00001F2 | [1] | PANEL | KOBASSY (L. H) |
| 2-1. | PY17M01012P1 | [1] | COVER | KOB |
| 2-2. | PY17M01013P1 | [1] | CASE | KOB Superseded by part number: YR17M00002S006 |
| 2-5. | PY17M01008P1 | [3] | PANEL | KOB |
| 2-8. | PY17M01011P1 | [1] | GROMMET | KOB |
| 2-11. | PY17M00001S011 | [2] | SCREW | KOB |
| 2-12. | PY17M00001S012 | [4] | SCREW | KOB |
| 2-13. | PY17M00001S013 | [2] | NUT | KOB |
| 2-14. | PY17M00001S014 | [1] | PANEL | KOB |
| 3. | 2416N7085 | [1] | U-BRACKET | KOB |
| 4. | 2421R180F1 | [1] | CIGARETTE LIGHTER | KOB Superseded by part number: YN81S00003P1 |
| 5. | 2479U1278F2 | [1] | SWITCH | KOB(WIPER) |
| 6. | 2416N7084 | [1] | BRACKET | KOB |
| 7. | 2479U1190F9 | [1] | SWITCH | KOB |
| 8. | YN17M01032P1 | [7] | CAP | KOB(SWING FLASHER) |
| 9. | YN50S00002F1 | [1] | IGNITION SWITCH | KOBSTARTER Superseded by part number: YN50S00026F1 |
| 9-1. | YN50S00002S001 | [1] | KEY | KOBKEY Superseded by part number: YN50S01010P1 |
| 11. | ZS31C04025 | [8] | SCREW,Phillips Drive, Pan HD, M4 x 25mm | KOBM04x0.7x25mm |
| 12. | 2420R608D2 | [8] | SCREW,M6 x 12mm | KOBM06x1.0x12mm (Incls. Washer & Lockwasher) Superseded by part number: ZM61C06012 |
| 13. | 2420R429D11 | [1] | GROMMET | KOB |
| 14. | LE17M01008P1 | [1] | LABEL | KOB |
| 16. | ZW22X04000 | [8] | LOCK WASHER | KOBID 04 x OD 07.6 x Th 1.0mm Superseded by part number: ZW26X04000 |
| 17. | YN17M01029P1 | [2] | PLATE | KOB |
| 22. | ZS18C08020 | [6] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 23. | 2414N5536 | [1] | COVER | KOB |
| 24. | ZW16X08000 | [6] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 25. | ZW26X08000 | [6] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 26. | LE17M01015P1 | [1] | LABEL | KOB |
| 27. | NSS | [1] | NOT SOLD SEPARAT | CONSWITCH (ETHER) |
| 28. | YR17M01023P2 | [1] | INSULATOR | KOB |
| 29. | YR17M01024P2 | [1] | INSULATOR | KOB |
| 30. | YR17M01025P2 | [2] | INSULATOR | KOB |
| 31. | YR17M01026P2 | [1] | INSULATOR | KOB |
| 32. | YR17M01027P2 | [1] | INSULATOR | KOB |
| 33. | YN22M01013P1 | [1] | LABEL | KOB |
| 39. | 2420R584 | [6] | FASTENER | KOB |
| 41. | YN17M01037P1 | [2] | PLATE | KOB |
| 45. | 2420R429D1 | [1] | GROMMET | KOB |
| 48. | 2420R429D4 | [1] | GROMMET | KOBGROMMET |
