神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (05-012) - CONTROLLER INSTALLATION (24100P4425F4) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
649 次

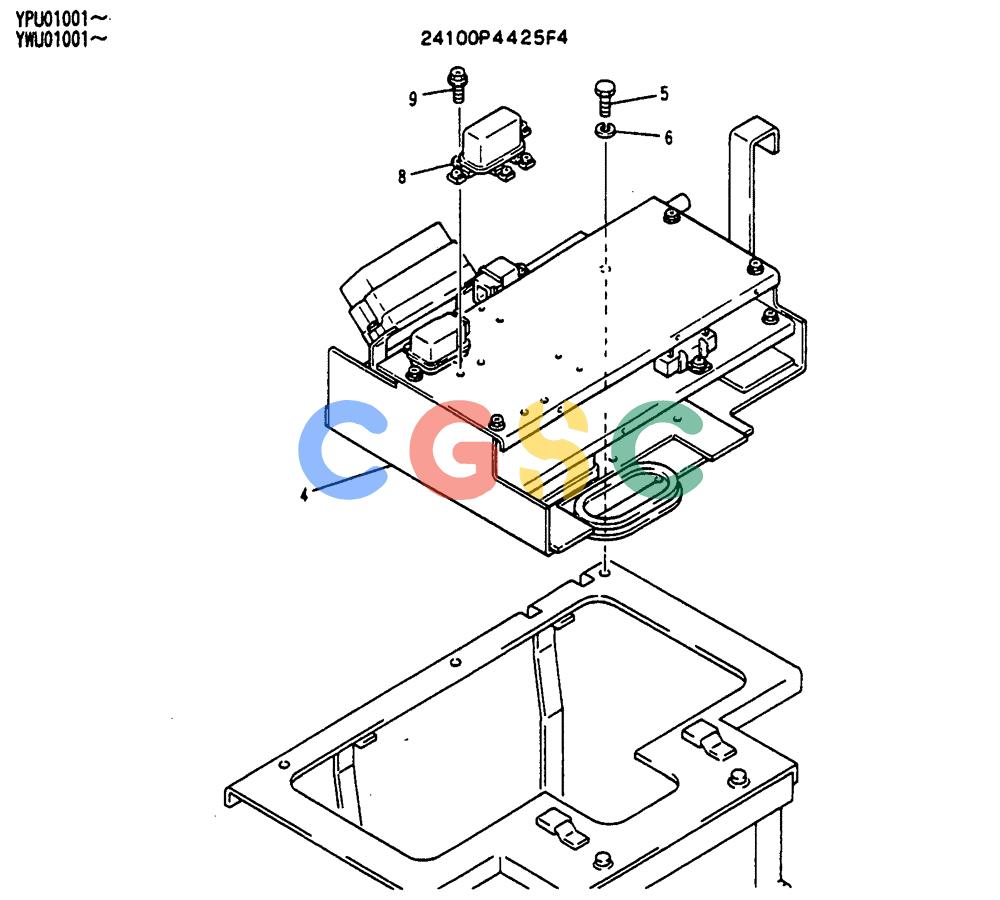

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P4425F4 | [1] | CONTROLLER INSTAL | |
| 4. | 24100J17277F4 | [1] | CONTROLLER ASSY, REF:05-014 | |
| 5. | ZS16C10020 | [2] | CAPSCREW M10x1.50x20mm | CAPSCREW M10x1.50x20mm |
| 6. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 8. | YN24SU1001P1 | [1] | SWITCH | KOBSafety Relay (Cummins pn 3006300 or 4919872) The sub to pn relay looks different and has a different pin configuration. Contact Asist for installation instructions. Superseded by part number: 84475895 |
| 9. | YR17M01022D1 | [2] | SCREW | KOB Superseded by part number: ZM66C06016 |
