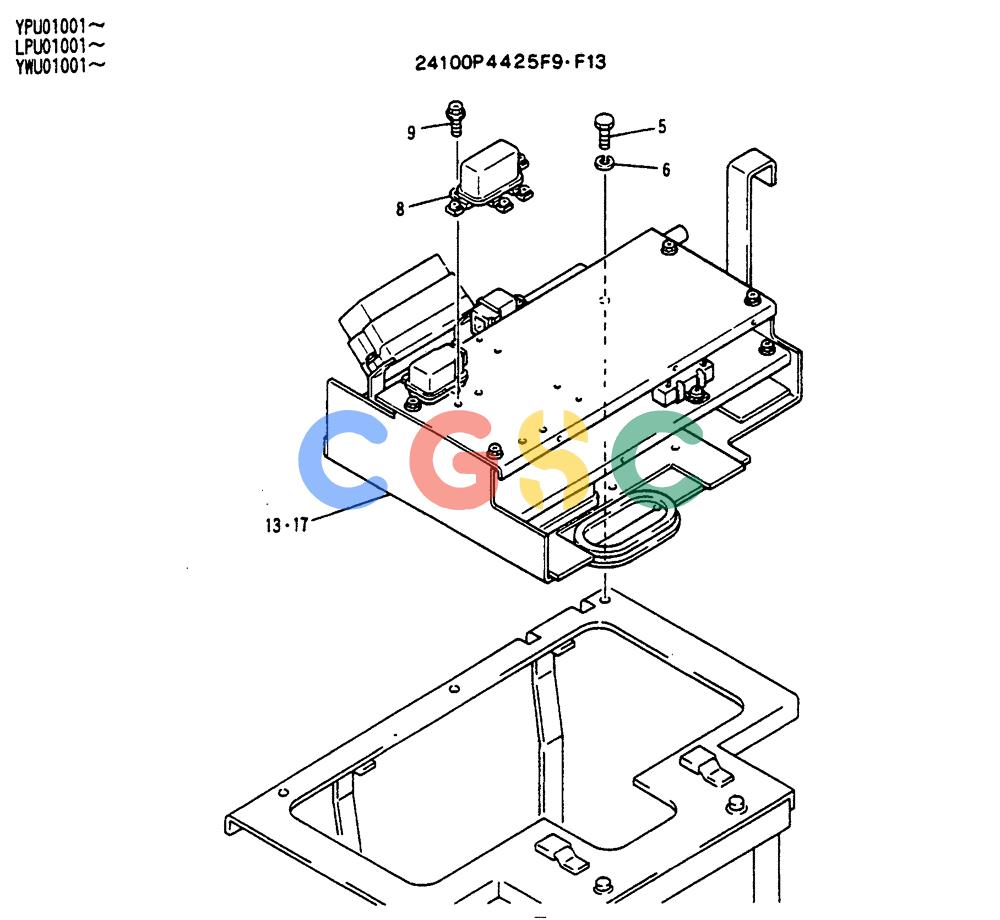

神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (05-013) - CONTROLLER INSTALLATION (24100P4425F9) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
623 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P4425F9 | [1] | CONTROLLER INSTAL | |
| . . | 24100P4425F13 | [1] | CONTROLLER INSTAL | |
| 5. | ZS18C10020 | [2] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 6. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 8. | YN24SU1001P1 | [1] | SWITCH | KOBSafety Relay (Cummins pn 3006300 or 4919872) The sub to pn relay looks different and has a different pin configuration. Contact Asist for installation instructions. Superseded by part number: 84475895 |
| 9. | YR17M01022D1 | [2] | SCREW | KOB Superseded by part number: ZM66C06016 |
| 13. | 24100J17277F8 | [1] | CONTROLLER ASSY (F9 ONLY), REF:05-015 | |
| 17. | 24100J17277F12 | [1] | CONTROLLER ASSY (F13 ONLY), REF:05-016 | |
