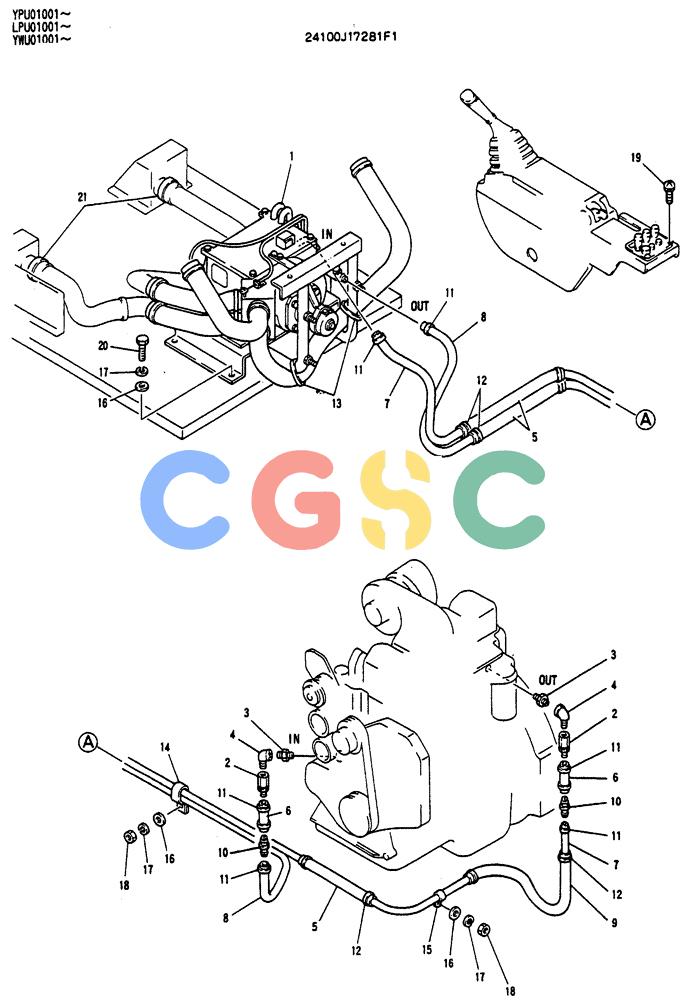

神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (05-017) - HEATER & DEFROSTER INSTALLATION Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
982 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J17281F1 | [1] | HEATER & DEFROSTER | |
| 1. | 24100N8588F1 | [1] | HEATER | KOBASSY, REF:05-018 |
| 2. | 2444Z1630 | [2] | FITTING | KOBConnector -- 3/8" PT Hose |
| 3. | 2444T4676 | [2] | HYD CONNECTOR | KOB |
| 4. | ZG32B06000 | [2] | ELBOW | KOB90° |
| 5. | 2444Z3924D5 | [3] | HOSE | KOB |
| 6. | R18T0026D51 | [2] | FLEXIBLE HOSE | KOBID 12 x OD 22 x 80mm |
| 7. | 2444Z2220D15 | [1] | FLEXIBLE HOSE | KOB |
| 8. | 2444Z2220D12 | [1] | HOSE | KOB |
| 9. | 2444Z3924D3 | [1] | HOSE | KOB |
| 10. | 2418T10455 | [2] | PIPE | KOB |
| 11. | ZC16X02000 | [8] | CLIP | KOBClamp, Hose -- Min 15 x Max 25mm |
| 12. | 2432Z290D2 | [6] | CLIP | KOBWire Ties -- 100mm Long Superseded by part number: YT50C01100P1 |
| 13. | 2432Z290D5 | [2] | CLIP | KOBWire Ties -- 365mm Long Superseded by part number: PY01P01043D8 |
| 14. | 2432R226D12 | [1] | CLIP | KOBClamp, Double -- ID 24 x 85mm Long Superseded by part number: ZC48X24014 |
| 15. | 2432R225D10 | [1] | CLIP | KOBClamp, Single -- ID 25.5 x 58.75mm Long Superseded by part number: ZC46X25011 |
| 16. | ZW16X10000 | [6] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 17. | ZW26X10000 | [6] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 18. | ZN18C10008 | [2] | NUT | KOBM10x1.50mm |
| 19. | 2420R1092D2 | [2] | SCREW,M5 x 16mm | KOBM05x0.8x16mm (Incls. Washer & Lockwasher) Superseded by part number: ZM46C05016 |
| 20. | ZS18C10025 | [4] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 21. | 2432Z938 | [2] | CLAMP | KOB |
