神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (05-018) - HEATER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
201 次

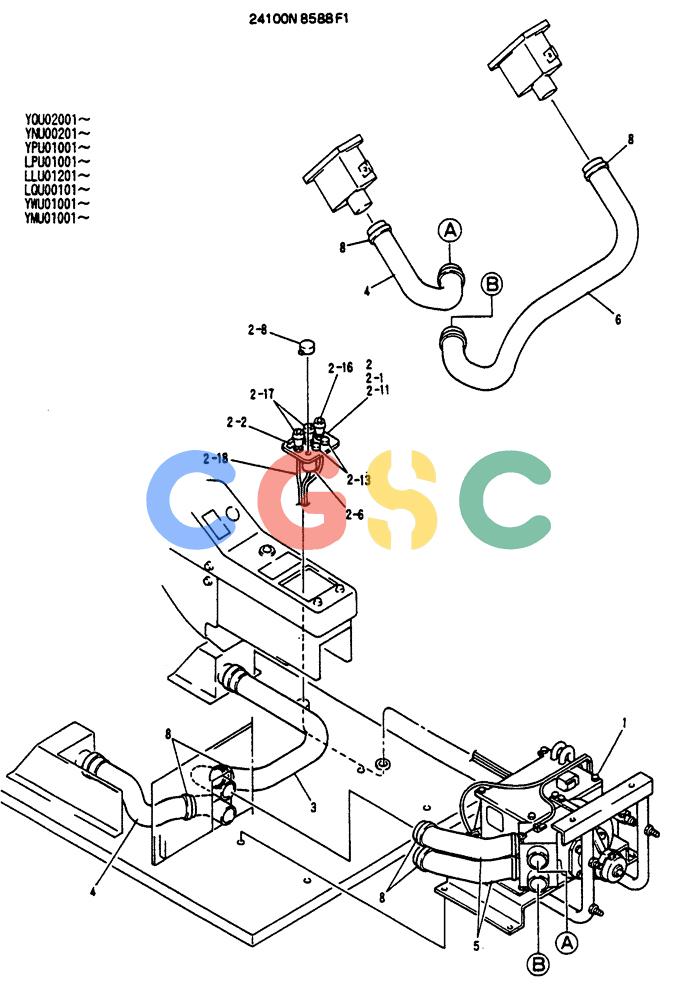

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N8588F1 | [1] | HEATER | KOBASSY |
| 1. | 24100U1496F3 | [1] | HEATER | KOBREF: 05-021 Superseded by part number: 24100N8588F1 |
| 2. | 24100U1497F3 | [1] | PANEL ASSY | |
| 2-1. | 24100U1497S1 | [1] | SPRING, LEAF | KOB |
| 2-2. | 24100U1497S2 | [1] | LABEL | KOB |
| 2-6. | 24100U1497S6 | [1] | SWITCH | KOB |
| 2-8. | 24100U1497S8 | [1] | KNOB | KOB |
| 2-11. | 24100U1497S11 | [1] | LABEL | KOBLABEL, IDENTIFICATION |
| 2-13. | 24100U1497S13 | [2] | PLUG | KOB |
| 2-16. | 24100U1497S16 | [1] | FLEXIBLE CONTROL | KOBCONTROL |
| 2-17. | 24100U1497S17 | [2] | FLEXIBLE CONTROL | KOBCABLE |
| 2-18. | 24100U1497S18 | [1] | FLEXIBLE CONTROL | KOBWIRING HARNESS ASSY |
| 3. | 2444R2542D5 | [1] | FLEXIBLE HOSE | KOBN/A HOSE- SUB'D |
| 4. | 2444R2542D3 | [2] | FLEXIBLE HOSE | KOBN/A HOSE- SUB'D |
| 5. | 2444R2542D1 | [2] | FLEXIBLE HOSE | KOBN/A HOSE- SUB'D |
| 6. | 2444R2542D6 | [1] | FLEXIBLE HOSE | KOB |
| 8. | 2432Z909D3 | [10] | CLIP | KOBCLAMP Superseded by part number: ZC16X07000 |
