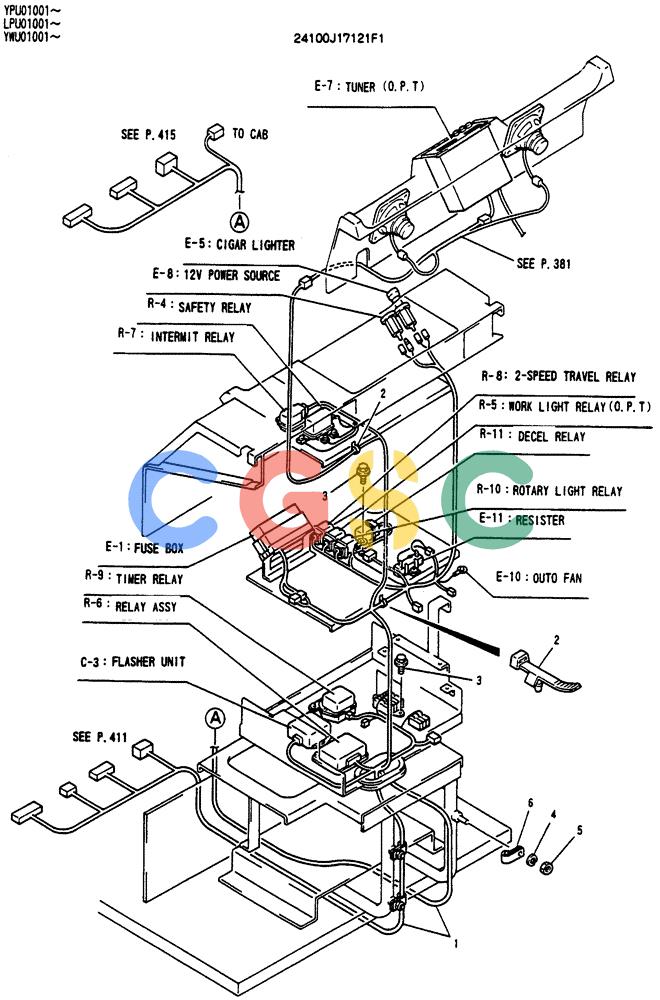

神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (06-003) - HARNESS ASSY (CONTROLLER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
322 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J17121F1 | [1] | WIRE HARNESS | KOB(CONTROLLER) |
| 1. | 2479U1796 | [1] | HARNESS | KOB |
| 2. | YN03E01001D5 | [2] | CLIP | KOB195mm Long (7-43/64 in) -- Black |
| 3. | YN22M01005D3 | [3] | SCREW | KOBM06x1.0x20mm (Incls. Washer & Lockwasher) Superseded by part number: ZM61C06020 |
| 4. | ZW26X10000 | [3] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 5. | ZN18C10008 | [3] | NUT | KOBM10x1.50mm |
| 6. | 2432R225D12 | [3] | CLAMP | KOBClamp, Single -- ID 31 x 69.5mm Long Superseded by part number: ZC46X31014 |
