神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (07-004) - BOTTOM ROLLER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
544 次

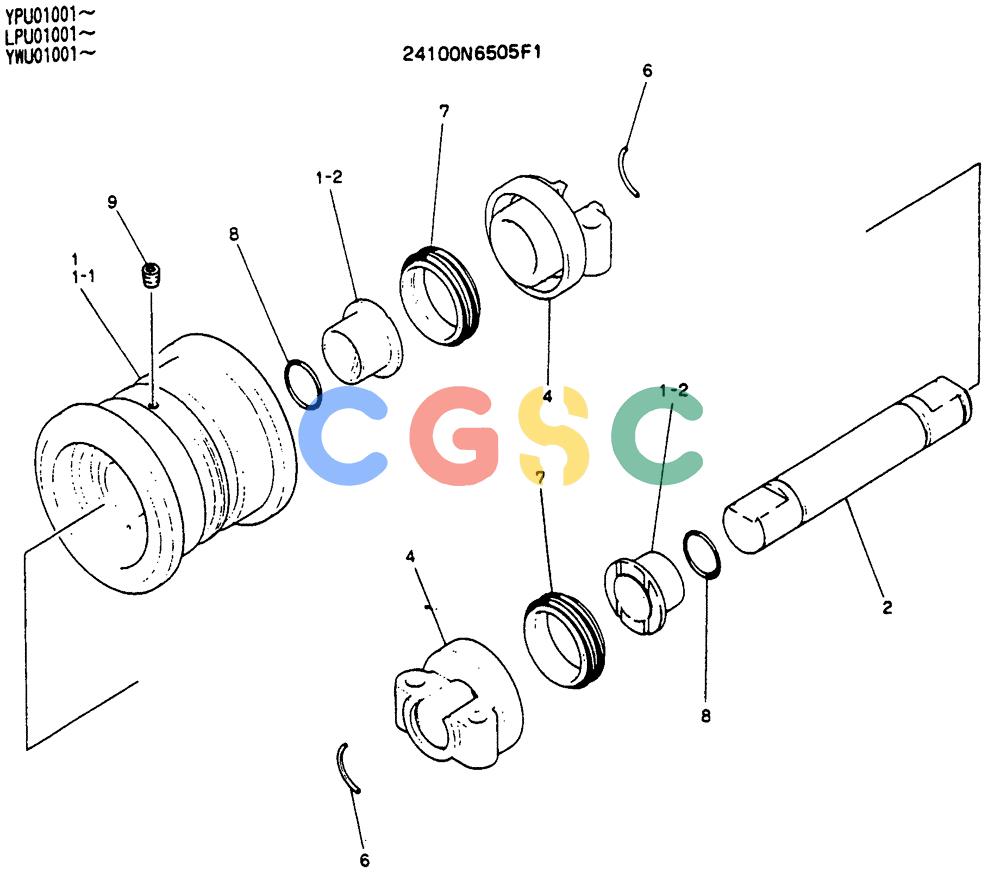

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N6505F1 | [1] | ROLLER | KOBASSY (BOTTOM) |
| 1. | 2413T675F1 | [1] | ROLLER | |
| 1-1. | 2413N776 | [1] | ROLLER | KOB |
| 1-2. | 2405P490 | [2] | BUSHING,50.2mm ID x 57mm OD x 50mm L | KOBID 50.2 x OD 57 x 50mm Long |
| 2. | 2410N797 | [1] | ROLLER SHAFT | KOB |
| 4. | 2418N3750 | [2] | COLLAR CLAMP | KOB |
| 6. | 2418T21355 | [2] | RING | KOB Superseded by part number: 2418T12243 |
| 7. | R45P0018D8 | [2] | SEAL | KOBFLOATING |
| 8. | ZD11G04500 | [2] | O-RING,44.40mm ID x 50.60mm OD x 3.10mm | KOBID 44.40 ± 0.41 x OD 50mm |
| 9. | 2420Z2151 | [1] | PLUG | KOB |
