神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (07-005) - TOP ROLLER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
880 次

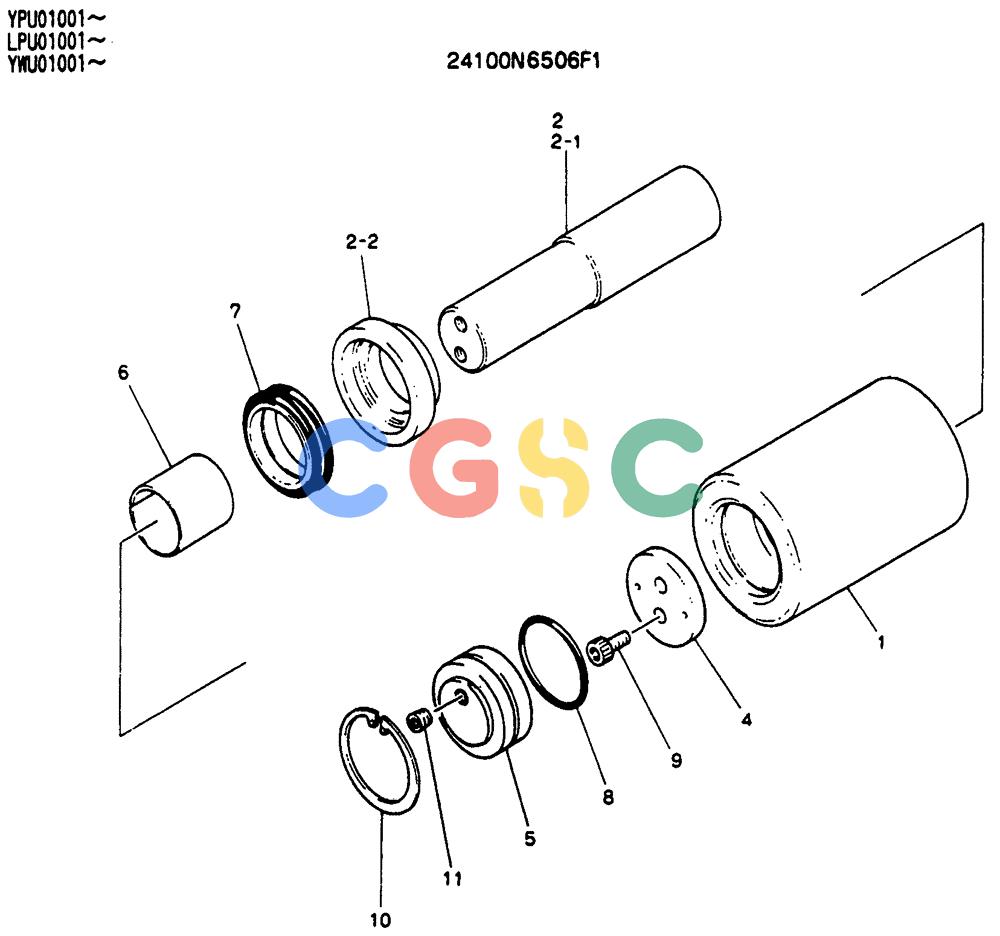

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N6506F1 | [1] | ROLLER | KOBASSY (TOP) Superseded by part number: YY64D01005F1 |
| 1. | 2413N740 | [1] | TRACK ROLLER | KOB Superseded by part number: YY64D01005F1 |
| 2. | 2410T594F1 | [1] | SHAFT | |
| 2-1. | 2410P1152 | [1] | ROLLER SHAFT | KOB |
| 2-2. | 2418P23202 | [1] | COLLAR CLAMP | KOB |
| 4. | 2418T21356 | [1] | STEEL PLATE | KOB |
| 5. | 2414T4762 | [1] | COVER | KOB |
| 6. | 2405T980 | [1] | BUSHING | KOB |
| 7. | R45P0018D2 | [1] | FLOAT | KOB Superseded by part number: 2445R360F1 |
| 8. | ZD11G05500 | [1] | O-RING,54.40mm ID x 60.60mm OD x 3.10mm | KOBID 54.40 ± 0.49 x OD 60mm |
| 9. | ZS23C08020 | [2] | SCREW,Hex Socket Head, M8 x 20mm | KOBM08x1.25x20mm |
| 10. | ZR26X06000 | [1] | RING | KOBRetaining -- ID 60 x OD 64.2 x Th 2.0mm |
| 11. | 2420Z2150 | [1] | PLUG | KOB Superseded by part number: LQ64D01031S003 |
