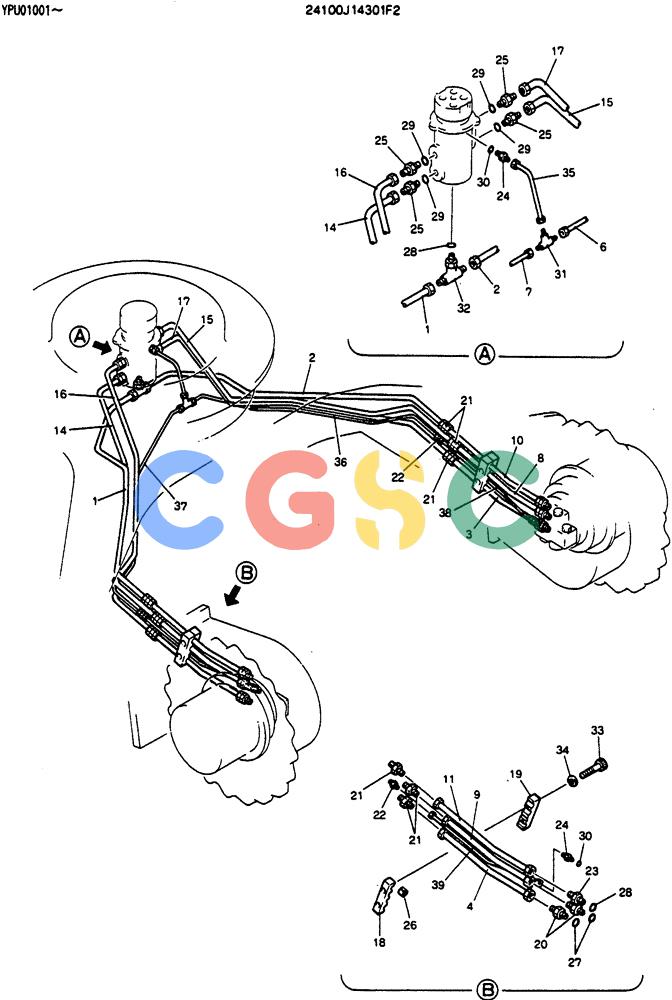

神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (07-008) - LOWER HYDRAULICS (24100J1430F2) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
810 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J14301F2 | [1] | HYD LINES, LOW | |
| 1. | 2418P26584 | [1] | RIGID TUBE | KOB |
| 2. | 2418P26585 | [1] | TUBE | KOB |
| 3. | 2418P26586 | [1] | TUBE | KOB |
| 4. | 2418P26587 | [1] | TUBE | KOB |
| 8. | 2418P26588 | [1] | TUBE | KOB |
| 9. | 2418P26589 | [1] | TUBE | KOB |
| 10. | 2418P26590 | [1] | TUBE | KOB |
| 11. | 2418P26591 | [1] | TUBE | KOB |
| 14. | 2418P26594 | [1] | RIGID TUBE | KOB |
| 15. | 2418P26595 | [1] | TIRE TUBE | KOB |
| 16. | 2418P26596 | [1] | TUBE | KOB |
| 17. | 2418P26597 | [1] | TUBE | KOB |
| 18. | 2432T4778 | [2] | CLAMP | KOB150x38x25mm with 2 Taped M10x1.50 Holes |
| 19. | 2432T4779 | [2] | CLAMP | KOB150x38x25mm |
| 20. | ZA23F22012 | [4] | HYD CONNECTOR | KOB3/4"PF - M30x1.50 x 46mm Long |
| 21. | ZA23B22000 | [6] | HYD CONNECTOR | KOBM30x1.50x38mm Long |
| 22. | ZA23B10000 | [2] | HYD CONNECTOR | KOBM16x1.50x50mm Long |
| 23. | ZA23F22008 | [2] | HYD CONNECTOR | KOB1/2" PT - M30x1.50 x 43mm Long |
| 24. | ZA23F10004 | [3] | HYD CONNECTOR | KOB1/4" PF x M16x1.50 x 33mm Long |
| 25. | 2444Z2320 | [4] | ELEC CONNECTOR | KOB1"PF-M30x1.50x48mm Long |
| 26. | 2414T2890 | [2] | PROTECTOR | KOBID 10 x OD 14 x 35mm Long |
| 27. | ZD12P02400 | [4] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 28. | ZD12P01800 | [3] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 29. | ZD12P02900 | [4] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 30. | ZD12P01100 | [3] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 31. | ZA53B10000 | [1] | TEE | KOB(3) M16x1.50x46mm Long (No O-Ring supplied) |
| 32. | 2444Z2549 | [1] | TEE | KOB(2) M30x1.50 x 1/2"PF x 76mm Long (No O-Ring supplied) |
| 33. | ZS23C10040 | [4] | SCREW,Hex Socket Head, M10 x 40mm | KOBM10x1.50x40mm |
| 34. | ZW22K10000 | [4] | LOCK WASHER | KOBLock -- ID 10.2 x OD 15.7 x Th 2.5mm |
| 35. | 2418T23790 | [1] | RIGID TUBE | KOB |
| 36. | 2418P26582 | [1] | TUBE | KOB(replaced by 2418P22723D1) Superseded by part number: 2418P22723D1 |
| 36. | 2418P22723D1 | [1] | TUBE | KOB |
| 37. | 2418P26583 | [1] | RIGID TUBE | KOB Superseded by part number: 2418P22723D2 |
| 38. | 2418P26592 | [1] | TUBE | KOB(replaced by 2418P23264D1) Superseded by part number: 2418P23264D1 |
| 38. | 2418P23264D1 | [1] | RIGID TUBE | KOB |
| 39. | 2418P23264D2 | [1] | RIGID TUBE | KOB |
