神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (07-009) - CRAWLER CHAIN & SHOE ASSY (24100J17681F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
734 次

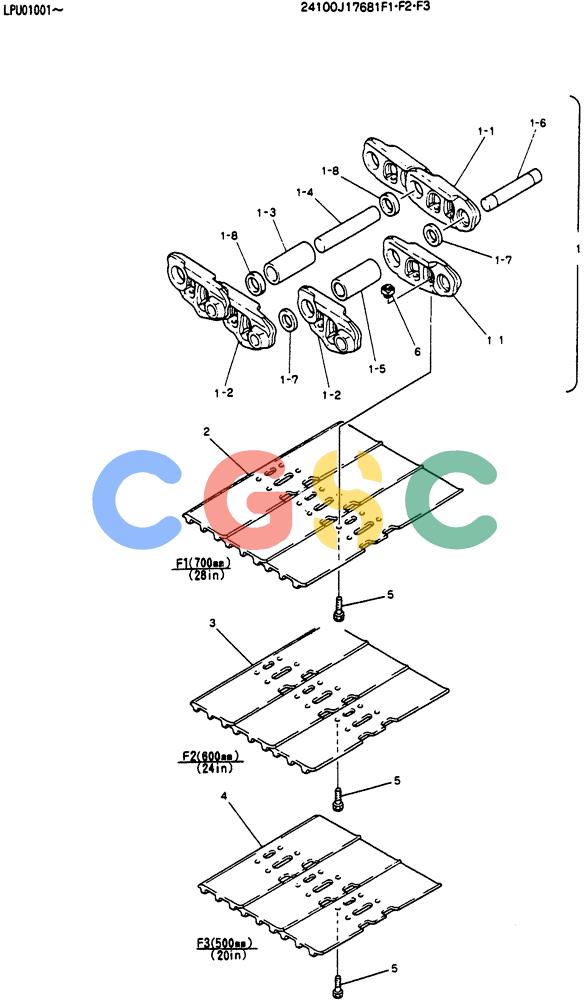

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J17681F1 | [1] | 700MM SHOE ASSEMBLY, Incls. Refs. 1, 2, 5 & 6 | |
| . . | 24100J17681F2 | [1] | 600MM SHOE ASSEMBLY, Incls. Refs. 1, 3, 5 & 6 | |
| . . | 24100J17681F3 | [1] | 500MM SHOE ASSEMBLY, Incls. Refs. 1, 4, 5 & 6 | |
| 1. | 24100J17682F1 | [2] | CHAIN | KOB |
| 1-1. | 2424J383 | [43] | TRACK LINK | KOB(R.H) |
| 1-2. | 2424J384 | [43] | TRACK LINK | KOB(L. H) |
| 1-3. | 2405P422C3 | [42] | BUSHING | KOBTRACK |
| 1-4. | 2419P3287C2 | [42] | PIN | KOBTRACK |
| 1-5. | 2405P421C3 | [1] | BUSHING | KOBMASTER |
| 1-6. | 2419P3288C2 | [1] | PIN | KOBMASTER |
| 1-7. | 2418T21392 | [2] | COLLAR | KOB |
| 1-8. | 2445Z1497 | [84] | SEAL | KOB |
| 2. | 2424N228 | [86] | SHOE | KOB700MM |
| 3. | 2424N264 | [86] | SHOE | KOB600MM |
| 4. | 2424N265 | [86] | SHOE | KOB500MM |
| 5. | 2420Z2036 | [344] | BOLT | KOB Superseded by part number: YY60D01003P1 |
| 6. | LP60DU1001P1 | [344] | NUT | KOBWas 2420Z2037 |
