神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (07-010) - CRAWLER CHAIN & SHOE ASSY (24100J12284F2) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
715 次

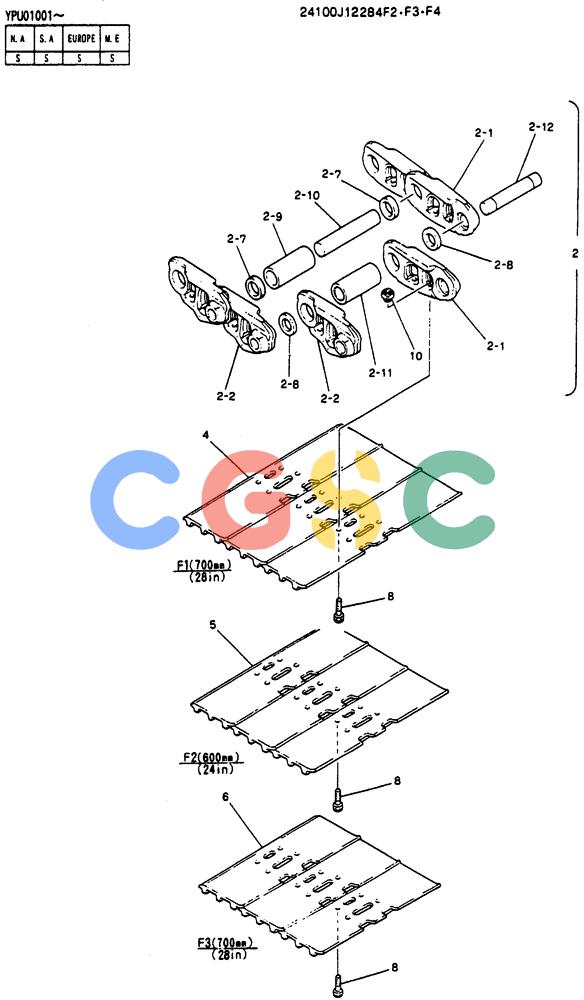

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J12284F2 | [1] | TRACK CHAIN | KOB700MM, Incls. Refs. 2, 4, 8 & 10 |
| . . | 24100J12284F3 | [1] | 600MM LC TRACK ASSY, Incls. Refs. 2, 5, 8 & 10 | |
| . . | 24100J12284F4 | [1] | TRACK ASSY 500MM LC Incls. Refs. 2, 6, 8 & 10 | TRACK ASSY 500MM LC Incls. Refs. 2, 6, 8 & 10 |
| 2. | 24100J12285F2 | [2] | CHAIN LINK | KOBTRACK LINK ASSY |
| 2-1. | 2424J383 | [46] | TRACK LINK | KOBTRACK LINK (R.H) |
| 2-2. | 2424J384 | [46] | TRACK LINK | KOB(L.H) |
| 2-7. | 2445Z1497 | [90] | SEAL | KOB |
| 2-8. | 2418T21392 | [2] | COLLAR | KOB |
| 2-9. | 2405P422C3 | [45] | BUSHING | KOBTRACK |
| 2-10. | 2419P3287C2 | [45] | PIN | KOBTRACK |
| 2-11. | 2405P421C3 | [1] | BUSHING | KOBMASTER |
| 2-12. | 2419P3288C2 | [1] | PIN | KOBMASTER |
| 4. | 2424N228 | [92] | SHOE | KOB700MM |
| 5. | 2424N264 | [92] | SHOE | KOB600MM LC |
| 6. | 2424N265 | [92] | SHOE | KOB500MM LC |
| 8. | 2420Z2036 | [368] | BOLT | KOB Superseded by part number: YY60D01003P1 |
| 10. | LP60DU1001P1 | [368] | NUT | KOBWas 2420Z2037 |
