神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (09-003) - WRIST CONTROL & PILOT LINE GROUP (BOOM & ARM SAFETY) (CONTROL ASSY, REMOTE) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
119 次

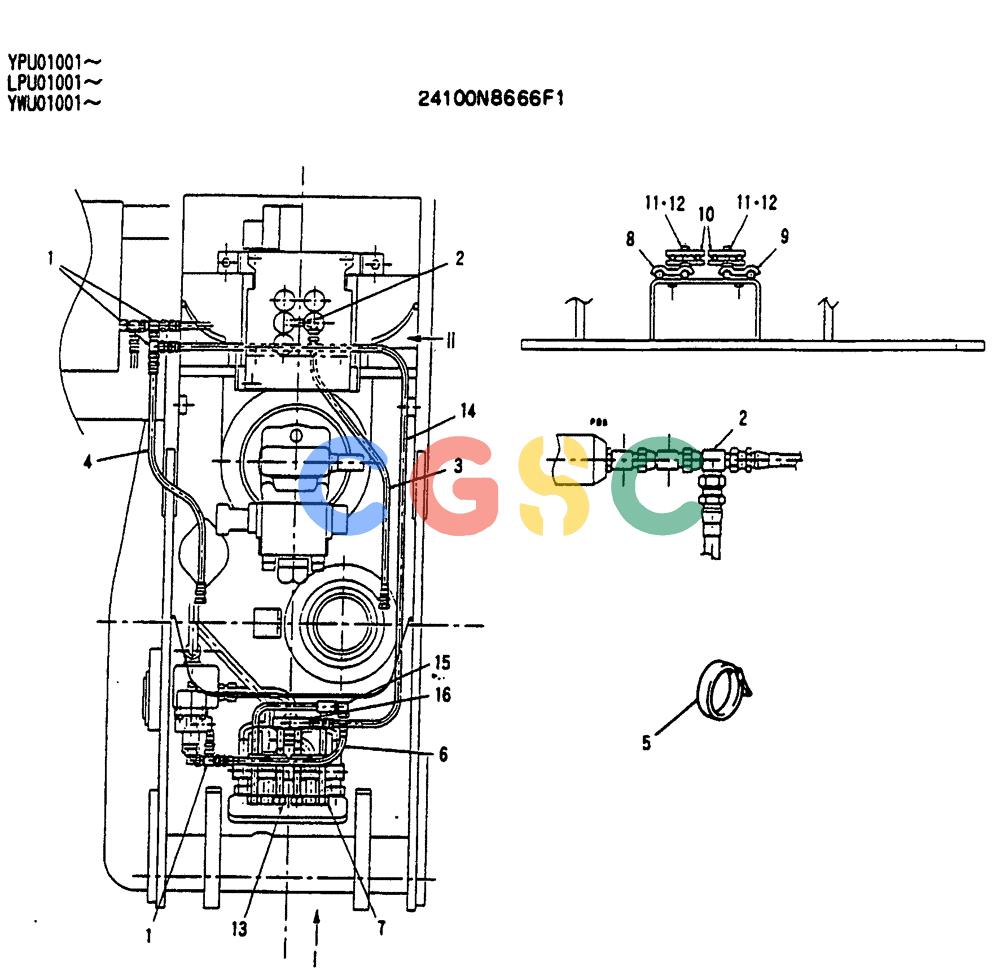

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N8666F1 | [1] | CONTROL ASSY. REMOTE | |
| 1. | 2444T2580 | [3] | TEE | KOB3/8" PF x 61mm Long (No O-Ring supplied) |
| 2. | 2444Z4107 | [1] | TEE | KOBTEE |
| 3. | HX21E06130DX | [1] | FLEXIBLE HOSE | KOB Superseded by part number: 2420R537D130 |
| 4. | 2444R1119D110 | [1] | FLEXIBLE HOSE | KOB |
| 5. | 2432Z290 | [6] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
| 6. | HX21E06060DX | [1] | FLEXIBLE HOSE | KOB |
| 7. | 2418P12215 | [1] | RIGID TUBE | KOB |
| 8. | 2416P8664 | [1] | SUPPORT | KOB |
| 9. | 2416P8663 | [1] | FLANGE | KOBSUPPORT |
| 10. | 2432T2340 | [2] | CLAMP | KOB |
| 11. | ZS13C10050 | [2] | SCREW | KOBM10x1.50x50mm Superseded by part number: ZS18C10050 |
| 12. | ZW22X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 13. | 2418P25024 | [1] | RIGID TUBE | KOB |
| 14. | 2444R1119D180 | [1] | HOSE | KOB1800mm Long (70-7/8 in) |
| 15. | ZH32X06000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| 16. | ZH22X06000 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01400) |
