神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (09-004) - FAN INSTALLATION Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
227 次

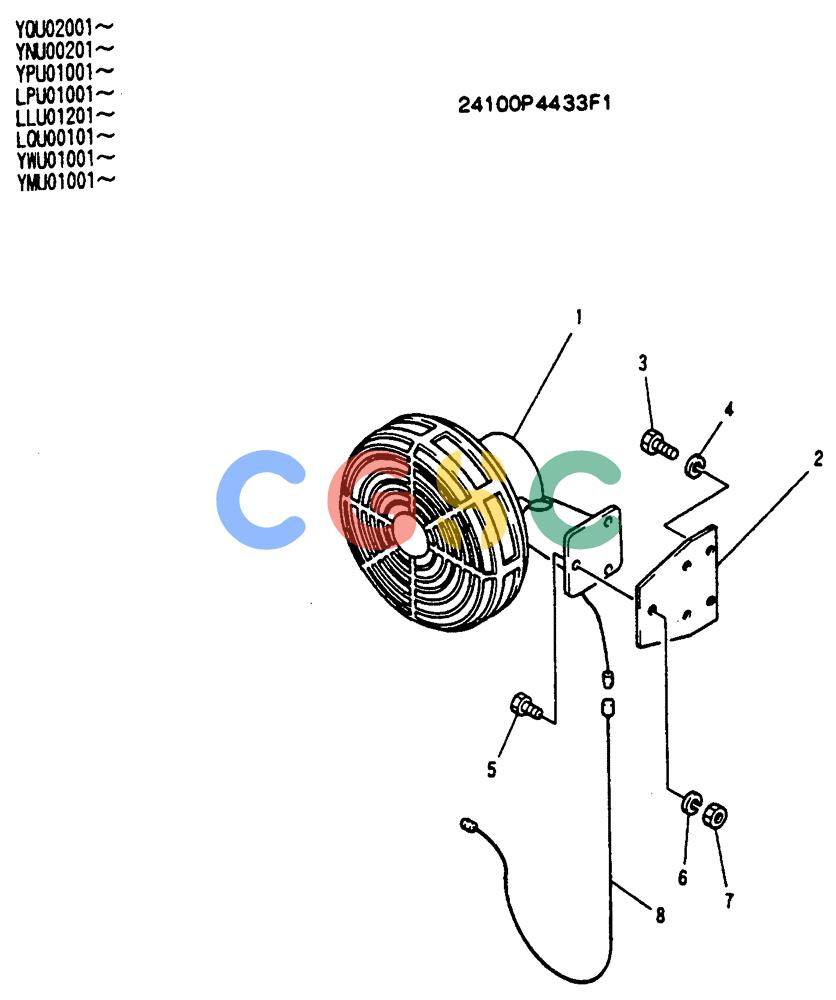

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P4433F1 | [1] | FAN INSTAL | |
| 1. | 2449R46 | [1] | FAN | KOBFAN |
| 2. | 2416T28393 | [1] | BRACKET | KOB |
| 3. | ZS31C06016 | [2] | SCREW,Phillips Drive, Pan HD, M6 x 16mm | KOBM06x1.0x16mm |
| 4. | ZW26X06000 | [2] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 5. | ZS31C04016 | [3] | SCREW,Phillips Drive, Pan HD, M4 x 16mm | KOBM04x0.7x16mm |
| 6. | ZW26X04000 | [3] | LOCK WASHER | KOBID 04 x OD 7.6 x Th 1.0mm |
| 7. | ZN18C04003 | [3] | NUT | KOBM04x0.7mm |
| 8. | 2479Z2956 | [1] | HARNESS | KOB |
