神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (09-005) - ALARM ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
899 次

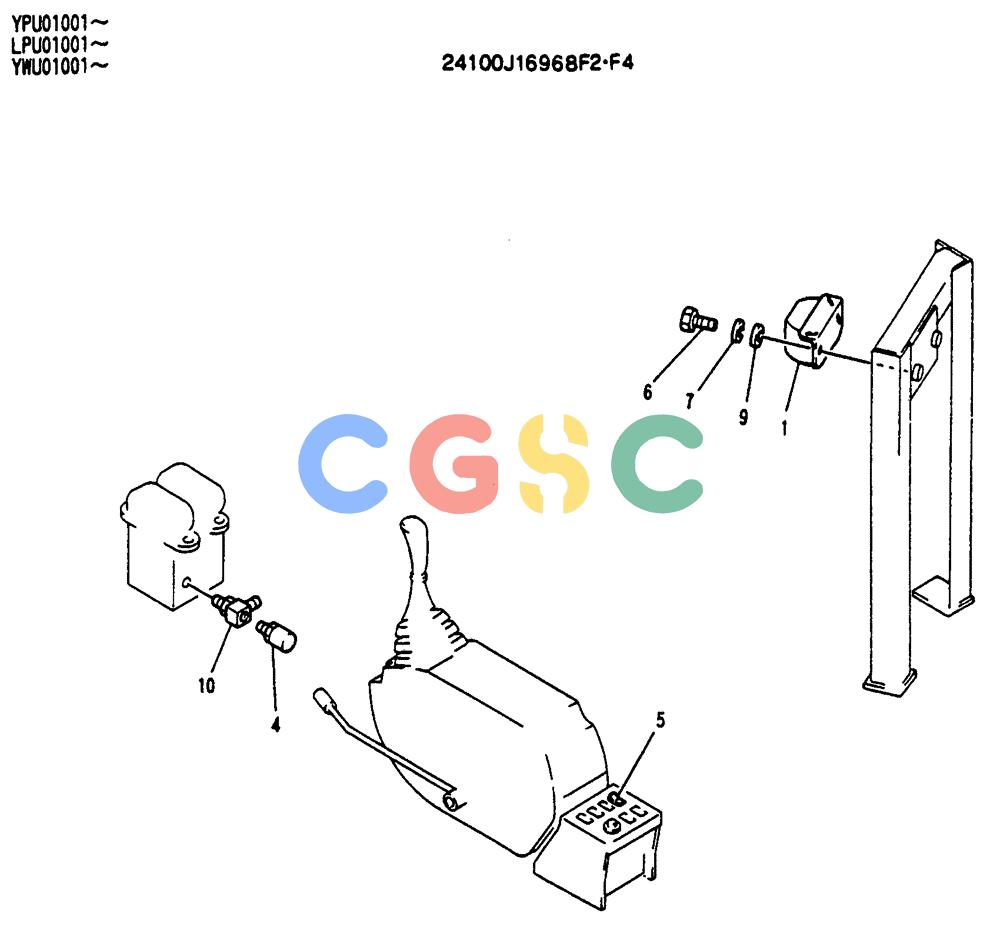

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J16968F2 | [1] | ALARM ASSY | |
| . . | 24100J16968F4 | [1] | ALARM ASSY | |
| 1. | 24100P4490F1 | [1] | ALARM ASSY | ALARM ASSY |
| 4. | 2479U1378 | [1] | PRESSURE SWITCH | KOB(F4 ONLY) Superseded by part number: 2479U2010 |
| 5. | 2479U1224F1 | [1] | SWITCH | KOB(BUZZER STOP) |
| 6. | ZS18C08030 | [2] | SCREW,Hex, M8 x 30mm | KOBM08x1.25x30mm |
| 7. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 9. | ZW16X08000 | [2] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 10. | 2444Z3833 | [1] | ELBOW | KOBELBOW (F4 ONLY) |
