神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (12-007) - SPOOL ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
227 次

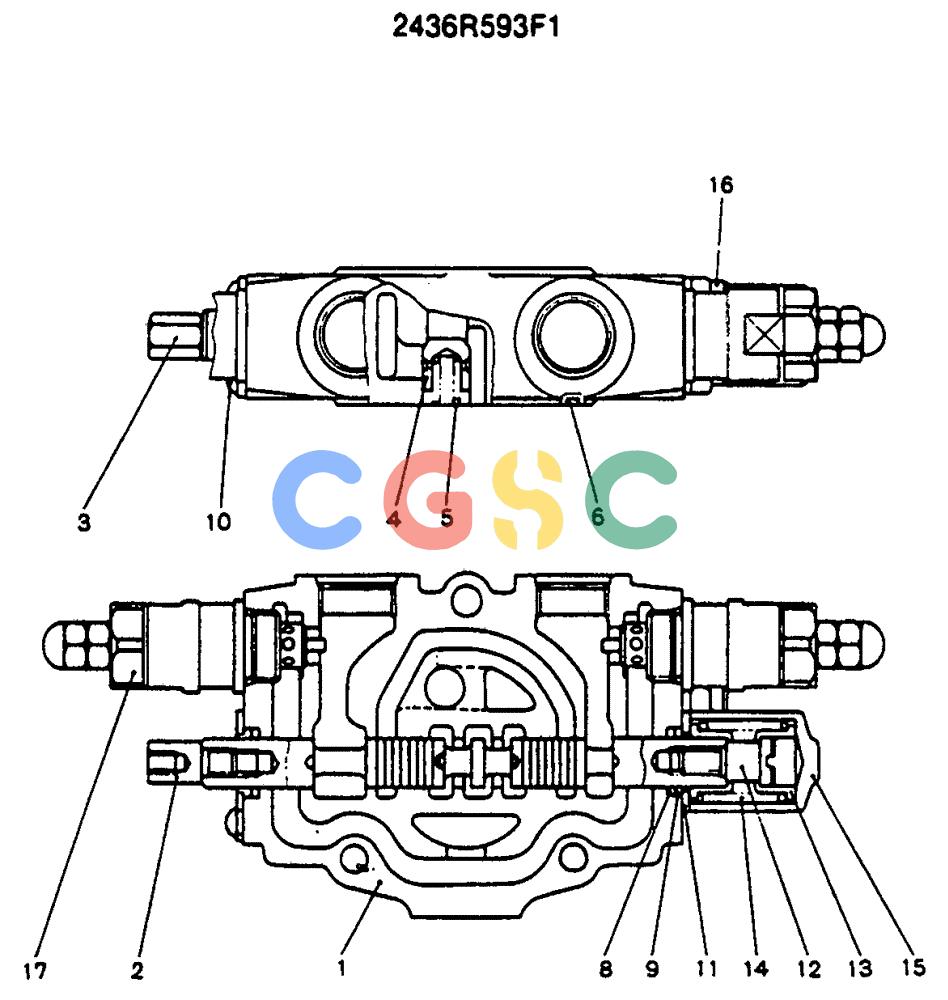

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R593F1 | [1] | PLUNGER | KOB |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 3. | 2436R593S3 | [1] | HEAD | |
| 4. | B36K0019E227 | [1] | POPPET | KOB |
| S. | B36K0019E226 | [1] | SPRING | KOB |
| 6. | B36K0019E212 | [1] | O-RING | KOB |
| 8. | 2436R593S8 | [2] | SEAL | KOB |
| 9. | 2436R593S9 | [2] | WIPER | KOB |
| 10. | ZS31C06010 | [2] | SCREW,Phillips Drive, Pan HD, M6 x 10mm | KOBM06x1.0x10mm |
| 11. | B36K0019E220 | [2] | PLATE | PLATE |
| 12. | B36K0019E221 | [1] | CAPSCREW | CAPSCREW |
| 13. | B36K0019E222 | [2] | SEAT, SPRING | SEAT, SPRING |
| 14. | 2436R593S14 | [1] | SPRING | |
| 15. | B36K0019E223 | [1] | CAP | KOB |
| 16. | ZS23C06022 | [2] | CAPSCREW,Hex Socket Head, M6 x 22mm | KOBSCREW M06x1.0x22mm |
| 17. | B36T0020F1 | [2] | VALVE PRESSURE RELIE | KOB |
