神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (12-008) - VALVE ASSY CONTROL (NIBBLER & BREAKER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
591 次

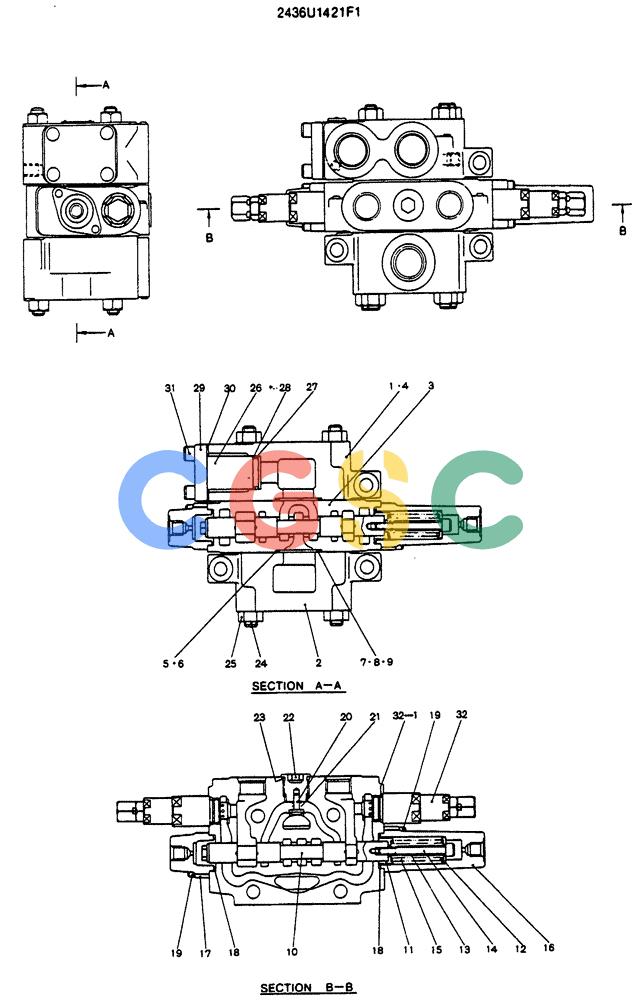

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U1421F1 | [1] | CONTROL VALVE | KOB |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 4. | 2436U1421S4 | [1] | PLUG | KOB Superseded by part number: ZE82T04000 |
| 5. | ZD12G03000 | [2] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOBID 29.4 ± 0.29 x OD 35mm |
| 6. | ZD12G04000 | [4] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 7. | 2483U156S23 | [2] | RING | KOB |
| 8. | 2483U156S24 | [2] | RING | KOB |
| 9. | 2483U156S25 | [2] | RING | KOB |
| 10. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 11. | 2436U1421S11 | [1] | SEAT, SPRING | |
| 12. | 2436U1421S12 | [1] | SEAT, SPRING | |
| 13. | 2436U1421S13 | [1] | SLEEVE | |
| 14. | ZS23C08070 | [1] | SCREW,Hex Socket Head, M8 x 70mm | KOBM08x1.25x70mm |
| 15. | 2436U1421S15 | [1] | SPRING | |
| 16. | 2436U1421S16 | [1] | CAP | |
| 17. | 2436U1421S17 | [1] | COVER,PILOT | |
| 18. | 2436U1421S18 | [2] | O-RING | KOB |
| 19. | ZS23C06025 | [4] | SCREW,Hex Socket Head, M6 x 25mm | KOBM06x1.0x25mm |
| 20. | 2483U173S16 | [1] | CAPSCREW | |
| 21. | 2483U156S17 | [1] | SPRING | KOB |
| 22. | 2483U156S18 | [1] | SPRING SEAT | KOB |
| 23. | 2483U156S15 | [1] | O-RING | KOB Superseded by part number: 2436U562S8 |
| 24. | 2436U1421S24 | [4] | BOLT | |
| 25. | ZN17C14011 | [4] | NUT | |
| 26. | 2436U2065S13 | [1] | PLUG | |
| 27. | ZD12P02800 | [1] | O-RING | KOBID 27.70 ± 0.27 x OD 34mm |
| 28. | ZD95P02800 | [1] | BACK-UP RING | KOB |
| 29. | 4036U4-14 | [1] | PLATE | |
| 30. | 4036U1-47 | [1] | PACKING | PACKING |
| 31. | ZS23C10025 | [4] | SCREW,Hex Socket Head, M10 x 25mm | KOBM10x1.50x25mm Superseded by part number: ZS28C10025 |
| 32. | 2436R879F1 | [2] | HYDRAULIC VALVE | KOB |
| 32-1. | 2483U156S15 | [2] | O-RING | KOB Superseded by part number: 2436U562S8 |
