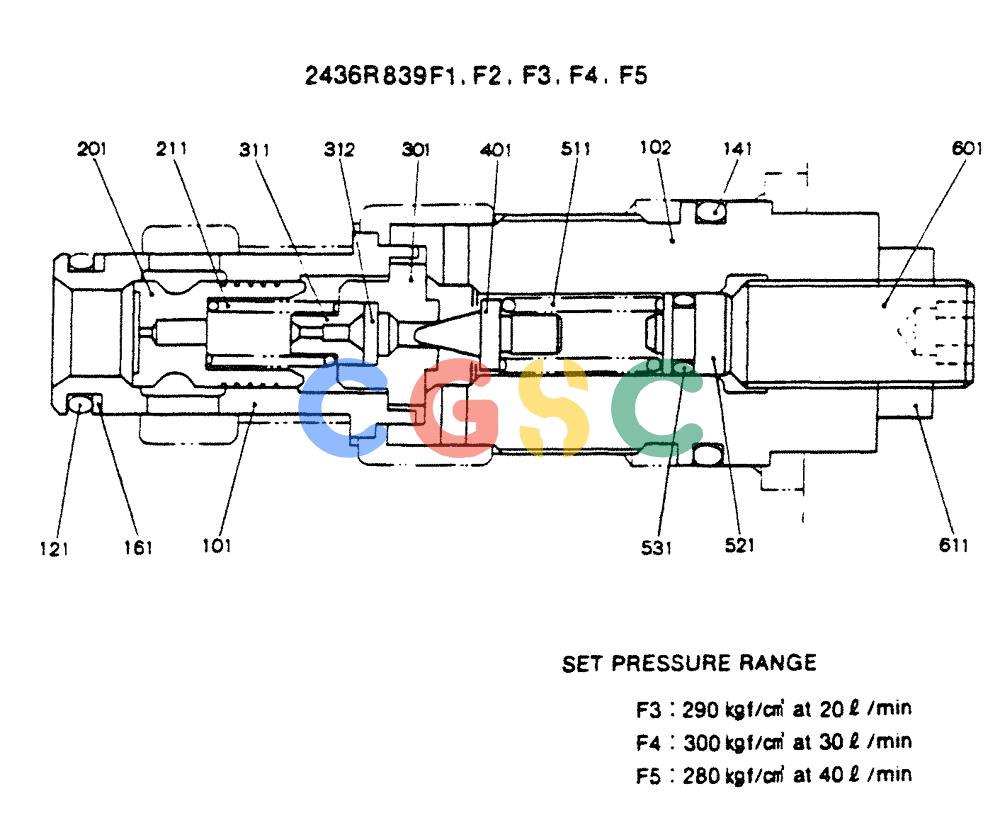

神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (12-013) - VALVE ASSY MAIN RELIEF Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
378 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R839F1 | [1] | VALVE ASSY, MAIN RELIEF | |
| . . | 2436R839F2 | [1] | VALVE ASSY, MAIN RELIEF | |
| . . | 2436R839F3 | [1] | VALVE PRESSURE RELIE | KOB |
| . . | 2436R839F4 | [1] | VALVE | KOBASSY, MAIN RELIEF |
| . . | 2436R839F5 | [1] | VALVE PRESSURE RELIE | KOB |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 102. | 2436R839S102 | [1] | PLUG | |
| 121. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 141. | ZD12G02500 | [1] | O-RING,24.40mm ID x 30.60mm OD x 3.10mm | KOBID 24.4 ± 0.25 x OD 30mm |
| 161. | 2436R840S161 | [1] | BACK-UP RING | KOB |
| 201. | NSS | [1] | NOT SOLD SEPARAT | CONPLUNGER |
| 211. | 2436R682S211 | [1] | SPRING | KOB |
| 301. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT |
| 311. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT SPRING |
| 312. | NSS | [1] | NOT SOLD SEPARAT | CONFILTER |
| 401. | 2436R682S401 | [1] | POPPET | KOB |
| 511. | 2436R683S621 | [1] | SPRING | KOB Superseded by part number: 2436R683S1 |
| 521. | 2436R682S521 | [1] | SEAT | KOB |
| 531. | ZD12P00600 | [1] | O-RING | KOBID 05.80 ± 0.15 x OD 09mm |
| 601. | 2436R682S2 | [1] | SET OF SCREWS | KOB Superseded by part number: 2436R682S601 |
| 611. | ZN11C12007 | [1] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12007 |
| . . | 2436R838R100 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 101, 201 |
| . . | 2436R838R200 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 301, 311, 312 |
