神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (12-014) - VALVE ASSY SEQUENCE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
404 次

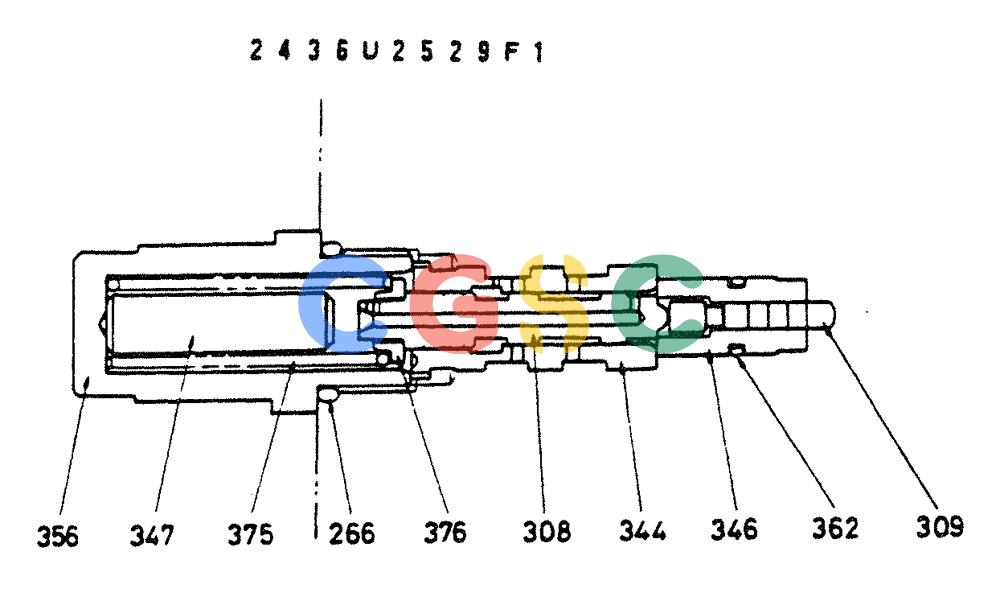

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U2529F1 | [1] | VALVE PRESSURE RELIE | KOB |
| 266. | ZD12P02000 | [1] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOBID 19.80 ± 0.22 x OD 24mm |
| 308. | 2436U2529S308 | [1] | PISTON | |
| 309. | 2436U2529S309 | [1] | PISTON | |
| 344. | 2436U2529S344 | [1] | SLEEVE | KOBSLEEVE |
| 346. | 2436U2529S346 | [1] | BUSHING | |
| 347. | 2436R771S347 | [1] | STOPPER | |
| 356. | 2436R771S356 | [1] | PLUG | |
| 362. | ZD12P00900 | [1] | O-RING | KOBID 08.80 ± 0.17 x OD 12mm |
| 375. | 2436U2529S375 | [1] | SPRING | KOB |
| 376. | 2436R771S376 | [1] | WASHER | KOB |
