| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

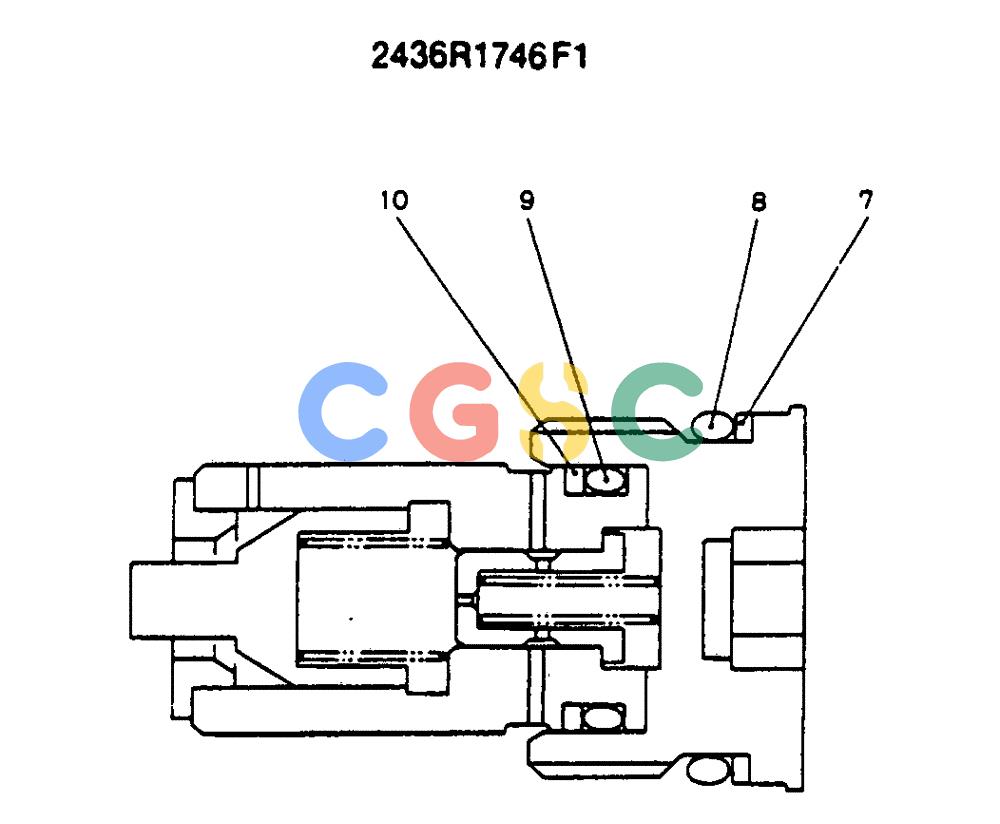

| . . | 2436R1746F1 | [1] | VALVE | KOBASSY, BYPASS |
| 7. | ZD85P02100 | [1] | RING | KOBBack-Up -- ID 21 x OD 25 x Th 1.25mm |
| 8. | ZD12P02100 | [1] | O-RING,2.4mm Thk x 20.8mm ID, 90 Duro | KOBO-Ring -- ID 20.80 ± 0.23 x OD 25mm |
| 9. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 10. | ZD85P01400 | [1] | RING | KOBBack-Up -- ID 14 x OD 18 x Th 1.25mm |
