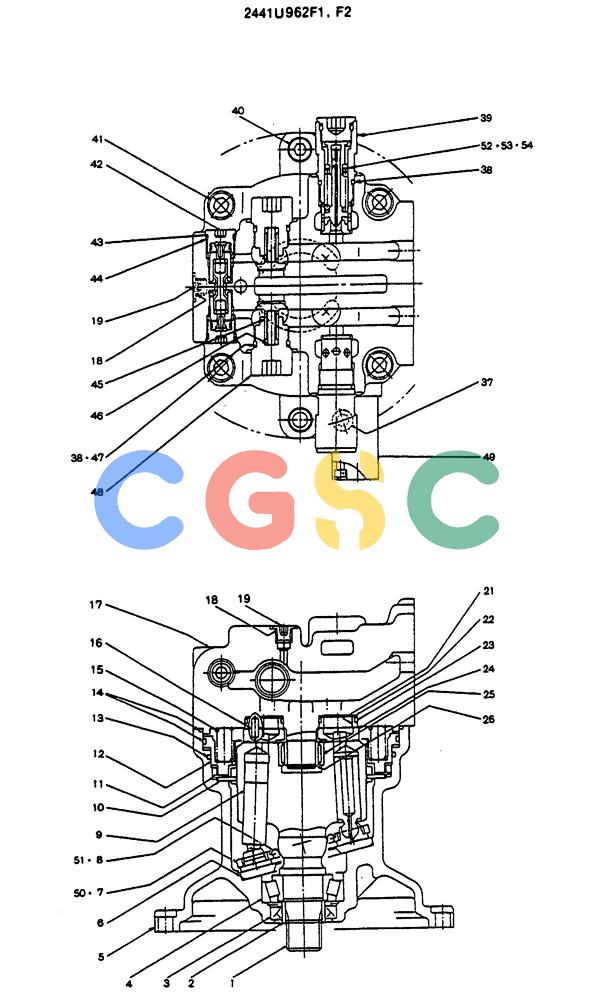

神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (12-015) - MOTOR ASSY (SWING) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
691 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2441U962F1 | [1] | MOTOR ASSY (SWING) | |
| . . | 2441U962F2 | [1] | HYDRAULIC MOTOR | KOBMOTOR ASSY (SWING) Superseded by part number: 2441U963F2 |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONCYLINDER |
| 2. | 2441U754S2 | [1] | RING | KOB |
| 3. | 2441U754S3 | [1] | OIL SEAL | KOB Superseded by part number: 2437U369S33 |
| 4. | 2441U754S4 | [1] | TRACK ROLLER | KOBBEARING |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONCASE |
| 6. | 2441U754S6 | [1] | PLATE | KOB |
| 7. | 2441U828S7 | [1] | PLATE, RETURN (FOR F1 ONLY) | |
| 8. | 2441U828S8 | [1] | SPRING, BACKING (FOR F1 ONLY) | |
| 9. | NSS | [9] | NOT SOLD SEPARAT | CONPISTON ASSY |
| 10. | 2441U754S10 | [1] | PLATE | KOB |
| 11. | 2441U754S11 | [1] | PLATE | KOB |
| 12. | NSS | [1] | NOT SOLD SEPARAT | CONPISTON |
| 13. | 2441U754S12 | [1] | O-RING | KOB |
| 14. | 2441U754S14 | [2] | RING | KOBO-RING |
| 15. | 2441U754S16 | [20] | SPRING | KOB |
| 16. | 2441U754S17 | [2] | PIN | KOB |
| 17. | NSS | [1] | NOT SOLD SEPARAT | CONCOVER |
| 18. | ZD12P01100 | [3] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 19. | 2436U1309S41 | [3] | CAP | KOB |
| 21. | 2441U754S23 | [4] | BUSHING | KOB |
| 22. | 2441U754S24 | [4] | SPRING | KOBCONED DISK |
| 23. | 2441U754S25 | [4] | RING | KOB |
| 24. | 2441U754S26 | [1] | PLATE | KOB |
| 25. | 2441U754S27 | [1] | NEEDLE BEARING | KOBBEARING |
| 26. | 2441U754S28 | [1] | RING | KOBSNAP RING |
| 37. | ZS23C12130 | [1] | SCREW,Hex Socket Head, M12 x 130mm | KOBM12x1.75x130mm |
| 38. | ZD12P02600 | [4] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 39. | 2436R1747F1 | [2] | VALVE PRESSURE RELIE | KOBVALVE ASSY |
| 40. | 2441U754S20 | [1] | PLUG | KOB Superseded by part number: 2441U829S33 |
| 41. | ZS23C14045 | [4] | SCREW,Hex Socket Head, M14 x 45mm | KOBM14x2.0x45mm Superseded by part number: ZS28C14045 |
| 42. | 2436R1746F1 | [2] | VALVE | KOBVALVE ASSY, BYPASS |
| 43. | ZD85P02100 | [2] | RING | KOBBack-Up -- ID 21 x OD 25 x Th 1.25mm |
| 44. | ZD12P02100 | [2] | O-RING,2.4mm Thk x 20.8mm ID, 90 Duro | KOBO-Ring -- ID 20.80 ± 0.23 x OD 25mm |
| 45. | 2441U963S45 | [2] | OIL COOLER FILTER VALVE, CHECK | OIL COOLER FILTER VALVE, CHECK |
| 46. | 2441U963S46 | [2] | SPRING | SPRING |
| 47. | ZD85P02600 | [2] | BACK-UP RING | KOBID 26 x OD 32 x Th 1.25mm |
| 48. | 2441U963S48 | [2] | PLUG CAP | PLUG CAP |
| 49. | 2436U1309F1 | [1] | HYDRAULIC VALVE | KOBVALVE ASSY, REDUCTION |
| 50. | 2441U962S50 | [1] | RETAINING PLATE | KOBRETURN, (FOR F2 ONLY) |
| 51. | 2441U962S51 | [1] | SPRING | KOBSEAT, (FOR F2 ONLY) |
| 52. | 2441U962S52 | [1] | SHIM | KOB(0.1) |
| 53. | 2441U962S53 | [1] | SHIM | KOB(0.3) |
| 54. | 2441U962S54 | [1] | SHIM | KOB(0.5) |
| . . | 2441U962R100 | [1] | SEAL KIT | KOBCYLINDER KIT CONSISTS OF REF. 1, 9 |
