神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (12-020) - VALVE ASSY BRAKE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
112 次

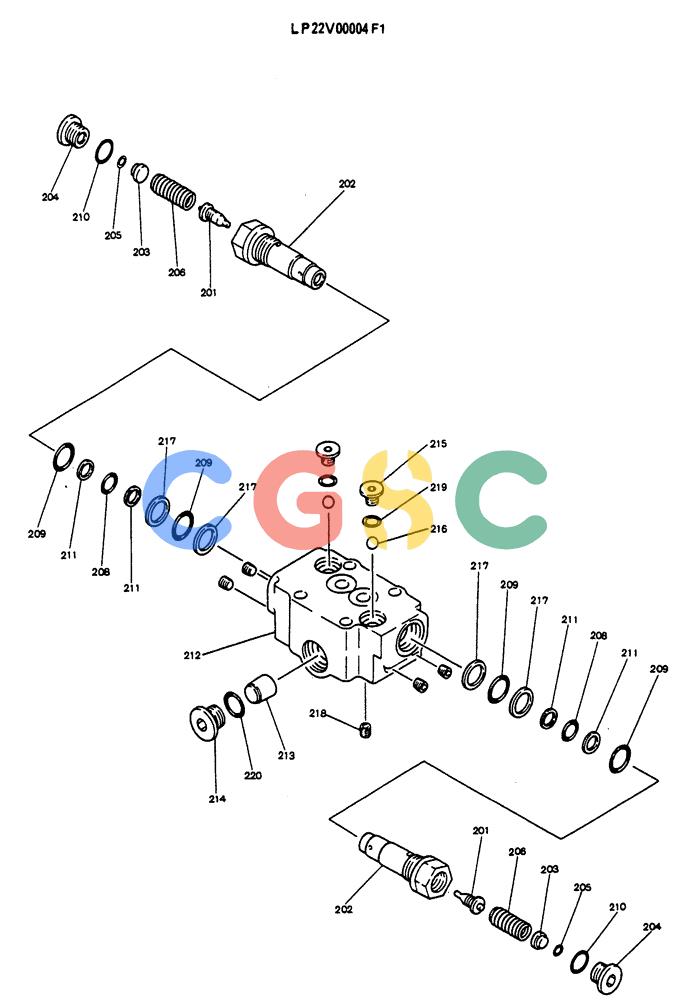

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LP22V00004F1 | [1] | VALVE | KOBBRAKE |
| 201. | NSS | [2] | NOT SOLD SEPARAT | CONVALVE |
| 202. | NSS | [2] | NOT SOLD SEPARAT | CONSLEEVE |
| 203. | NSS | [2] | NOT SOLD SEPARAT | CONSEAT, SPRING |
| 204. | NSS | [2] | NOT SOLD SEPARAT | CONPLUG |
| 205. | NSS | [2] | NOT SOLD SEPARAT | CONSHIM |
| 206. | NSS | [2] | NOT SOLD SEPARAT | CONSPRING |
| 208. | ZD12P01400 | [2] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 209. | ZD12P02000 | [4] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOBID 19.80 ± 0.22 x OD 24mm |
| 210. | ZD12P01600 | [2] | O-RING | KOBID 15.80 ± 0.20 x OD 20mm |
| 211. | ZD85P01400 | [4] | RING | KOBBack-Up -- ID 14 x OD 18 x Th 1.25mm |
| 212. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 213. | NSS | [1] | NOT SOLD SEPARAT | CONPISTON |
| 214. | 2441U995S121 | [1] | PLUG | KOB |
| 215. | 2441U995S192 | [2] | PLUG | KOB |
| 216. | 2441U815S26 | [2] | BALL | KOB |
| 217. | ZD75P02000 | [4] | BACK-UP RING | KOB |
| 218. | 2441U831S152 | [5] | PLUG | KOB |
| 219. | ZD12P01100 | [2] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 220. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| . . | LP22V00004R100 | [2] | REPAIR KIT | KOBCONSISTS OFREF 201-206, 208-211 Superseded by part number: LP22V00004F1 |
| . . | LP22V00004R200 | [1] | REPAIR KIT | KOBCONSISTS OF REF 212, 213 |
