神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (12-024) - PUMP ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
528 次

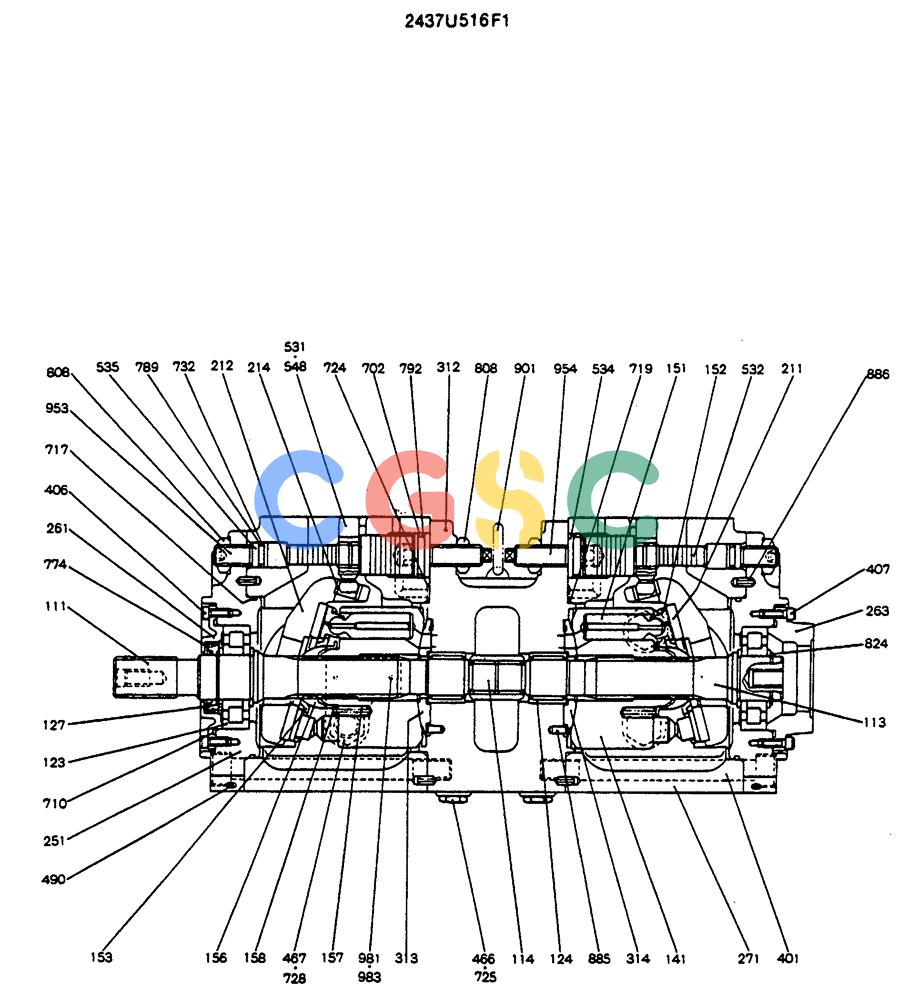

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2437U516F1 | [1] | PUMP ASSY | |
| 111. | 2437U188S111 | [1] | SHAFT | KOB(F) |
| 113. | 2437U412S113 | [1] | SHAFT | KOB(R) |
| 114. | 2437U188S114 | [1] | COUPLING | KOB |
| 123. | 2437U188S123 | [2] | BEARING | KOB |
| 124. | 2437U188S124 | [2] | BEARING | KOB Superseded by part number: YW10V00005S124 |
| 127. | 2441U478S5 | [4] | SPACER | KOB Superseded by part number: YW10V00003S127 |
| 141. | NSS | [2] | NOT SOLD SEPARAT | CONBLOCK, CYLINDER |
| 151. | NSS | [18] | NOT SOLD SEPARAT | CONPISTON |
| 152. | NSS | [18] | NOT SOLD SEPARAT | CONSHOE |
| 153. | 2437U188S153 | [2] | PLATE | KOB |
| 156. | 2437U188S156 | [2] | BUSHING | KOB Superseded by part number: YW10V00005S156 |
| 157. | 2437U188S157 | [18] | SPRING | KOB |
| 158. | 2437U188S158 | [2] | THRUST RING | KOB |
| 211. | 2437U188S211 | [2] | PLATE | KOBSHOE |
| 212. | NSS | [2] | NOT SOLD SEPARAT | CONPLATE |
| 214. | NSS | [2] | NOT SOLD SEPARAT | CONBUSHING |
| 251. | 2437U188S251 | [2] | PLATE | KOBRETAINER |
| 261. | 2437U188S261 | [1] | COVER | KOBSEAL |
| 263. | 2437U188S263 | [1] | COVER | KOB |
| 271. | 2437U188S271 | [2] | CASING | KOBCASE |
| 312. | 2437U188S312 | [1] | BLOCK | KOBVALVE |
| 313. | NSS | [1] | NOT SOLD SEPARAT | CONPLATE, VALVE |
| 314. | NSS | [1] | NOT SOLD SEPARAT | CONPLATE, VALVE |
| 401. | 2437U188S401 | [8] | CAPSCREW | KOBSCREW |
| 406. | ZS23C06016 | [4] | SCREW,Hex Socket Head, M6 x 16mm | KOBM06x1.0x16mm Superseded by part number: ZS28C06016 |
| 407. | ZS23C06020 | [4] | SCREW,Hex Socket Head, M6 x 20mm | KOBM06x1.0x20mm Superseded by part number: ZS28C06020 |
| 466. | 2441U667S466 | [2] | PLUG | KOB1/4" PF |
| 467. | 2441U436S468 | [3] | PLUG | KOB |
| 490. | 2441U722S490 | [15] | PLUG | KOB1/16" NPTF |
| 531. | NSS | [2] | NOT SOLD SEPARAT | CONLEVER |
| 532. | 2437U188S532 | [2] | PISTON | KOBPISTON |
| 534. | 2437U188S534 | [2] | POPPET | KOBSTOPPER |
| 535. | 2437U188S535 | [2] | STOP | KOB |
| 548. | NSS | [2] | NOT SOLD SEPARAT | CONPIN |
| 702. | ZD12G03000 | [2] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOBID 29.4 ± 0.29 x OD 35mm |
| 710. | ZD12G08500 | [2] | O-RING,84.40mm ID x 90.60mm OD x 3.10mm | KOBID 84.40 ± 0.73 x OD 90mm |
| 717. | ZD12G12000 | [2] | O-RING,3.1mm Thk x 119.4mm ID, 90 Duro | KOBO-Ring -- ID 119.40 ± 0.98 x OD 125mm |
| 719. | ZD12G11500 | [2] | O-RING,114.40mm ID x 120.60mm OD x 3.10mm | KOBID 114.40 ± 0.94 x OD 120mm |
| 724. | ZD12P00800 | [18] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOBID 7.8mm x OD 9.7mm |
| 725. | ZD12P01100 | [2] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 728. | ZD12P01800 | [3] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 732. | ZD12P01600 | [2] | O-RING | KOBID 15.80 ± 0.20 x OD 20mm |
| 774. | 2441U478S26 | [1] | OIL SEAL | KOB Superseded by part number: 2441U122-24 |
| 789. | ZD85P01600 | [2] | RING | KOBBACK UP |
| 792. | ZD85G03000 | [2] | BACK-UP RING | KOBID 30 x OD 35 x Th 1.25mm |
| 808. | ZN11C16010 | [4] | NUT | KOBM16x2.0mm |
| 824. | ZR16X03500 | [2] | RING | KOBRetaining -- ID 32.20 x OD 35 x Th 1.6mm |
| 885. | 2441U436S886 | [2] | PIN | KOB |
| 886. | ZP26D06014 | [4] | PIN | KOBRoll -- OD 06 x 14mm Long |
| 901. | ZS91C01000 | [2] | BOLT | KOBEye -- M10x1.50x18mm |
| 953. | 2437U188S953 | [2] | CAP,M10 x 20mm | KOBSETSCREW |
| 954. | 2437U188S954 | [2] | SCREW | KOBSET |
| 981. | 2437U407S981 | [1] | LABEL | KOBNAME PLATE |
| 983. | 2437U407S983 | [2] | RIVET | KOB |
