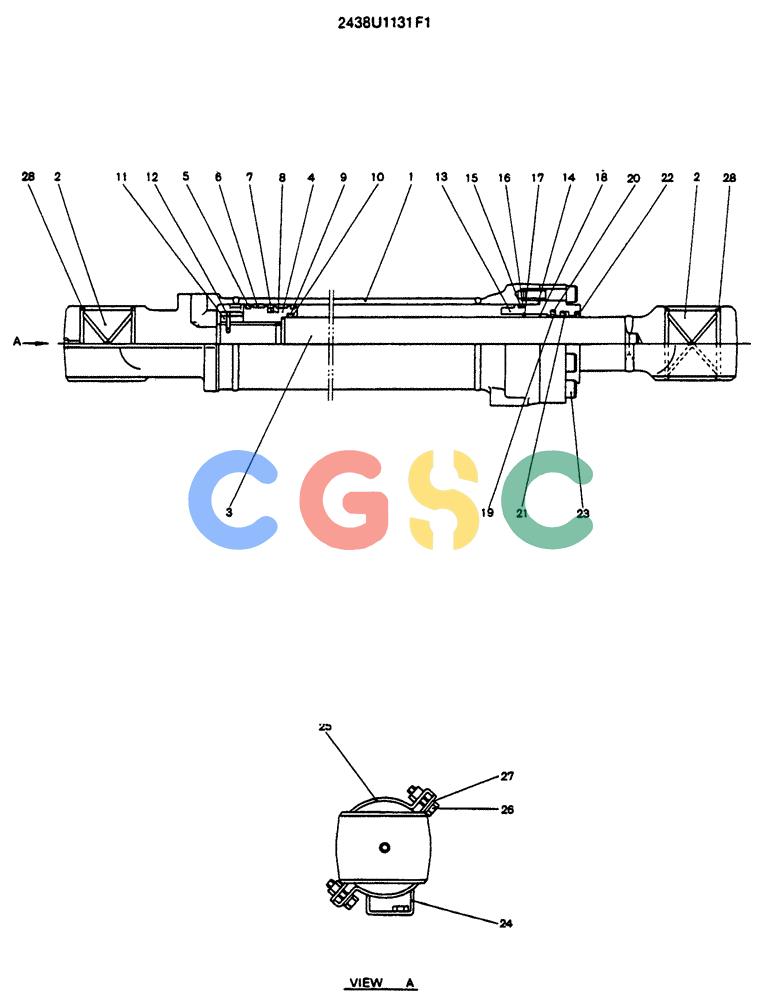

神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (12-025) - CYLINDER ASSY (BUCKET) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
314 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2438U1131F1 | [1] | CYLINDER | KOBASSY (BUCKET) |
| 1. | 2438U1131S1 | [1] | BARREL | KOB |
| 2. | 2438U1097S2 | [2] | BUSHING | KOB |
| 3. | 2438U1131S3 | [1] | PISTON ROD | KOB |
| 4. | 2438U974S5 | [1] | PISTON | KOBPISTON |
| 5. | 2438U974S6 | [2] | RING | KOB |
| 6. | R45T0098D1 | [2] | PISTON RING | KOBPISTON |
| 7. | 2438U504S7 | [1] | SEAL | KOB |
| 8. | 2438U504S8 | [1] | O-RING | KOB |
| 9. | ZD12G06500 | [1] | O-RING,64.40mm ID x 70.60mm OD x 3.10mm | KOBID 64.40 ± 0.57 x OD 70mm |
| 10. | 2438U515S26 | [2] | BACK-UP RING | KOB Superseded by part number: ZD75G06500 |
| 11. | 2438U738S10 | [1] | NUT | KOB |
| 12. | 2438U974S13 | [1] | LOCKING RING | KOBSNAP |
| 13. | 2438U1131S13 | [1] | COVER | KOBROD |
| 14. | ZD12G10000 | [1] | O-RING,99.40mm ID x 105.60mm OD x 3.10mm | KOBID 99.40 ± 0.85 x OD 105mm |
| 15. | ZD12G09500 | [1] | O-RING,3.1mm Thk x 94.4mm ID, 90 Duro | KOBO-Ring -- ID 94.40 ± 0.81 x OD 100mm |
| 16. | ZD75G09500 | [1] | BACK-UP RING | KOB |
| 17. | B38K0038E10 | [1] | CLIP | KOBRING, SNAP |
| 18. | 2438U1097S18 | [1] | BUSHING | KOB |
| 19. | R45P0050D6 | [1] | SEAL | KOB |
| 20. | R45P0051D16 | [1] | O-RING | KOB Superseded by part number: 45Z91D16 |
| 21. | 2438U897S18 | [1] | PACKING | KOBPACKING, ROD |
| 22. | 2438U908S27 | [1] | SEAL | KOB |
| 23. | ZS23C14055 | [8] | SCREW,Hex Socket Head, M14 x 55mm | KOBM14x2.0x55mm |
| 24. | 2438U897S26 | [1] | U-BRACKET | KOBBRACKET |
| 25. | 2438U897S22 | [1] | CLAMP | KOBBRACKET |
| 26. | ZS16C10030 | [2] | CAPSCREW | KOBSCREW M10x1.50x30mm Superseded by part number: ZS18C10030 |
| 27. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 28. | 2438U1097S29 | [4] | SEAL | KOB |
| . . | 2438U1131R100 | [1] | REPAIR KIT | KOBCONSISTS OF REF 14-16, 19-22 Superseded by part number: 2438U1131R100P |
| . . | 2438U1131R200 | [1] | REPAIR KIT | KOBCONSISTS OFREF 5-10 Superseded by part number: 2438U1131R200P, 2438U974R200 |
| . . | 2438U1131R300 | [1] | REPAIR KIT | KOBCONSISTS OF REF 5-10, 14-16, 19-22 Superseded by part number: 2438U1131R300P, 77256979 |
