神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (12-030) - VALVE ASSY OVERLOAD RELIEF Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
477 次

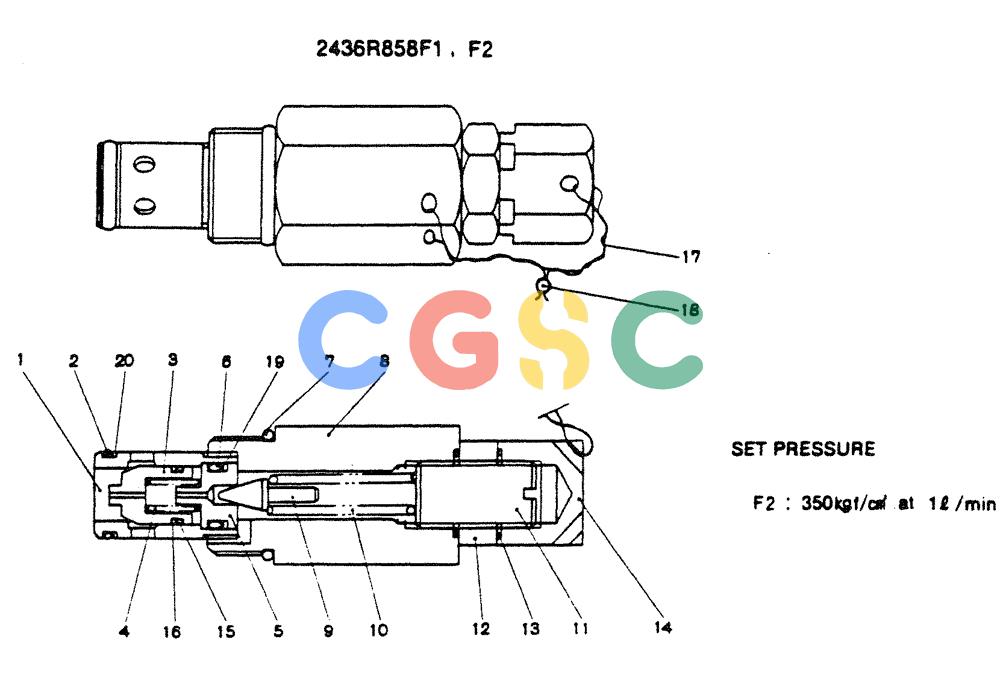

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R858F1 | [1] | VALVE PRESSURE RELIE | KOBASSY, OVERLOAD |
| . . | 2436R858F2 | [1] | PILOT VALVE | KOBASSY, OVERLOAD RELIEF |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 2. | ZD12P01500 | [1] | O-RING | KOBID 14.80 ± 0.20 x OD 19mm |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONPLUNGER |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT |
| 6. | ZD12P01090 | [1] | O-RING | KOBID 09.80 ± 0.17 x OD 14mm |
| 7. | ZD12P02200 | [1] | O-RING | KOBID 21.80 ± 0.24 x OD 26mm |
| 8. | NSS | [1] | NOT SOLD SEPARAT | CONPLUG |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONPOPPET |
| 10. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 11. | NSS | [1] | NOT SOLD SEPARAT | CONSCREW, ADJUSTING |
| 12. | NSS | [1] | NOT SOLD SEPARAT | CONLOCK NUT |
| 13. | NSS | [2] | NOT SOLD SEPARAT | CONO-RING |
| 14. | NSS | [1] | NOT SOLD SEPARAT | CONCAP NUT |
| 15. | 2483R200S7 | [1] | O-RING | KOB |
| 16. | 2483R143S8 | [1] | RING, BACK UP | RING, BACK UP |
| 17. | NSS | [1] | NOT SOLD SEPARAT | CONWIRE |
| 18. | NSS | [1] | NOT SOLD SEPARAT | CONLOCK, WIRE |
| 19. | ZD85P01090 | [1] | RING | KOBBACK-UP |
| 20. | 2436R715S23 | [1] | BACK-UP RING | KOB |
