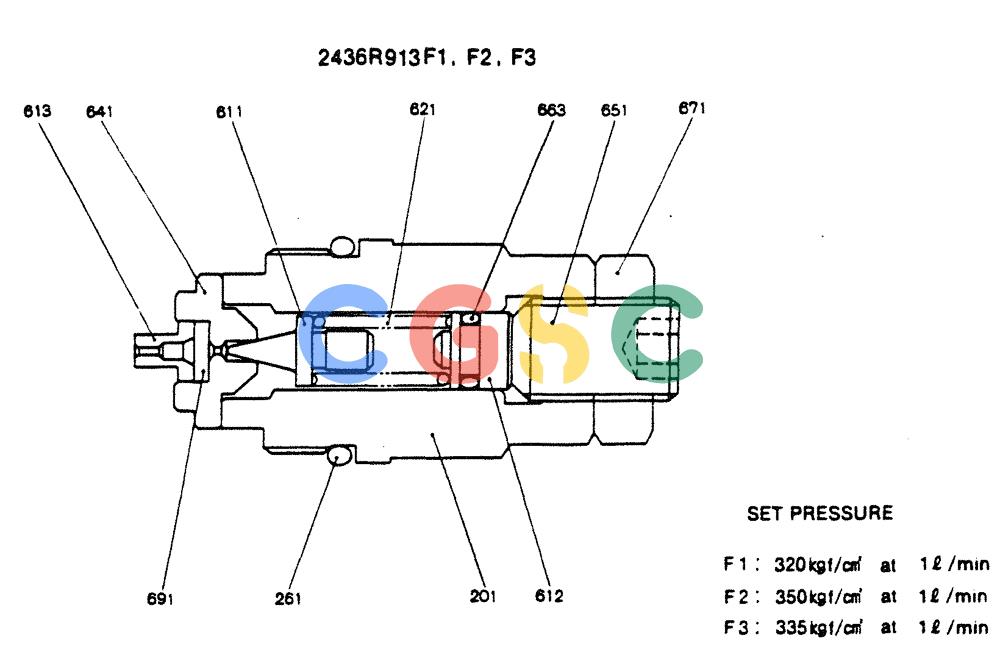

神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (12-031) - VALVE ASSY RELIEF Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
694 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R913F1 | [1] | VALVE | KOB |
| . . | 2436R913F2 | [1] | VALVE PRESSURE RELIE | KOB |
| . . | 2436R913F3 | [1] | VALVE | KOB |
| 201. | 2436R683S201 | [1] | PLUG | KOB |
| 261. | ZD12P02200 | [1] | O-RING | KOBID 21.80 ± 0.24 x OD 26mm |
| 611. | 2436R682S401 | [1] | POPPET | KOB |
| 612. | 2436R682S521 | [1] | SEAT | KOBSPRING |
| 613. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT,SPRING |
| 621. | 2436R683S1 | [1] | SPRING | KOB |
| 641. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT |
| 651. | 2436R683S651 | [1] | SET SCREW | KOB |
| 663. | ZD12P00600 | [1] | O-RING | KOBID 05.80 ± 0.15 x OD 09mm |
| 671. | ZN11C12007 | [1] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12007 |
| 691. | NSS | [1] | NOT SOLD SEPARAT | CONFILTER |
