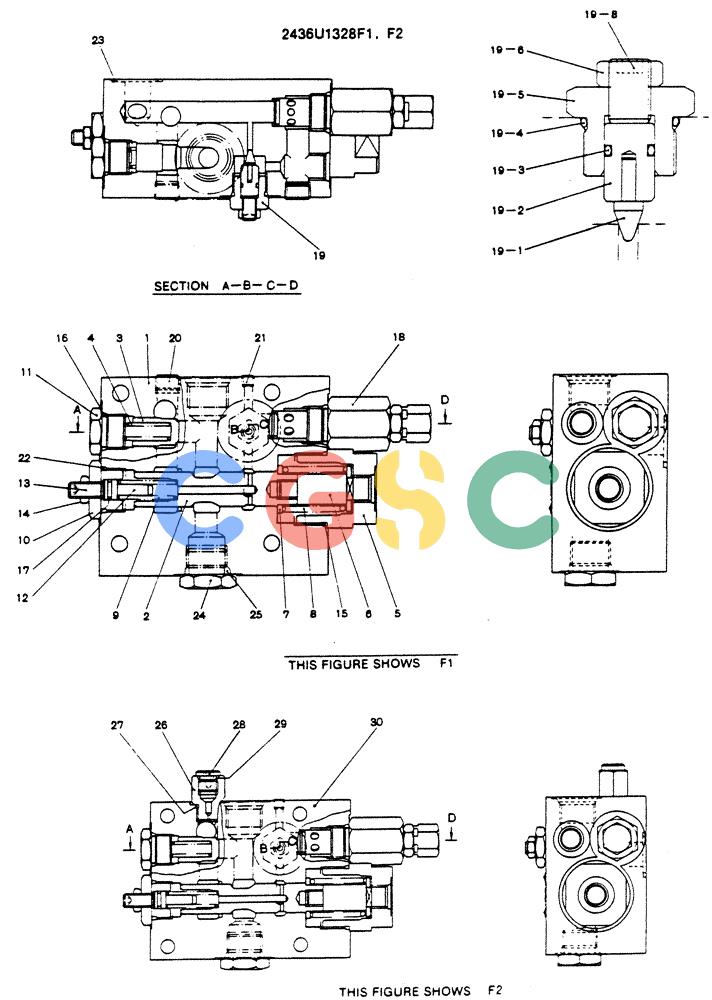

神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (12-036) - VALVE ASSY HOLDING (2436U1328F1, F2) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
814 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U1328F1 | [1] | VALVE, HOLDING ASSY | VALVE, HOLDING ASSY |
| . . | 2436U1328F2 | [1] | VALVE | KOBVALVE ASSY, HOLDING |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONBODY(FOR F1 ONLY) |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONVALVE |
| 4. | 2483U276S4 | [1] | SPRING | |
| 5. | 2436U1328S5 | [1] | PLUG | |
| 6. | 2436U1328S6 | [1] | SEAT, SPRING | |
| 7. | 2436U1328S7 | [1] | SEAT, SPRING | |
| 8. | 2436U1328S8 | [1] | SPRING | |
| 9. | 2436U1328S9 | [1] | SPRING | KOB Superseded by part number: 2436U1311S10 |
| 10. | 2436U1328S10 | [1] | PLUG | |
| 11. | 2436U1328S11 | [1] | PLUG | |
| 12. | 2436U1328S12 | [1] | SEAT,SPRING | |
| 13. | 2436U1328S13 | [1] | SETSCREW | |
| 14. | ZN16C10006 | [1] | NUT | NUT |
| 15. | ZD12G04000 | [1] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 16. | 2483U156S14 | [1] | O-RING | KOB |
| 17. | ZD12P01000 | [1] | O-RING | KOBID 09.80 ± 0.17 x OD 13mm |
| 18. | 2436R858F2 | [1] | PILOT VALVE | KOBOVERLOAD RELIEF |
| 19. | 2436R859F1 | [1] | VALVE | KOBASSY, STOP |
| 19-1. | 2483R156S11 | [1] | HYDRAULIC VALVE | KOBPOPPET |
| 19-2. | 2436R859S2 | [1] | VALVE GUIDE | KOBSEAT |
| 19-3. | ZD12P00900 | [1] | O-RING | KOBID 08.80 ± 0.17 x OD 12mm |
| 19-4. | 2483U156S14 | [1] | O-RING | KOB |
| 19-5. | 2436R859S5 | [1] | PLUG | |
| 19-6. | 2436R859S6 | [1] | NUT | |
| 19-8. | 2436R859S8 | [1] | SETSCREW | |
| 20. | ZE82T06000 | [3] | PLUG | KOBPipe, 3/8" PT |
| 21. | 2436U279S3 | [2] | PLUG | KOB |
| 22. | 2483U156S15 | [1] | O-RING | KOB Superseded by part number: 2436U562S8 |
| 23. | ZD12P02800 | [1] | O-RING | KOBID 27.70 ± 0.27 x OD 34mm |
| 24. | 2483U178S42 | [1] | PLUG | |
| 25. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 26. | 2436U1328S26 | [1] | BUSHING (FOR F2 ONLY) | |
| 27. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm, (FOR F2 Only) |
| 28. | 2436U1317S13 | [1] | PLUG | KOB(FOR F2 ONLY) |
| 29. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm, (FOR F2 Only) |
| 30. | NSS | [1] | NOT SOLD SEPARAT | CONBODY (FOR F2 ONLY) |
