神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (12-035) - VALVE ASSY SOLENOID Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
589 次

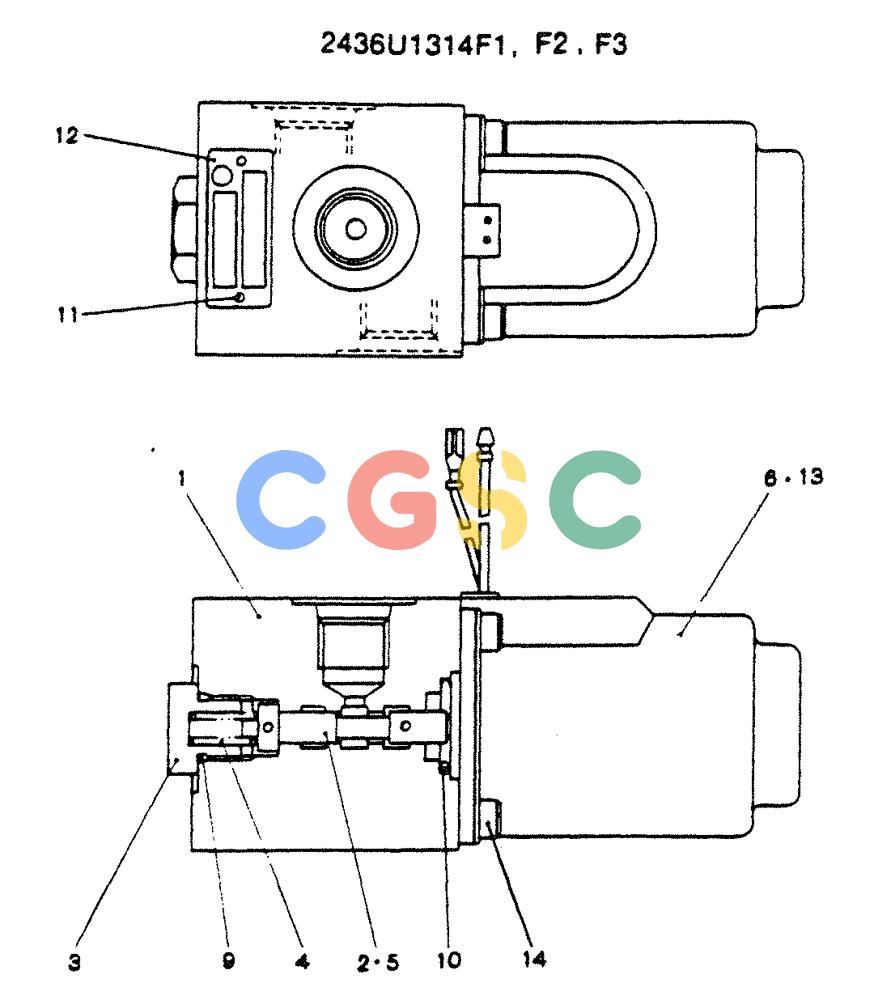

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U1314F1 | [1] | VALVE | KOBASSY, SOLENOID |
| . . | 2436U1314F2 | [1] | SOLENOID VALVE | KOBASSY |
| . . | 2436U1314F3 | [1] | SOLENOID VALVE | KOBASSY Superseded by part number: YA35V00009F1 |
| 1. | 2436U2159S1 | [1] | BODY | |
| 2. | 2436U2158S2 | [1] | SPOOL(FOR F1,F3 ONLY) | |
| 3. | 2436U2159S3 | [1] | PLUG | KOB |
| 4. | 2436U2159S4 | [1] | SPRING | |
| 5. | 2436U2159S7 | [1] | SPOOL(FOR F2 ONLY) | |
| 6. | 2436U1314S6 | [1] | SOLENOID | HIT |
| 9. | ZD12P01000 | [1] | O-RING | KOBID 09.80 ± 0.17 x OD 13mm |
| 10. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 11. | 2436U1487S35 | [2] | RIVET | KOB |
| 12. | 2436U2159S12 | [1] | NAME PLATE | |
| 13. | 2436U1314S13 | [1] | SOLENOID VALVE | KOB(FOR F3 ONLY) |
| 14. | 2436U1314S14 | [4] | CAPSCREW | |
