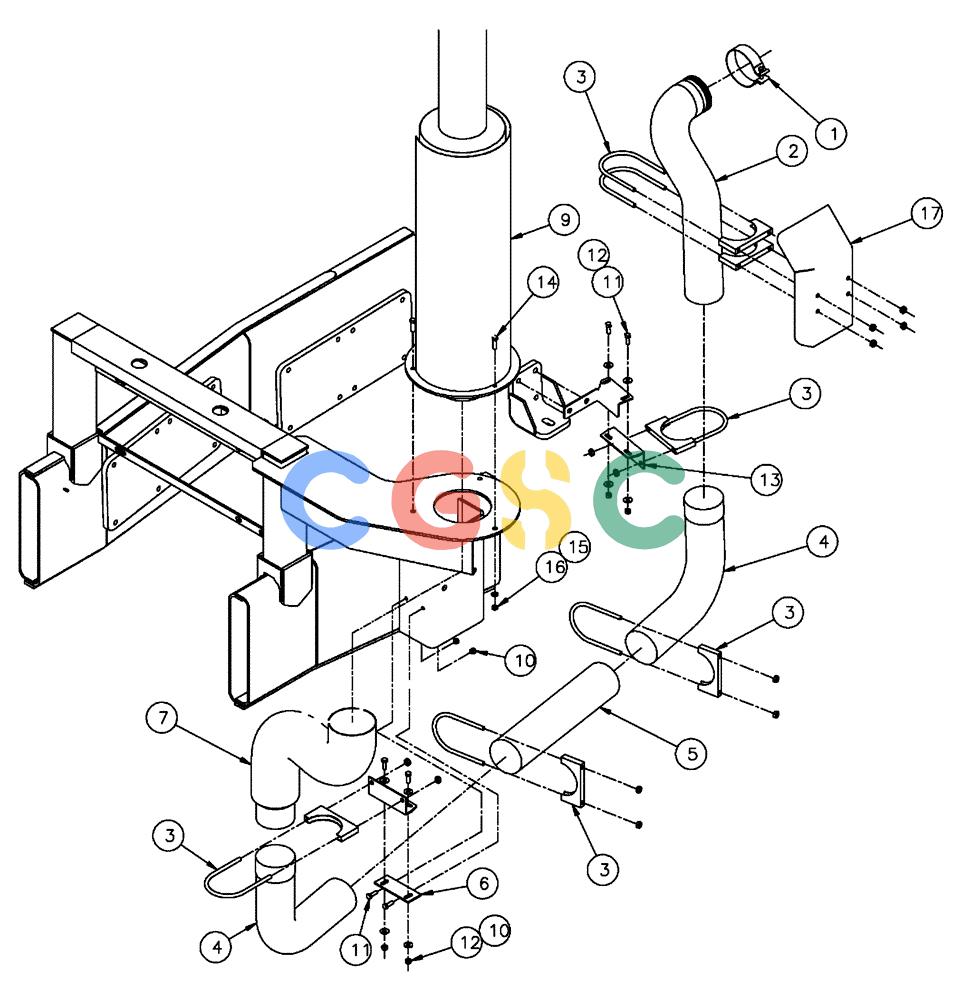

凯斯零件查询(FLX3300B) - FLOATER - 2002 (9/02-10/03) (02-016) - AIR EXHAUST GROUP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
152 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
A170807
|
[1] |
CLAMP,102mm ID
|
CAS
4" T-Bolt
|
| 2. |
BN314410
|
[1] |
TUBE
|
BN
Exhaust
|
| 3. |
BN25927
|
[6] |
CLAMP,104.8mm ID
|
BN
4" Muffler
|
| 4. |
BN314752
|
[2] |
ELBOW
|
BN
90, Exhaust
|
| 5. |
BN303467
|
[1] |
HOSE,4.00" ID x 18.00"
|
BN
|
| 6. |
BN314753
|
[1] |
BRACKET
|
BN
Exhaust Hanger
|
| 7. |
BN314409
|
[1] |
TUBE
|
BN
Exhaust
|
| 9. |
BN311343
|
[1] |
MUFFLER
|
BN
Assembly, 14-1800 CFM, See Fig 02-015 Superseded by part number: BN313591, BN313590, BN313588, BN313589, BN313593, 84289019
|
| 10. |
86528579
|
[8] |
NUT,M8 x 1.25
|
WIN
|
| 11. |
120104
|
[8] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 12. |
86624185
|
[8] |
WASHER,8.8mm ID x 17.5mm OD x 2mm Thk
|
FOR
|
| 13. |
BN314754
|
[2] |
BRACKET
|
BN
Exhaust Hanger
|
| 14. |
43140
|
[3] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 15. |
BN300490
|
[3] |
BOLT
|
BN
M10, FW, 8.8 Superseded by part number: 86625252
|
| 16. |
100037
|
[3] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 17. |
BN318814
|
[1] |
SHIELD
|
BN
Heat, 4" Elbow
|
