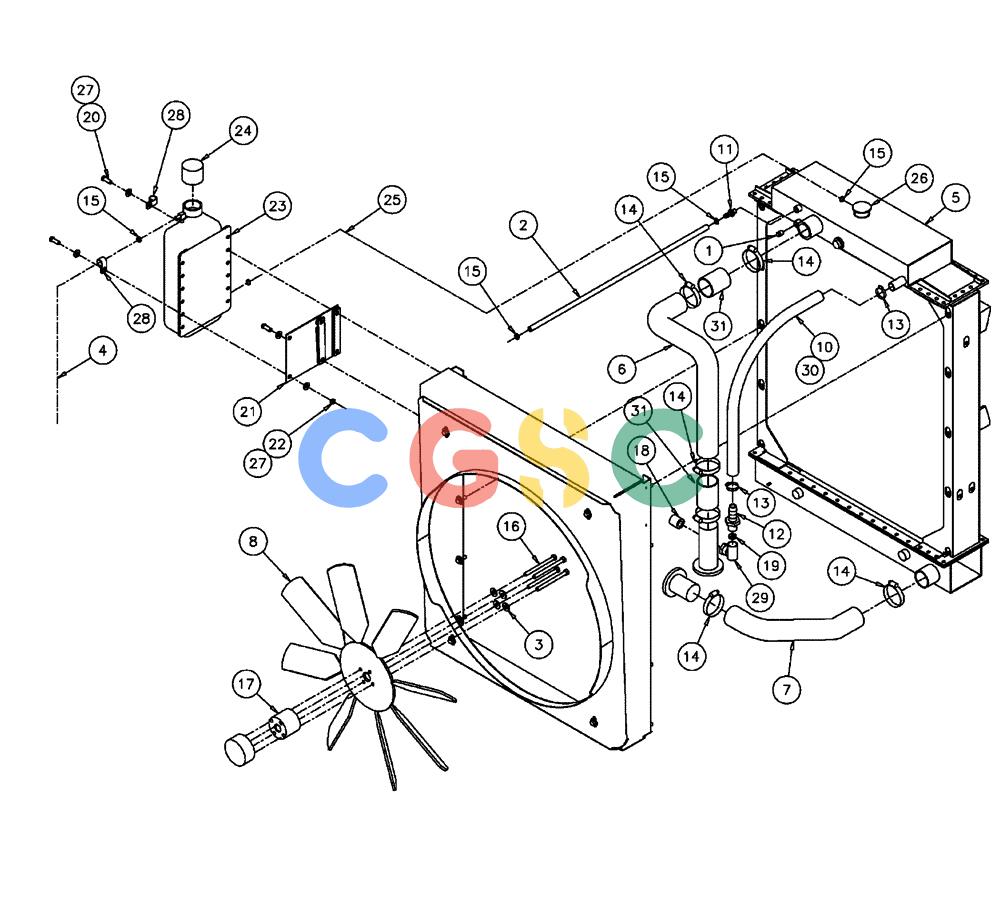

凯斯零件查询(FLX3300B) - FLOATER - 2002 (9/02-10/03) (02-017) - RADIATOR COMPONENTS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
1002 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
9617020
|
[1] |
PLUG,1/4" - 18 x 0.48"
|
NH
|
| 2. |
BN316636
|
[1] |
HOSE,0.38" ID x 40.00", SAE 30R6, SAE 30R7
|
BN
Fuel
|
| 3. |
BN300499
|
[10] |
WASHER,M10, 10.9
|
BN
Superseded by part number: 896-11010
|
| 4. |
BN314898
|
[1] |
HOSE,0.31" ID x 50.00"
|
BN
|
| 5. |
BN307183
|
[1] |
RADIATOR
|
TYR
30 X 36 Core
|
| 6. |
BN319910
|
[1] |
TUBE
|
BN
Top 3 Wheel Radiator
|
| 7. |
BN314540
|
[1] |
RADIATOR HOSE,2.25" ID x 17.19" , SAE J20, SAE 20R4
|
BN
Lower
|
| 8. |
BN314881
|
[1] |
FAN
|
BN
30", 300HP CDC
|
| 10. |
BN314899
|
[1] |
HOSE,1.00" ID x 48.00", SAE 100R17, SAE 100R1, SAE 100R2
|
BN
|
| 11. |
BN72017
|
[1] |
HOSE
|
BN
barb-1/4" NPTM x 3/8" steel
|
| 12. |
BN305700
|
[1] |
FITTING
|
BN
12MP-16HB
|
| 13. |
BN75978
|
[2] |
HOSE CLAMP
|
BN
SS - #12 ADJ HS .56-1.25 Superseded by part number: BN310446
|
| 14. |
J918521
|
[6] |
HOSE CLAMP,59mm - 83mm
|
CAS
Radiator (59-83MM)
|
| 15. |
BN76094
|
[5] |
HOSE CLAMP
|
BN
SS #M4 Superseded by part number: 87485000
|
| 16. |
43253
|
[4] |
BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9
|
WIN
|
| 17. |
A184751
|
[1] |
SPACER,Fan, 74/75mm Thk
|
CAS
Fan, 75 mm
|
| 18. |
BN51679
|
[1] |
ADAPTER
|
BN
Ft, Adapter, 3/4 NPT x 3/4 NPSM, ML
|
| 19. |
BN321139
|
[1] |
ORIFICE
|
BN
3/8"
|
| 20. |
43128
|
[6] |
BOLT,M8 x 1.25 x 30mm, Cl 8.8
|
NH
|
| 21. |
BN318614
|
[1] |
BASE PLATE
|
BN
Mount, Recovery Bottle
|
| 22. |
86528579
|
[2] |
NUT,M8 x 1.25
|
WIN
|
| 23. |
90-7717T2
|
[1] |
RESERVOIR
|
CAS
Tank, Coolant Recovery Superseded by part number: 87481454
|
| 24. |
1547924C1
|
[1] |
CAP
|
IH
coolant recovery bottle Superseded by part number: 440729A1
|
| 25. |
BN315971
|
[1] |
HOSE,0.31" ID x 40.00"
|
BN
|
| 26. |
A170241
|
[1] |
RADIATOR CAP
|
CAS
15 psi Superseded by part number: 83957211
|
| 27. |
BN300497
|
[6] |
WASHER,M8, 10.9
|
BN
Superseded by part number: 896-15008
|
| 28. |
86624005
|
[2] |
CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type
|
FOR
|
| 29. |
BN321138
|
[1] |
HOSE
|
BN
12FP-12FPx90
|
| 30. |
BN304292
|
[1] |
COVER
|
BN
Nylon Hose 1.42 ID
|
| 31. |
342320A1
|
[2] |
HOSE,2.25" ID x 4.00"
|
BN
|
