神钢零件查询(SK130LC) - EXCAVATOR BTW YPU1001 - YPU2000 (1/98-12/98) (12-044) - JOINT ASSY SWIVEL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
598 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

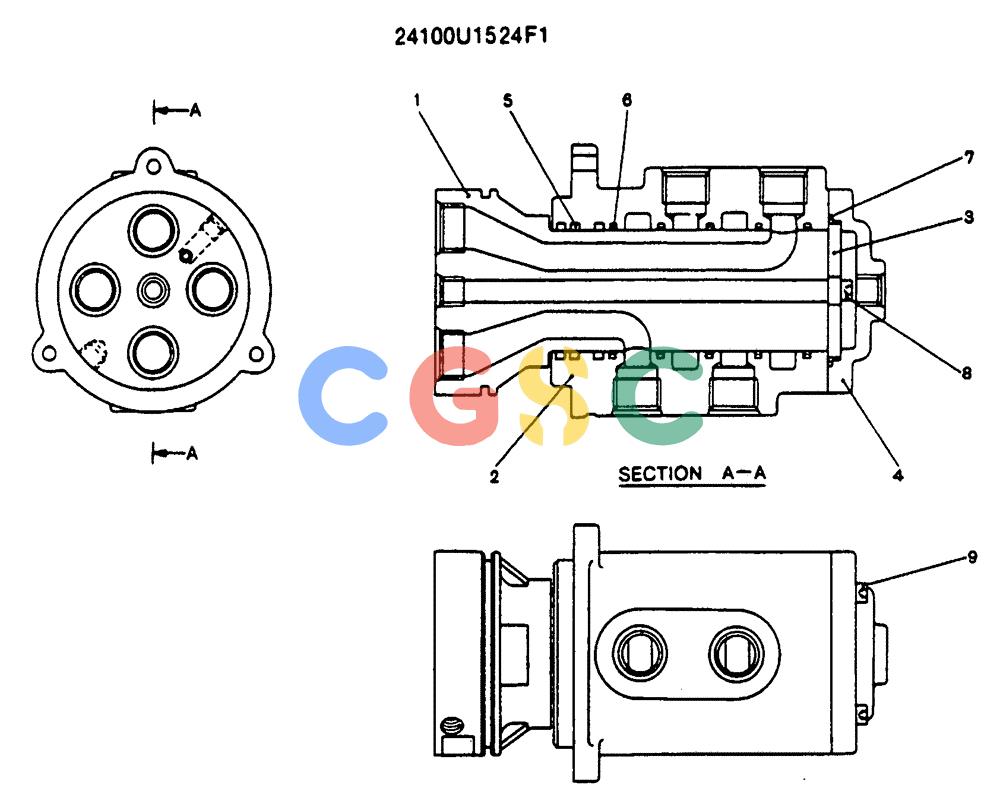

| . . | 24100U1524F1 | [1] | FLEXIBLE JOINT | KOBASSY, SWIVEL |
| 1. | 24100U1524S1 | [1] | STEM | KOBBODY |
| 2. | 24100U1524S2 | [1] | BODY HOUSING | BODY HOUSING |
| 3. | 24100U1524S3 | [1] | PLATE | HITTHRUST |
| 4. | 24100U1524S4 | [1] | COVER | KOB |
| 5. | 24100U1524S5 | [2] | O-RING | KOB Superseded by part number: ZD11P08000 |
| 6. | 2445Z736 | [5] | GASKET | KOBSEAL ASSY |
| 7. | 24100U1524S7 | [1] | O-RING | KOB |
| 8. | ZS23C08020 | [2] | SCREW,Hex Socket Head, M8 x 20mm | KOBM08x1.25x20mm |
| 9. | ZS23C08030 | [4] | SCREW,Hex Socket Head, M8 x 30mm | KOBM08x1.25x30mm Superseded by part number: ZS28C08030 |
