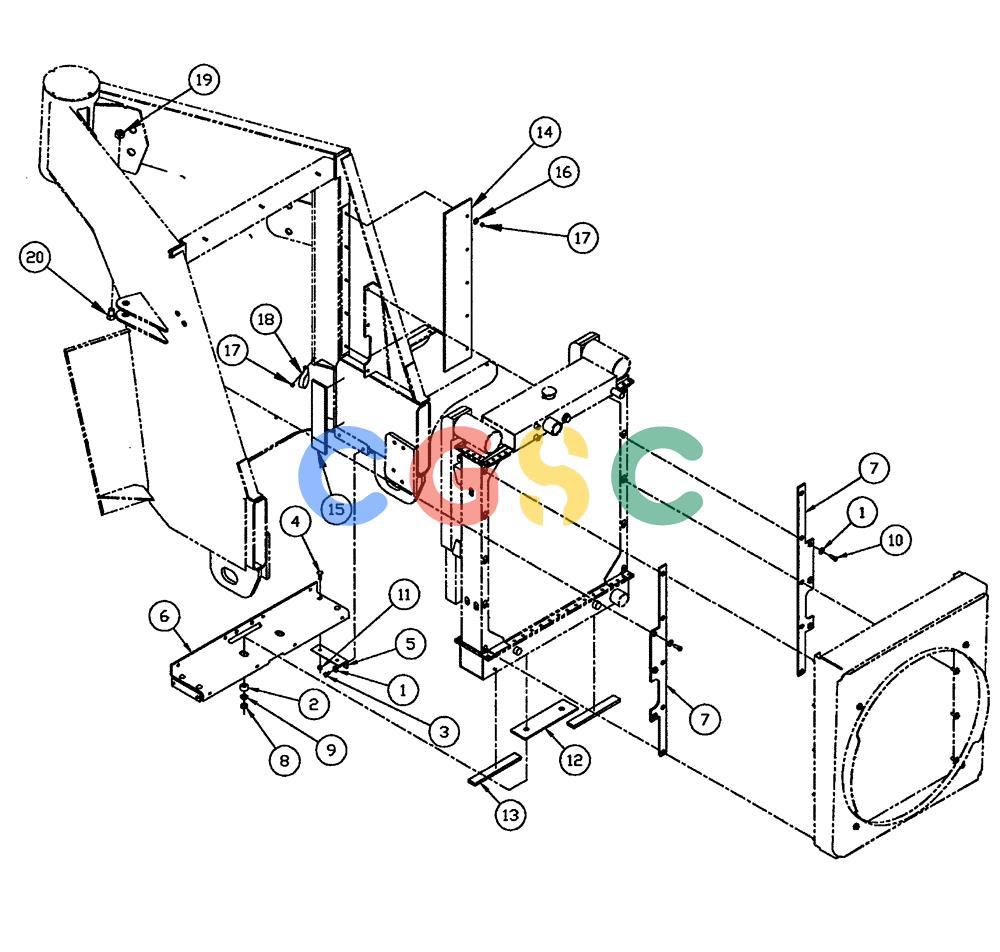

凯斯零件查询(FLX3300B) - FLOATER - 2002 (9/02-10/03) (02-020) - RADIATOR MOUNTING ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
756 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN50145
|
[10] |
WASHER
|
BN
3/8, FW, G5 Superseded by part number: 87529312
|
| 2. |
BN2297363
|
[2] |
MOUNTING PLATE
|
BN
Isolator 200106R1
|
| 3. |
414-610
|
[4] |
3/8-24 X .625, HH, G8
|
|
| 4. |
86508749
|
[4] |
CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5
|
GI
|
| 5. |
BN302291
|
[2] |
MOUNTING PLATE
|
BN
Radiator
|
| 6. |
BN302292
|
[1] |
MOUNTING PLATE
|
BN
Radiator
|
| 7. |
BN314691
|
[2] |
MOUNTING PLATE
|
BN
Radiator, RS
|
| 8. |
86637650
|
[2] |
NUT,5/8"-18, GB
|
FAR
Superseded by part number: 83991073
|
| 9. |
BN50155
|
[2] |
WASHER,17.48mm ID x 44.45mm OD x 3.05mm Thk
|
BN
5/8", G5
|
| 10. |
88206
|
[6] |
BOLT,Hex, 3/8" - 16 x 1", Gr 5
|
NH
|
| 11. |
88902
|
[4] |
NUT,3/8"-16
|
NH
|
| 12. |
BN7146236
|
[1] |
RADIATOR
|
BN
Pad
|
| 13. |
BN322520
|
[2] |
FOAM
|
BN
Radiator Bottom
|
| 14. |
BN324848
|
[2] |
RUBBER SEAL
|
BN
Rubber, Radiator
|
| 15. |
BN324854
|
[2] |
FOAM INSULATION
|
BN
Radiator Seal
|
| 16. |
BN315876
|
[10] |
WASHER
|
BN
1/4 Fender x 1.25 SS black
|
| 17. |
280129
|
[11] |
NUT,1/4"-20
|
NH
|
| 18. |
BN570022
|
[1] |
CLAMP
|
BN
vinyl coated 1/2" Superseded by part number: 86010402
|
| 19. |
280375
|
[1] |
NUT,3/4"-10, GC
|
WIN
|
| 20. |
413-1216
|
[1] |
BOLT,Hex, 3/4" - 10 x 1", Gr 5
|
CAS
|
