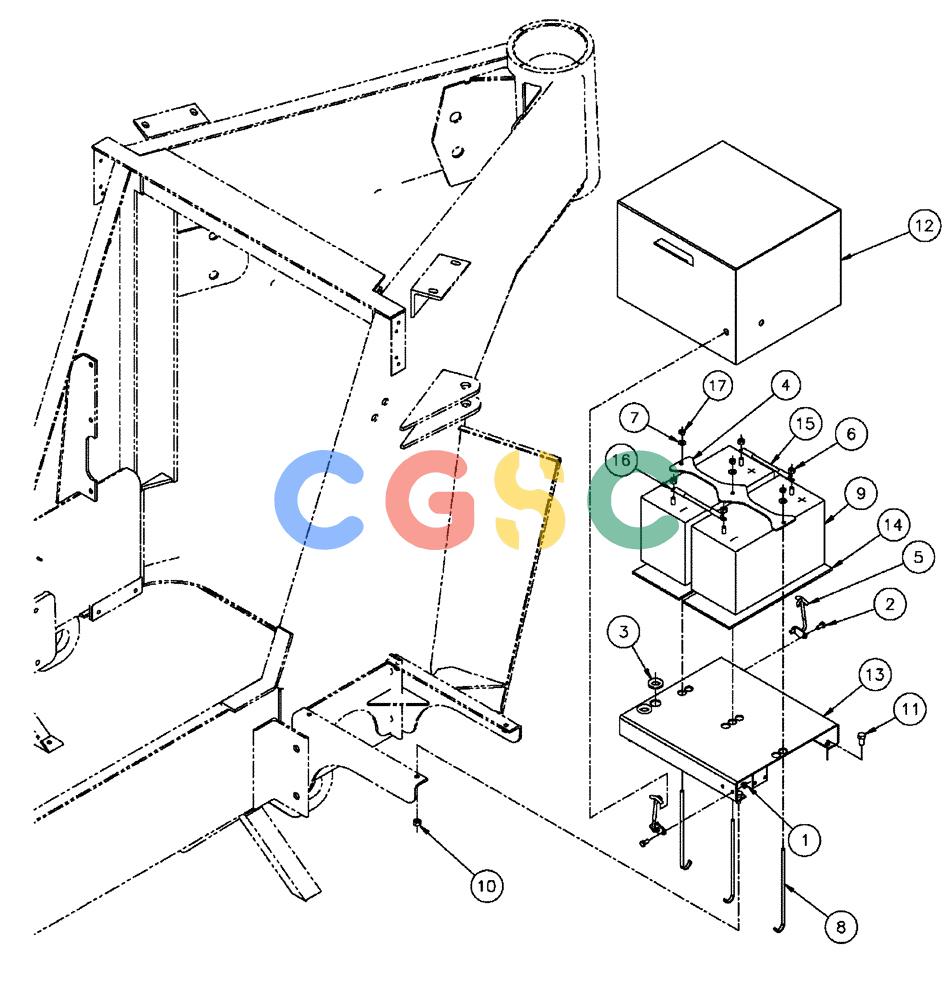

凯斯零件查询(FLX3300B) - FLOATER - 2002 (9/02-10/03) (02-021) - BATTERY GROUP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
550 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN1470402C
|
[4] |
FLANGE NUT
|
BN
1/4-20, FLN, G8 Superseded by part number: 280129
|
| 2. |
280641
|
[4] |
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
|
BAS
|
| 3. |
BN2290753
|
[2] |
GROMMET
|
BN
2870 (7/8" Hole)
|
| 4. |
BN321501
|
[1] |
CLAMP
|
BN
Holddown, Battery
|
| 5. |
BN2293347
|
[2] |
CATCH
|
BN
5171531
|
| 6. |
BN2294482
|
[4] |
FLANGE NUT
|
BN
Flange SS 3/8 Nc
|
| 7. |
BN2303143
|
[3] |
WASHER
|
BN
Flat, 5/16 Superseded by part number: 80701
|
| 8. |
BN2390287
|
[3] |
BOLT
|
BN
Battery 390-005
|
| 9. |
91734C1
|
[2] |
WET BATTERY
|
IH
12V, 950CCA, Stud Superseded by part number: BMF31GS
|
| 10. |
BN305108
|
[4] |
FLANGE BOLT,3/8" - 16, SST
|
BN
3/8-16, FLN, SS
|
| 11. |
BN50254
|
[4] |
BOLT,3/8"-16 x 1", Stainless
|
BN
|
| 12. |
BN7140021
|
[1] |
LID
|
TYR
Battery Box
|
| 13. |
BN7140024
|
[1] |
BOX
|
BN
Battery Base Weldment
|
| 14. |
BN7140027
|
[2] |
PAD
|
BN
Battery
|
| 15. |
BN320013
|
[1] |
CABLE
|
BN
Positive, Battery
|
| 16. |
BN320014
|
[1] |
CABLE
|
BN
Negative, Battery
|
| 17. |
BN55361
|
[3] |
NUT,5/16"-18, Nylon, Stainless
|
BN
|
