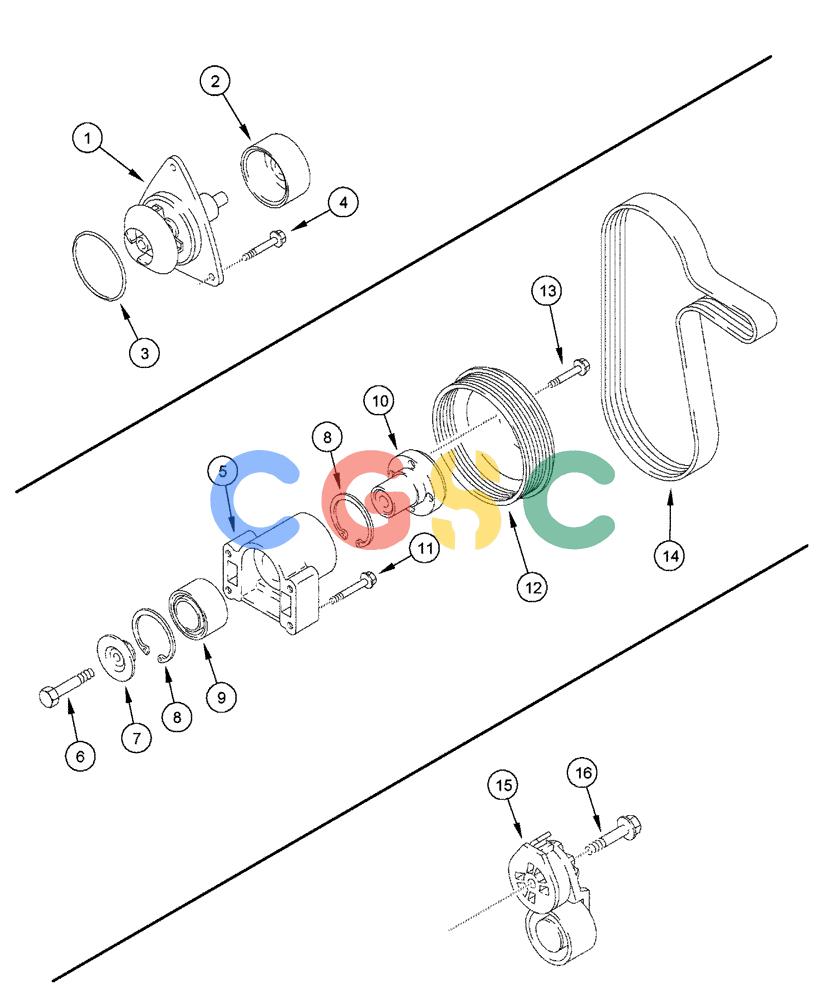

| 0. |
J804927
|
[1] |
WATER PUMP
|
CAS
Kit Superseded by part number: 87308650
|
| . . |
87308650R
|
[1] |
REMAN-WATER PUMP
|
RAC
FLX3300B (9/02-10/03) Reman for New P/N J804927
|
| . . |
87308650C
|
[1] |
CORE-WATER PUMP
|
RAC
Return Number
|
| 1. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Pump - Water
|
| 3. |
238-5244
|
[1] |
O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro
|
CAS
Superseded by part number: 455025
|
| 4. |
J934054
|
[3] |
FLANGE BOLT
|
CAS
Hex, Flange, 8 - 1.25 X 28 MM Superseded by part number: 9671714
|
| 5. |
J942896
|
[1] |
SUPPORT
|
CAS
Assembly-Fan
|
| 6. |
J907769
|
[1] |
BOLT,Hex, M10 x 70mm, Cl 12.9
|
CAS
hex, special, M10 x 70 mm, class 12.9
|
| 7. |
J923044
|
[1] |
RETAINER
|
CAS
Fan Hub Superseded by part number: J923044AM
|
| 8. |
100-21250
|
[2] |
SNAP RING,2.50", Int, #250
|
CAS
Superseded by part number: 34039
|
| 9. |
J910739
|
[1] |
BALL BEARING,35mm ID x 64mm OD x 37mm W
|
CAS
|
| 10. |
J911924
|
[1] |
HUB
|
CAS
Fan
|
| 11. |
9804264
|
[4] |
FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8
|
NH
Superseded by part number: 16587625
|
| 12. |
J926855
|
[1] |
PULLEY,187.23mm OD
|
CAS
Fan
|
| 13. |
86050286
|
[4] |
FLANGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
| 14. |
J944840
|
[1] |
V-BELT,27.92 mm W x 1988.60 mm L, 8 Ribs
|
CAS
Fan Superseded by part number: 87457995
|
| 15. |
J945849
|
[1] |
BELT TENSIONER
|
CAS
Belt Superseded by part number: 87436755AM
|
| 16. |
J282433
|
[1] |
FLANGE BOLT,Hex, M10 x 1.5 x 85mm
|
CAS
|
