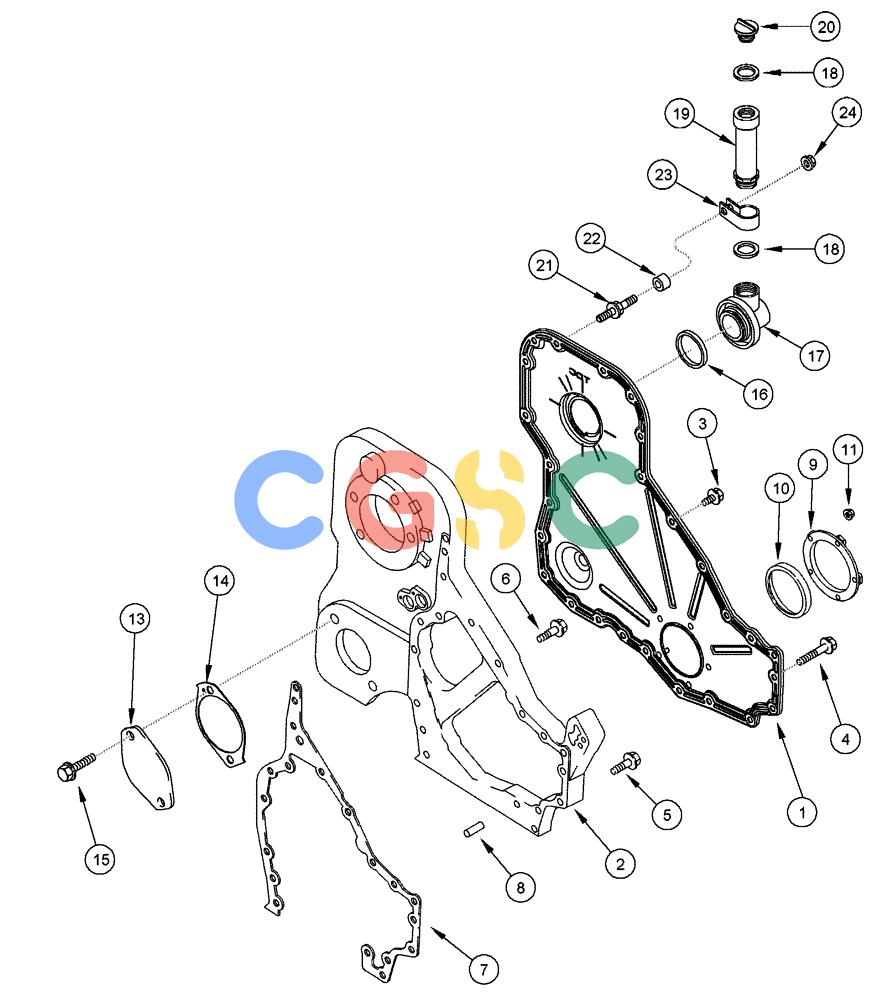

凯斯零件查询(FLX3300B) - FLOATER - 2002 (9/02-10/03) (02-027) - FRONT GEAR COVER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
884 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
J943813
|
[1] |
HOUSING
|
CAS
Cover - Gear, Front
|
| 2. |
J945595
|
[1] |
COVER
|
CAS
Housing - Gear Superseded by part number: 84373527
|
| 3. |
845-8016
|
[13] |
BOLT,Hvy Hex, M8 x 16mm, Cl 8.8
|
CAS
|
| 4. |
J926863
|
[11] |
FLANGE BOLT
|
CAS
Hex Flange, 8 - 1.25 X 50 MM, Class 10.9
|
| 5. |
J926846
|
[3] |
FLANGE BOLT
|
CAS
Hex Flange, 8 - 1.25 X 20 MM, Class 10.9
|
| 6. |
J943885
|
[3] |
BOLT
|
CAS
Hex Flange, 8 - 1.25 X 40 MM
|
| 7. |
J944293
|
[1] |
GASKET,1.01mm Thk
|
CAS
Front Gear Housing
|
| 8. |
J900257
|
[2] |
PIN,10.01mm OD x 16mm L
|
CAS
10 mm x 16 mm long Superseded by part number: J900257AM
|
| 9. |
J941786
|
[1] |
CARRIER
|
CAS
Front Seal
|
| 10. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Seal - Oil, Front
|
| 11. |
J938077
|
[5] |
LOCK NUT
|
CAS
Hex Flange, 6 MM - 1 Superseded by part number: 87493304
|
| 12. |
J823494
|
[1] |
SEALANT
|
CAS
Superseded by part number: ZPX18572
|
| 13. |
J940246
|
[1] |
COVER
|
CAS
Plate
|
| 14. |
J940245
|
[1] |
GASKET,1.27mm Thk
|
CAS
Superseded by part number: J940245AM
|
| 15. |
86624962
|
[2] |
BOLT,Hex, M12 x 25mm, Cl 10.9, Full Thd
|
IMO
|
| 16. |
J903475
|
[1] |
SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk
|
CAS
Front Access Cover Superseded by part number: J903475AM
|
| 17. |
J921644
|
[1] |
ADAPTER
|
CAS
Connector - Engine Oil Fill
|
| 18. |
J936876
|
[2] |
SEALING RING,30mm ID x 48mm OD x 2.8mm Thk
|
RAC
Fill Cap
|
| 19. |
J914738
|
[1] |
TUBE,32 mm ID x 38 mm OD x 138 mm L
|
CAS
Oil Filler
|
| 20. |
J914136
|
[1] |
CAP
|
CAS
Oil Fill Tube
|
| 21. |
J921816
|
[1] |
SPECIAL BOLT
|
CAS
Stud - Hex Flange, 6 - 1 X 8 - 1.25 MM
|
| 22. |
J943408
|
[1] |
SPACER
|
CAS
Mounting
|
| 23. |
A77695
|
[1] |
MOUNTING CLIP
|
CAS
#20 Clamp - P-Type
|
| 24. |
9804276
|
[1] |
FLANGE NUT,Hex, M6 x 1, Cl 8
|
NH
|
