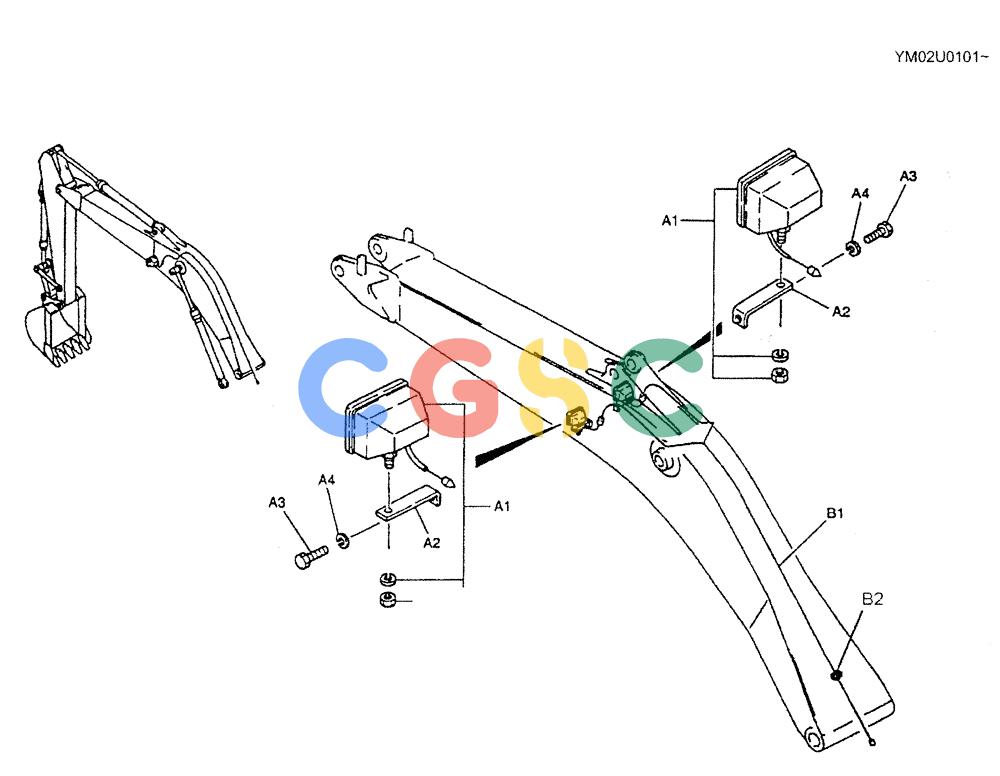

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (03-006) - BOOM LIGHT INSTALLATION Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
867 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN80E00026F1 | [1] | LIGHT | KOBLIGHT INSTAL, BOOM |
| A1. | 2456R442F1 | [2] | LIGHT | KOBWORK,See C.P.M |
| A2. | 2416T13056 | [2] | BRACKET | KOB |
| A3. | ZS18C10020 | [2] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| A4. | 2418R323D11 | [2] | WASHER | KOBStar -- ID 10 x OD 18 x Th 0.9mm |
| . . | YM15E00001F1 | [1] | WIRE HARNESS | KOB |
| E1. | YM15E01001P1 | [1] | WIRE HARNESS | KOB |
| E2. | PY01P01043D7 | [1] | CABLE TIE,4.80mm W x 445mm L | KOBWire Ties -- 445mm Long |
